Festo, 300kg 400 mm, 8022580 800mm/s

RS庫存編號:: 202-9664
製造零件編號:: ESBF-BS-40-400-10P
製造商:: Festo

小計（1 件）*

TWD48,799.00

(不含稅)

TWD51,238.95

訂單超過 $1,300.00 免費送貨

製造商存貨

準備從 2026年5月26日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD48,799.00

* 參考價格

RS庫存編號:: 202-9664
製造零件編號:: ESBF-BS-40-400-10P
製造商:: Festo

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Festo
	Product Type	Electrical Linear Actuator
	Maximum Load	300kg
	Stroke Length	400mm
	Maximum Speed	800mm/s
	Series	ESBF
	Motor Technology	Servo Motor, Stepper Motor
	Maximum Force	130N
	Duty Cycle	100%
	IP Rating	IP40
	Overall Length Closed	40mm
	Spindle Type	Ball Screw
	Piston Rod Thread	M12 x 1.25
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS

	選取全部
	品牌 Festo
	Product Type Electrical Linear Actuator
	Maximum Load 300kg
	Stroke Length 400mm
	Maximum Speed 800mm/s
	Series ESBF
	Motor Technology Servo Motor, Stepper Motor
	Maximum Force 130N
	Duty Cycle 100%
	IP Rating IP40
	Overall Length Closed 40mm
	Spindle Type Ball Screw
	Piston Rod Thread M12 x 1.25
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS

COO (Country of Origin):: DE

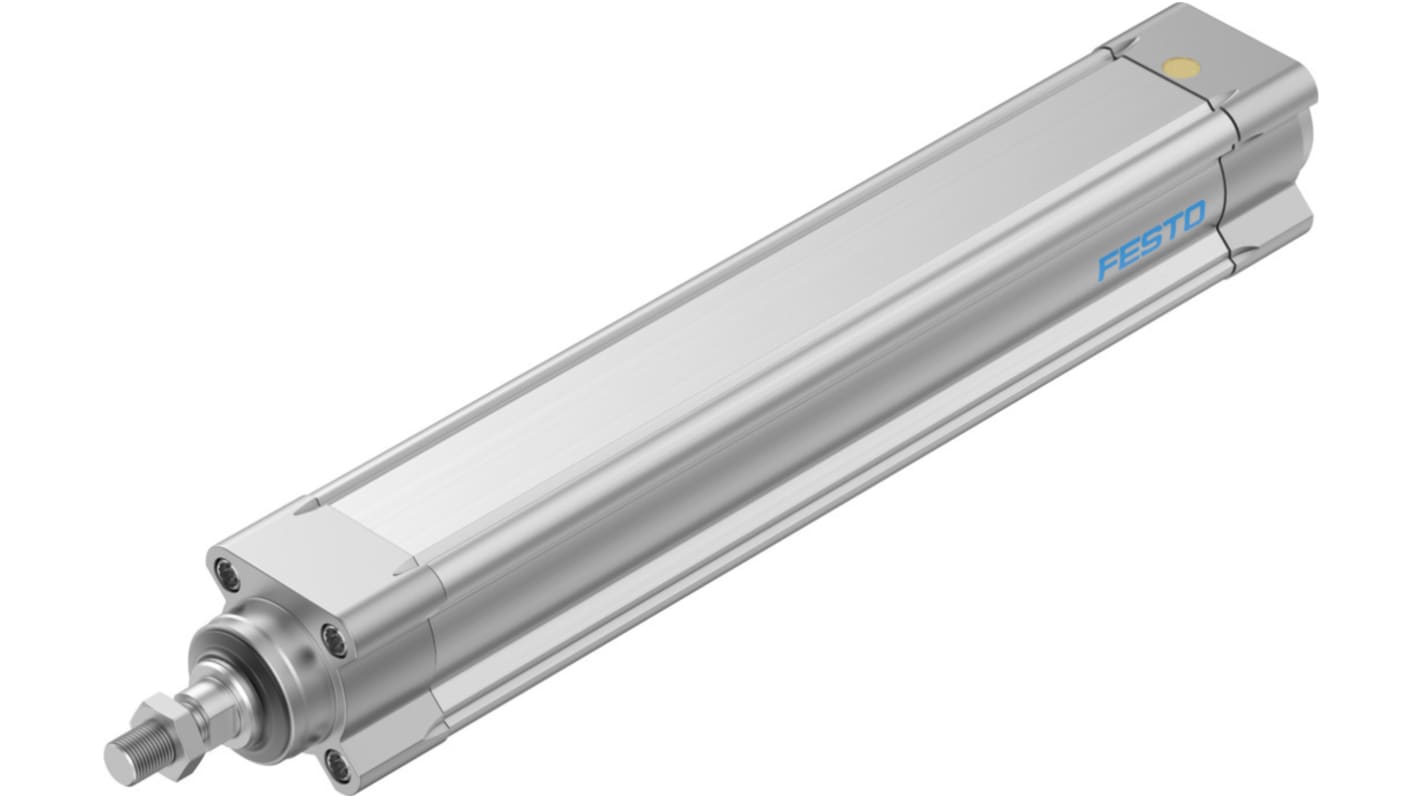

Festo ESBF Series Electric Linear Actuator, IP40, 100% Duty Cycle - ESBF-BS-40-400-10P, Numeric Part Number:8022580

This electric linear actuator offers solutions for precise motion control and is optimised for automation systems. It features robust components that deliver high performance and functionality in industrial applications.

Features & Benefits

• Compact design allows for multiple installation positions

• Maximum speed of 0.83m/s improves operational efficiency

• Integrated proximity switch for effective position detection

• Accuracy of ±0.01mm ensures consistent performance

• Duty cycle of 100% enables continuous operation

• Durable materials provide moderate corrosion resistance

Applications

• Precise positioning in automation systems

• Robotics and material handling

• Linear motion tasks in manufacturing processes

• Equipment in food industry

• Machinery requiring dependable linear actuation

What type of motor is compatible with this actuator?

It can operate with both stepper motors and servo motors for increased versatility.

How does ambient temperature affect performance?

This actuator functions effectively within a temperature range of 0 to 60°C.

What is the maximum load capacity for vertical applications?

It supports a reference value effective load of 300kg in vertical positions.

Is any special maintenance required for optimal performance?

Regular checks for alignment and wear can help maintain functionality.

Can it be used in humid environments?

Yes, it accommodates a relative humidity of 0 to 95% without issues.
