Festo, 10kg 100 mm, 562227 400mm/s
- RS庫存編號:
- 202-9657
- 製造零件編號:
- EGSL-BS-55-100-5P
- 製造商:
- Festo
小計（1 件）*
TWD72,248.00
(不含稅)
TWD75,860.40
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年10月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD72,248.00 |
* 參考價格
- RS庫存編號:
- 202-9657
- 製造零件編號:
- EGSL-BS-55-100-5P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 100mm | |
| Maximum Load | 10kg | |
| Maximum Speed | 400mm/s | |
| Series | EGSL | |
| Motor Technology | Stepper Motor, Servo Motor | |
| Duty Cycle | 100% | |
| Maximum Force | 1047N | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw | |
| Overall Length Closed | 55mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Model Number | 562227 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 100mm | ||
Maximum Load 10kg | ||
Maximum Speed 400mm/s | ||
Series EGSL | ||
Motor Technology Stepper Motor, Servo Motor | ||
Duty Cycle 100% | ||
Maximum Force 1047N | ||
IP Rating IP40 | ||
Spindle Type Ball Screw | ||
Overall Length Closed 55mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Model Number 562227 | ||
- COO (Country of Origin):
- DE

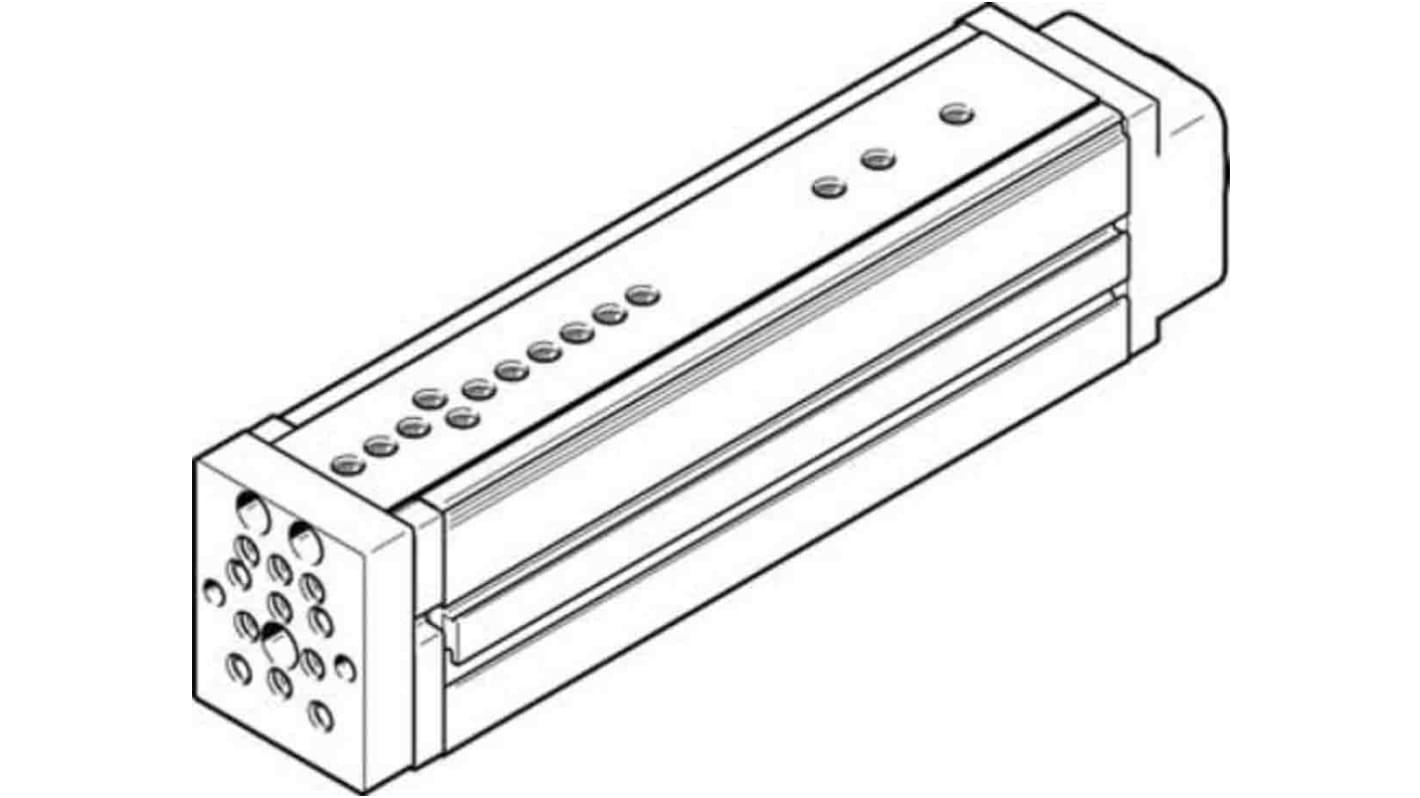

Festo EGSL Series Electric Linear Actuator, IP40, 100% Duty Cycle - EGSL-BS-55-100-5P, Numeric Part Number:562227
This electric linear actuator is designed to enhance automation tasks in various industrial applications. Its integrated rod linear design effectively transforms rotary motion into linear movement, making it essential for projects that require precise positioning and control. The actuator's robust features ensure efficiency in operation, catering to the electronics, electrical, and mechanical sectors.
Features & Benefits
• Working stroke of 100mm for versatile applications
• High precision with a repetition accuracy of ±0.015mm
• Ball screw drive design for smooth operation
• Accommodates maximum loads of 10kg both vertically and horizontally
• Compact design with integrated cooling capability
• Proximity switch for accurate position detection
Applications
• Utilised in robotics for precise movements
• Suitable for conveyor systems requiring accurate positioning
• Ideal for programmable equipment needing controlled actuation
• Employed in automated assembly lines for efficient production processes
• Utilised in testing equipment for reliable measurements
What is the maximum ambient temperature for operation?
The maximum ambient temperature for proper functioning is 60°C.
How should I mount this actuator for optimal performance?
It can be mounted via female thread or centring sleeve as needed.
What type of motors can be used with this actuator?
It is compatible with both stepper and servo motors.
What is the recommended maintenance approach?
This unit is designed for lifetime lubrication, minimising maintenance needs.
How does the actuator ensure effective load handling?
It features a reference value effective load of 10kg for consistent performance.
