Festo Electrical Linear Actuator 75 mm 20N 8162071 133mm/s
- RS庫存編號:
- 194-729
- 製造零件編號:
- EGSC-BS-KF-25-75-2P
- 製造商:
- Festo
小計（1 件）*
TWD24,111.00
(不含稅)
TWD25,316.55
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年9月21日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD24,111.00 |
* 參考價格
- RS庫存編號:
- 194-729
- 製造零件編號:
- EGSC-BS-KF-25-75-2P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Maximum Load | 20N | |
| Stroke Length | 75mm | |
| Maximum Speed | 133mm/s | |
| Series | EGSC | |
| Motor Technology | Stepper Motor, Servo Motor | |
| Duty Cycle | 100% | |
| Maximum Force | 669N | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw Drive | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Weight | 315g | |
| Standards/Approvals | VDMA464, ISO 146441, RoHS | |
| Model Number | 8162071 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Maximum Load 20N | ||
Stroke Length 75mm | ||
Maximum Speed 133mm/s | ||
Series EGSC | ||
Motor Technology Stepper Motor, Servo Motor | ||
Duty Cycle 100% | ||
Maximum Force 669N | ||
IP Rating IP40 | ||
Spindle Type Ball Screw Drive | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Weight 315g | ||
Standards/Approvals VDMA464, ISO 146441, RoHS | ||
Model Number 8162071 | ||
- COO (Country of Origin):
- CN

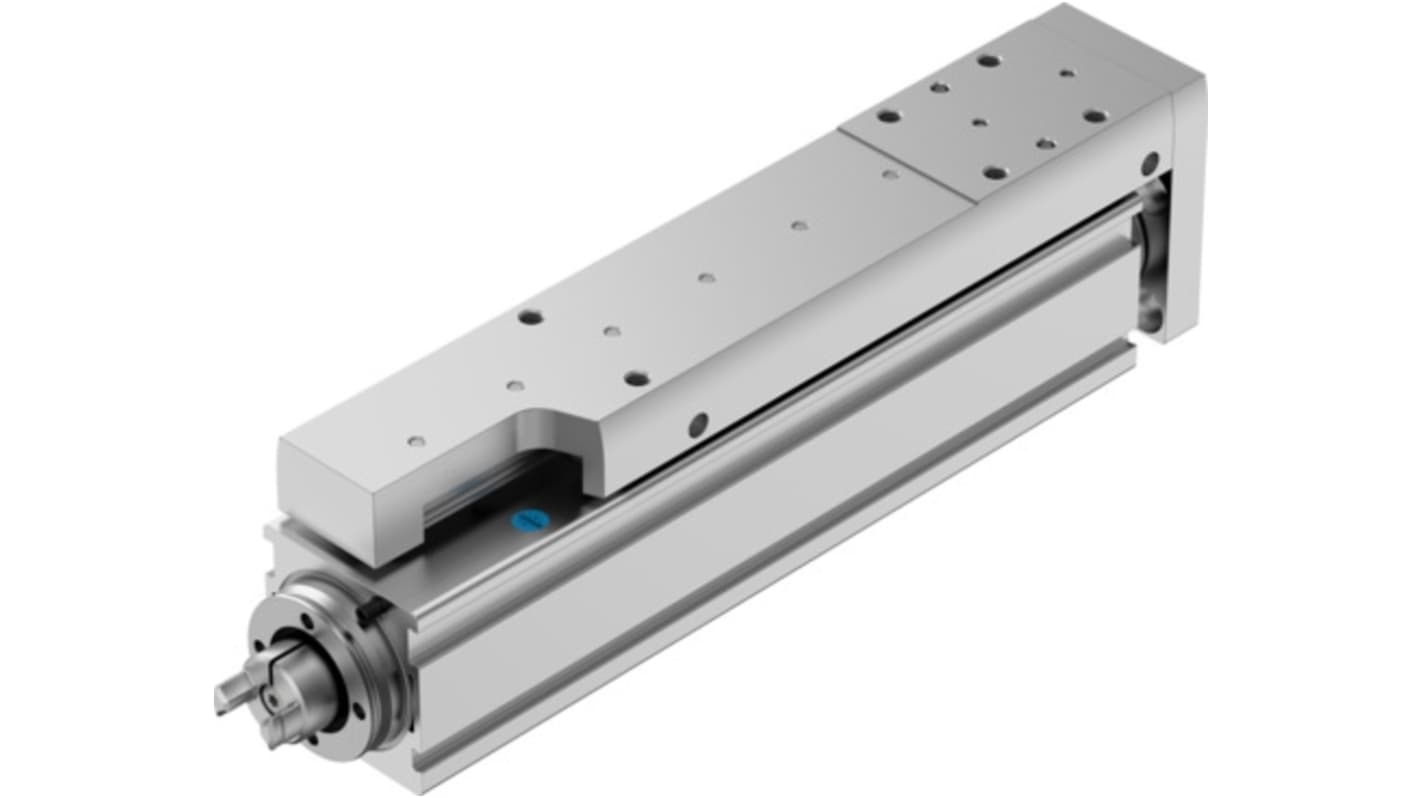

Festo EGSC Series Electrical Linear Actuator, 75mm Stroke Length, 669N Maximum Force - EGSC-BS-KF-25-75-2P, Numeric Part Number:8162071
This electrical linear actuator converts rotary motion into controlled linear travel for use in automated and electronic systems, delivering Compact axial movement for positioning tasks within industrial environments. It is suited to continuous operation and cleanroom settings where precision and controlled actuation are required.
Features and Benefits:
• 100% duty cycle enables continuous operation without downtime
• Ball screw drive delivers high axial stiffness and positioning accuracy
• 669N Peak force supports demanding push/pull tasks
• 133mm/s TOP speed permits Rapid linear transfers
• Compatible with stepper or servo motors for flexible control
• IP40 enclosure offers Basic protection in controlled interiors
• Ball screw drive delivers high axial stiffness and positioning accuracy
• 669N Peak force supports demanding push/pull tasks
• 133mm/s TOP speed permits Rapid linear transfers
• Compatible with stepper or servo motors for flexible control
• IP40 enclosure offers Basic protection in controlled interiors
Applications
• Suitable for pick-and-place mechanisms in assembly lines
• Ideal for precision positioning in laboratory automation
• Used with conveyor indexing for Rapid product sorting
• Can be used for small-format valve actuation in process equipment
• Suitable for OEM integration where lightweight actuation is required
• Ideal for precision positioning in laboratory automation
• Used with conveyor indexing for Rapid product sorting
• Can be used for small-format valve actuation in process equipment
• Suitable for OEM integration where lightweight actuation is required
What temperature range can it operate in reliably?
It is specified to function between 0°C and 50°C, ensuring predictable motor and drive behaviour within that span.
How Compact is the unit for integration into constrained designs?
The device offers a 75mm travel range while weighing 315g, enabling low-mass installations that minimise added inertia.
Which standards make it appropriate for controlled environments?
It meets ISO 14644 requirements and aligns with VDMA 464 guidelines for applications in clean or regulated spaces.
What load conditions should be observed for continuous use?
Continuous loads should remain below the maximum load threshold of 20N to avoid sustained overload while utilising available Peak force for short durations.
