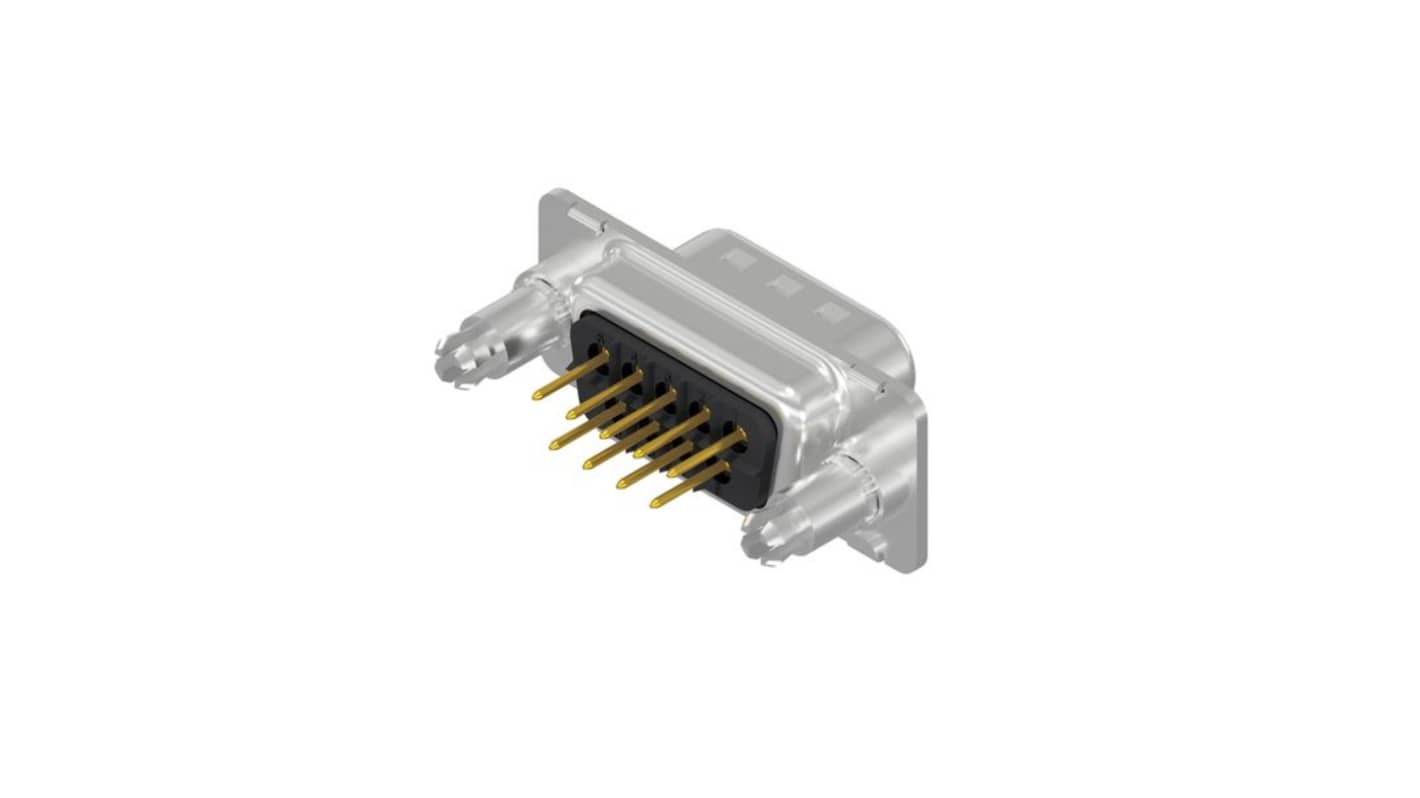

CONEC 163A161 9 Way Straight Threaded Mount D-Sub Connector, with Plug Male
- RS庫存編號:
- 300-286
- 製造零件編號:
- 163A16159X
- 製造商:
- CONEC
可享批量折扣
查看批量定價選項小計（1 件）*
TWD157.00
(不含稅)
TWD164.85
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 169 件準備從其他地點送貨
- 加上 200 件從 2026年11月12日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD157.00 |
| 10 + | TWD147.00 |
* 參考價格
- RS庫存編號:
- 300-286
- 製造零件編號:
- 163A16159X
- 製造商:
- CONEC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | CONEC | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Straight | |
| Current | 7.5A | |
| Mount Type | Threaded Mount | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| Mounting Hardware | Plug | |
| D-Sub Shell Size | 1 | |
| Housing Material | Steel | |
| Voltage | 125V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder Pin | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | Directive 2002/95/EC RoHS compliant | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Series | 163A161 | |
| Contact Size | 9 | |
| 選取全部 | ||
|---|---|---|
品牌 CONEC | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Straight | ||
Current 7.5A | ||
Mount Type Threaded Mount | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
Mounting Hardware Plug | ||
D-Sub Shell Size 1 | ||
Housing Material Steel | ||
Voltage 125V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder Pin | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals Directive 2002/95/EC RoHS compliant | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Series 163A161 | ||
Contact Size 9 | ||
豁免
The CONEC D-SUB Male 9-position solder pin straight with threaded spacer clip. The contacts are made of copper alloy with different plating options: A for gold flash over nickel (preferred type), B for 20μin hard gold over a minimum of 50μin nickel, C for 30μin hard gold over a minimum of 50μin nickel, and J for 50μin hard gold over a minimum of 50μin nickel. The threaded spacer clips are made of copper alloy, with a minimum of 200μin tin over 80μin nickel. The PCB thickness is 1.6mm.
Metal shells of Steel minimum. 315μin tin over 40 to 80μin nickel
Black insulators of PBT GF UL 94 V-0
