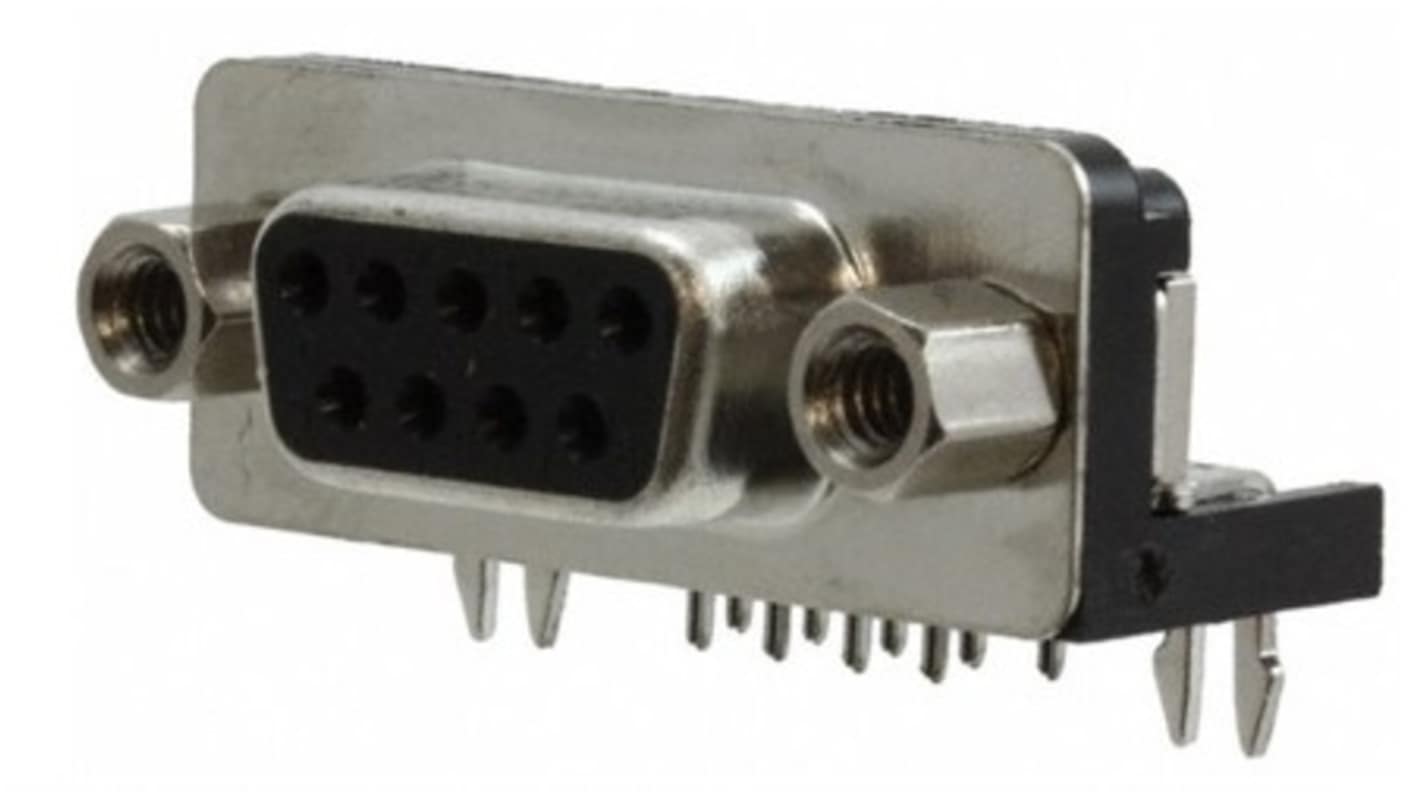

CONEC DLS1XS5 9 Way Straight Threaded D-Sub Connector Female
- RS庫存編號:
- 300-266
- 製造零件編號:
- DLS1XS5AK40X
- 製造商:
- CONEC
可享批量折扣
查看批量定價選項小計（1 件）*
TWD52.00
(不含稅)
TWD54.60
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 119 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD52.00 |
| 10 - 24 | TWD49.00 |
| 25 + | TWD43.00 |
* 參考價格
- RS庫存編號:
- 300-266
- 製造零件編號:
- DLS1XS5AK40X
- 製造商:
- CONEC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | CONEC | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Straight | |
| Mount Type | Threaded | |
| Connector Gender | Female | |
| Voltage | 1000V | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | Directive 2002/95/EC RoHS compliant | |
| Series | DLS1XS5 | |
| Contact Material | Copper Alloy | |
| 選取全部 | ||
|---|---|---|
品牌 CONEC | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Straight | ||
Mount Type Threaded | ||
Connector Gender Female | ||
Voltage 1000V | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals Directive 2002/95/EC RoHS compliant | ||
Series DLS1XS5 | ||
Contact Material Copper Alloy | ||
豁免
- COO (Country of Origin):
- TW
The CONEC D-Sub female 90° connector features an insulator made of thermal plastic UL94V-0, contacts made from copper alloy, and a steel shell with nickel plating. The rivet and board lock are made from copper alloy. The contact plating includes a 50μin nickel under plate, with gold flash on the contact area and solder tails. It has an operation voltage of 250 VAC maximum, a current rating of 3A, and a contact resistance of 15 mOhm.
Insulation resistance 3000 MOhm minimum at 500 VDC
Dielectric withstanding voltage 1000 VAC/minute
Operating temperature -55°C to +105°C
