Renesas Electronics 2305-1DCGI8 Clock Buffer 8-Pin TSSOP
- RS庫存編號:
- 235-8694
- 製造零件編號:
- 2305-1DCGI8
- 製造商:
- Renesas Electronics

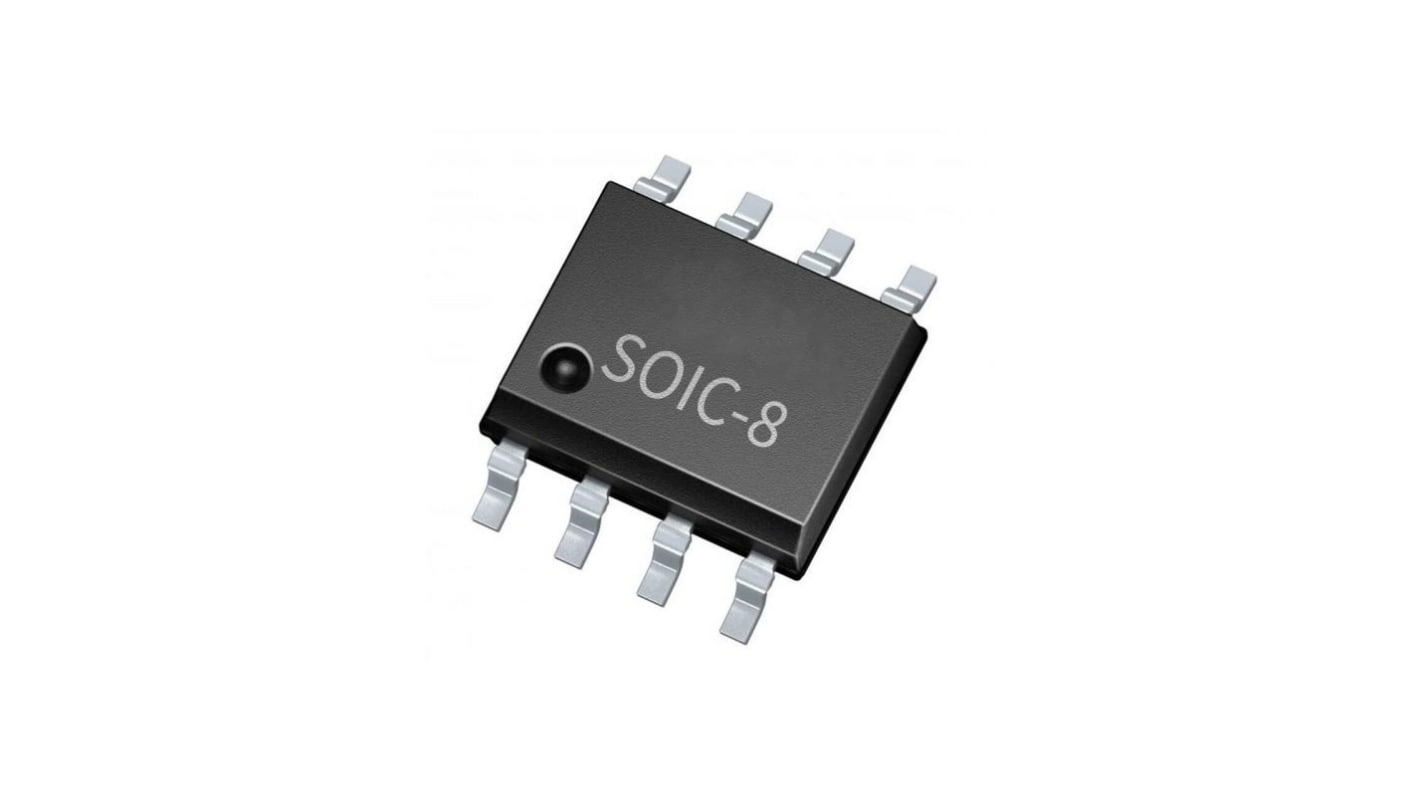

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 3000 件）*
TWD74,100.00
(不含稅)
TWD77,820.00
(含稅)
添加 3000 件 件可免費送貨
暫時缺貨
- 從 2026年5月22日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3000 - 12000 | TWD24.70 | TWD74,100.00 |
| 15000 + | TWD24.20 | TWD72,600.00 |
* 參考價格
- RS庫存編號:
- 235-8694
- 製造零件編號:
- 2305-1DCGI8
- 製造商:
- Renesas Electronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Maximum Input Frequency | 133MHz | |
| Maximum Propagation Delay Time | 350ps | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 8 | |
| Number of Outputs | 5 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 4.9mm | |
| Height | 1.5mm | |
| Width | 3.9 mm | |
| Series | IDT2305 Unitless | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Renesas Electronics | ||
Product Type Clock Buffer | ||
Maximum Input Frequency 133MHz | ||
Maximum Propagation Delay Time 350ps | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 8 | ||
Number of Outputs 5 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 4.9mm | ||
Height 1.5mm | ||
Width 3.9 mm | ||
Series IDT2305 Unitless | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Renesas Electronics high speed phase lock loop clock buffer, designed to address high speed clock distribution applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz.The IDT2305 is an eight pin version of the IDT2309. IDT2305 accepts one reference input, and drives out five low skew clocks.
Phase lock loop clock distribution
Distributes one clock input to one bank of five outputs
Zero input output delay
No external rc network required
Available in soic and tssop packages
