Phoenix Contact 1005957 24V dc WiFi Module Ethernet
- RS庫存編號:
- 248-2241
- 製造零件編號:
- 1005957
- 製造商:
- Phoenix Contact
查看所有Wi-Fi Modules
當前暫無庫存，可於28/12/2023發貨，6 工作日送達。
單價（不含稅） 個
TWD16,235.00
(不含稅)
TWD17,046.75
(含稅)
| 單位 | Per unit |
| 1 + | TWD16,235.00 |
- RS庫存編號:
- 248-2241
- 製造零件編號:
- 1005957
- 製造商:
- Phoenix Contact
- COO (Country of Origin):
- SE
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- SE
產品詳細資訊

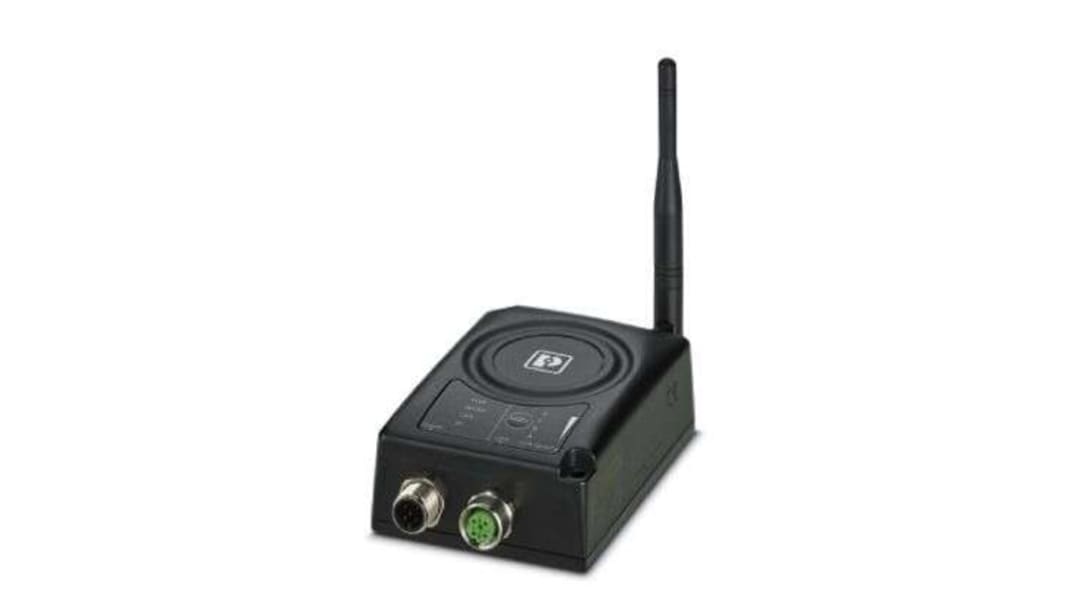

The Phoenix Contact combined Ethernet wireless module with Bluetooth and Wi-Fi has IP65 protection class. It has frequency band 2.4 GHz and 5 GHz with 16 dBm maximum transmission power.
Connection method M12 connectors (D-coded, female)
Interface 10/100 Mbps Ethernet
Number of interfaces 1
Connection method M12 connectors (D-coded, female)
Note on the connection method Auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Copper
Transmission length 100 m
Interface 10/100 Mbps Ethernet
Number of interfaces 1
Connection method M12 connectors (D-coded, female)
Note on the connection method Auto negotiation and autocrossing
Transmission speed 10/100 Mbps
Transmission physics Copper
Transmission length 100 m
規格
| 屬性 | 值 |
| Supported Security Standards | 802.11i-PSK, AES, TKIP, WPA-PSK |
| Supported Bus Interfaces | Ethernet |
| Supply Voltage | 24V dc |
| Dimensions | 67.8 x 92.7 x 33.2mm |
