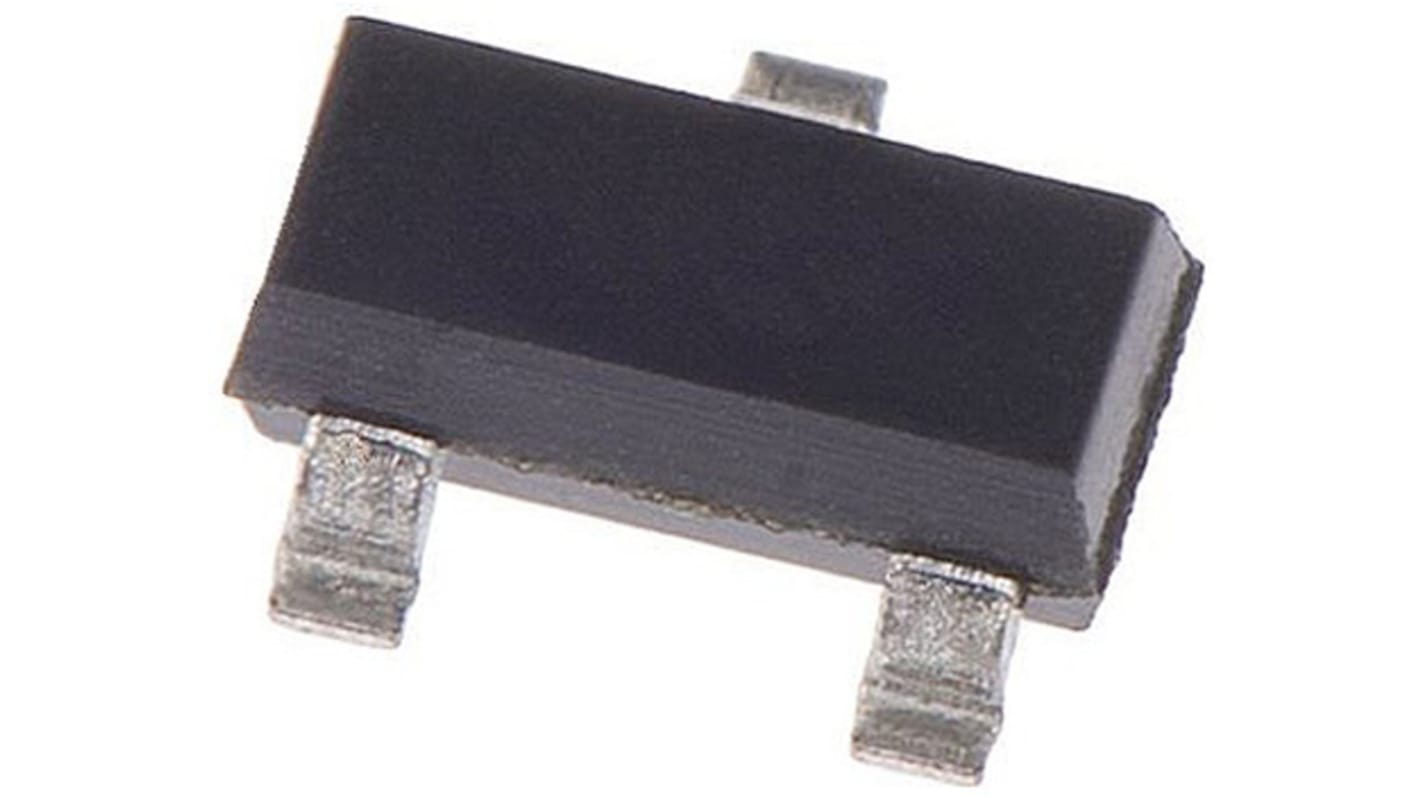

Microchip Fixed Series Precision Voltage Reference ±1 % 3-Pin SOT-23

Name: Microchip Fixed Series Precision Voltage Reference ±1 % 3-Pin SOT-23
Brand: Microchip
SKU: 889-5137
Availability: InStock

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

查看批量定價選項

小計（1 卷，共 3000 件）*

TWD77,400.00

(不含稅)

TWD81,270.00

(含稅)

庫存資訊目前無法存取 - 請稍後再回來查看

單位	每單位	每卷*
3000 - 12000	TWD25.80	TWD77,400.00
15000 +	TWD23.20	TWD69,600.00

* 參考價格

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	Precision Voltage Reference
	Reference Voltage	2.5V
	Package Type	SOT-23
	Reference Type	Fixed
	Initial Accuracy	±1 %
	Temperature Coefficient	27 ppm/°C
	Mount Type	Surface
	Topology	Series
	Output Current	20mA
	Maximum Input Voltage	7V
	Minimum Operating Temperature	-40°C
	Pin Count	3
	Maximum Operating Temperature	85°C
	Line Regulation	350 μV/V
	Load Regulation	1.3 mV/mA
	Series	MCP1525T
	Height	950μm
	Standards/Approvals	No
	Length	2.9mm
	Output Type	Fixed
	Automotive Standard	No
	Minimum Input Voltage	2.7V

	選取全部
	品牌 Microchip
	Product Type Precision Voltage Reference
	Reference Voltage 2.5V
	Package Type SOT-23
	Reference Type Fixed
	Initial Accuracy ±1 %
	Temperature Coefficient 27 ppm/°C
	Mount Type Surface
	Topology Series
	Output Current 20mA
	Maximum Input Voltage 7V
	Minimum Operating Temperature -40°C
	Pin Count 3
	Maximum Operating Temperature 85°C
	Line Regulation 350 μV/V
	Load Regulation 1.3 mV/mA
	Series MCP1525T
	Height 950μm
	Standards/Approvals No
	Length 2.9mm
	Output Type Fixed
	Automotive Standard No
	Minimum Input Voltage 2.7V
