Microchip MCP22350-1I/Q8X, USB Controller, 5 V, USB Type C, 3.3 V, 28-Pin VQFN

RS庫存編號:: 302-620
製造零件編號:: MCP22350-1I/Q8X
製造商:: Microchip

Microchip MCP22350-1I/Q8X, USB Controller, 5 V, USB Type C, 3.3 V, 28-Pin VQFN

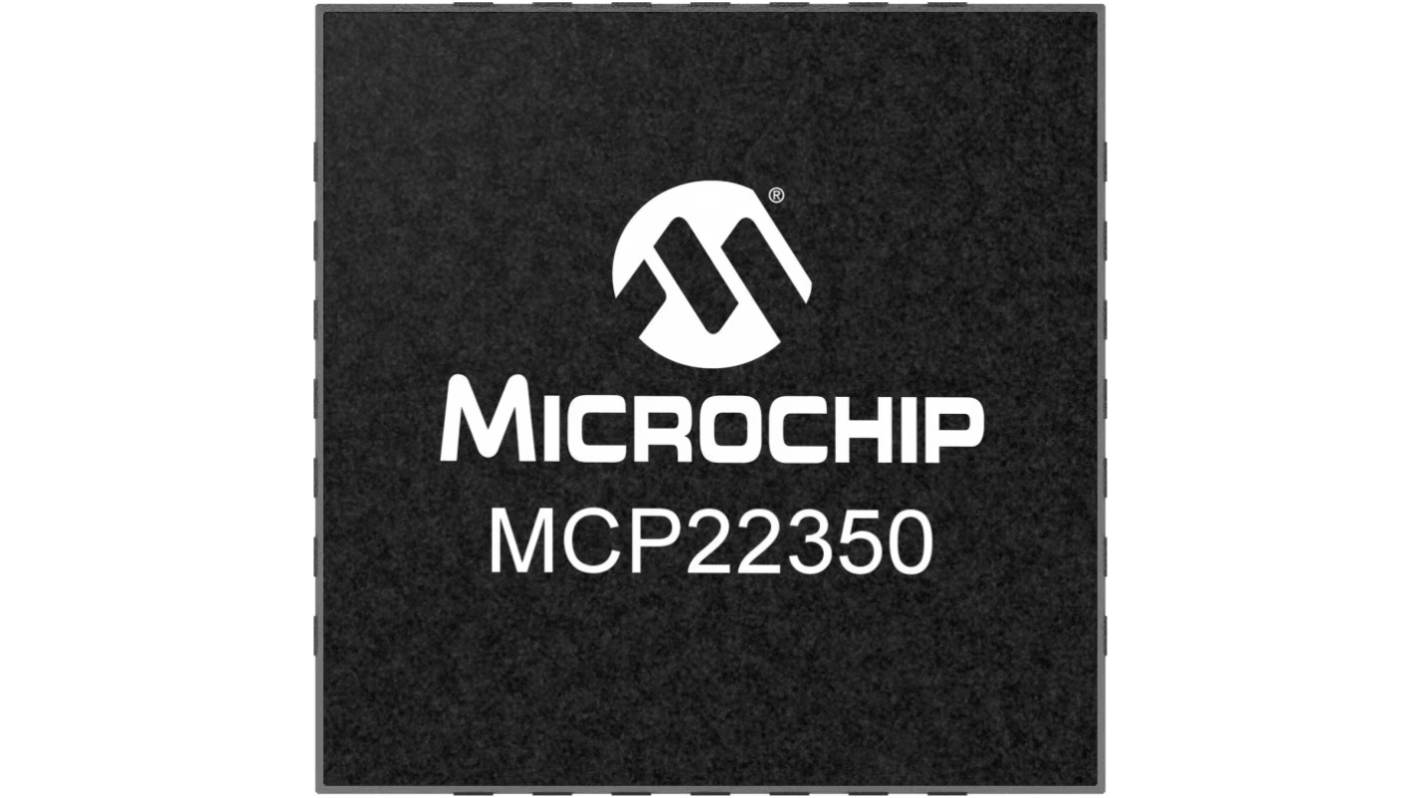

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 組，共 5 件）*

TWD286.00

(不含稅)

TWD300.30

訂單超過 $1,300.00 免費送貨

有庫存

490 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每膠帶*
5 - 45	TWD57.20	TWD286.00
50 - 95	TWD54.40	TWD272.00
100 +	TWD50.40	TWD252.00

* 參考價格

RS庫存編號:: 302-620
製造零件編號:: MCP22350-1I/Q8X
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Product Type	USB Controller
	USB Specification	3.1, USB Type C
	Sub Type	Companion PD Controller
	Power Supply Type	Dual
	ESD Protection	No
	Maximum Supply Voltage	5V
	Minimum Supply Voltage	3.3V
	Package Type	VQFN
	Pin Count	28
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB Type C
	Maximum Operating Temperature	85°C
	Height	0.9mm
	Width	4 mm
	Length	4mm
	Standards/Approvals	USB Power Delivery 3.1, DisplayPort, USB Type-C
	Series	MCP22350
	Supply Current	15mA
	Automotive Standard	No

	選取全部
	品牌 Microchip
	Product Type USB Controller
	USB Specification 3.1, USB Type C
	Sub Type Companion PD Controller
	Power Supply Type Dual
	ESD Protection No
	Maximum Supply Voltage 5V
	Minimum Supply Voltage 3.3V
	Package Type VQFN
	Pin Count 28
	Minimum Operating Temperature -40°C
	Supported Protocols USB Type C
	Maximum Operating Temperature 85°C
	Height 0.9mm
	Width 4 mm
	Length 4mm
	Standards/Approvals USB Power Delivery 3.1, DisplayPort, USB Type-C
	Series MCP22350
	Supply Current 15mA
	Automotive Standard No

Datasheet - MCP22350-1I/Q8X

The Microchip Small Form Factor USB Type-C Power Delivery (PD) Port Controller designed to adhere to the USB Type-C Cable and Connector Specification and USB Power Delivery 3.1 Specification. It provides cable plug orientation and detection for a USB Type-C receptacle and implements baseband communication with a partner USB Type-C device via the integrated USB Power Delivery 3.1 MAC. It is designed to function as a Companion Power Delivery Controller to an external Microchip MCU/SoC using the integrated SPI interface.

SPI Interface for CPU or SoC Communication

USB Type C Alternate Mode Support

Dual Role Port and Fast Role Swap Support with DRP offload mode

Industrial Temperature Support

8 Configurable General Purpose Input Output Pins

No Dead Battery Support

Standard packaging
