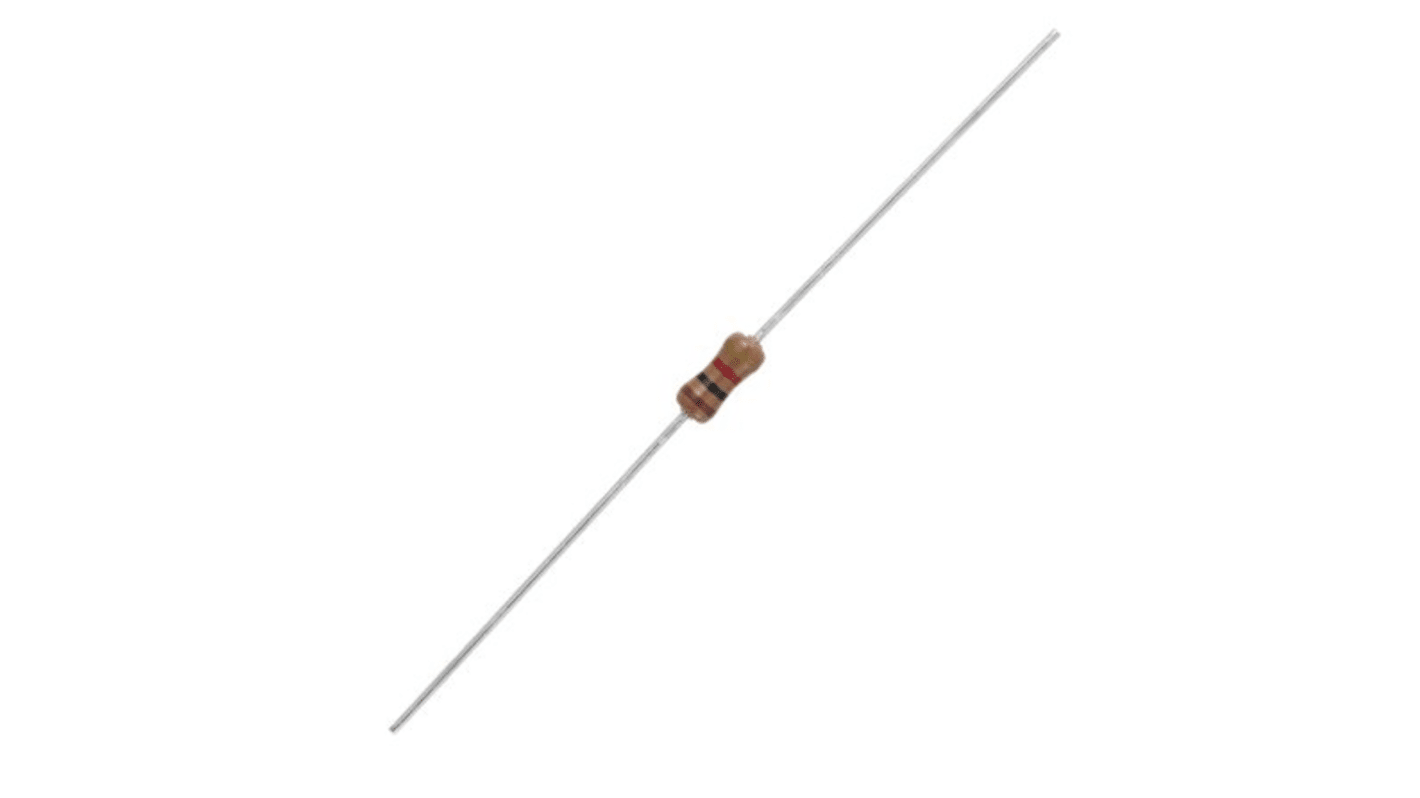

    KOA 5.6kΩ Carbon Film Resistor 0.5W ±5% CFS1/2CT52A562J

    RS庫存編號:
    124-2780
    製造零件編號:
    CFS1/2CT52A562J
    製造商:
    KOA
    KOA
    查看所有Through Hole Resistors
    150 現貨庫存,可於4工作日發貨。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個 (以毎袋:50)

    TWD3.10

    (不含稅)

    TWD3.26

    (含稅)

    單位Per unitPer Bag*
    50 - 450TWD3.10TWD155.00
    500 - 1950TWD3.00TWD150.00
    2000 - 9950TWD2.90TWD145.00
    10000 +TWD2.80TWD140.00
    * 參考價格
    RS庫存編號:
    124-2780
    製造零件編號:
    CFS1/2CT52A562J
    製造商:
    KOA
    COO (Country of Origin):
    JP

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    JP

    產品詳細資訊

    Carbon Film Resistor, 0.5 W 5%, CFS1/2 Series


    The CF series from KOA is a range of through hole carbon resistors. A variety of resistance values are available and these carbon resistors feature lead free terminations. CF through hole resistors are ideal for use with automatic placement machines.

    CFS variants offer a compact and reduced body size when compared to the standard CF resistor. CFP variations feature a flame proof coating.



    A comprehensive range of high stability carbon film resistors qualified and tested to the requirements of IEC 115 and IEC 115-2. The ruggedised welded cap and lead method of manufacture provides a considerable strength and resistance to damage. The coating materials and the colour bands are epoxy resin and are highly resistant to solvents, abrasion and chipping. Improvements in materials and processing have allowed the rated power to be improved. Excellent stability against changes in load conditions or moisture levels, with a low noise level and high reliability make these carbon film resistors suitable for a wide range of applications. Rated at 70°C in free air mounted horizontally. Climatic category 55/155/56.


    規格

    屬性
    Resistance5.6kΩ
    Power Rating0.5W
    Tolerance±5%
    TechnologyCarbon Film
    SeriesCF
    Maximum Operating Temperature+155°C
    Temperature Coefficient-450 → +350ppm/°C
    Minimum Operating Temperature-55°C
