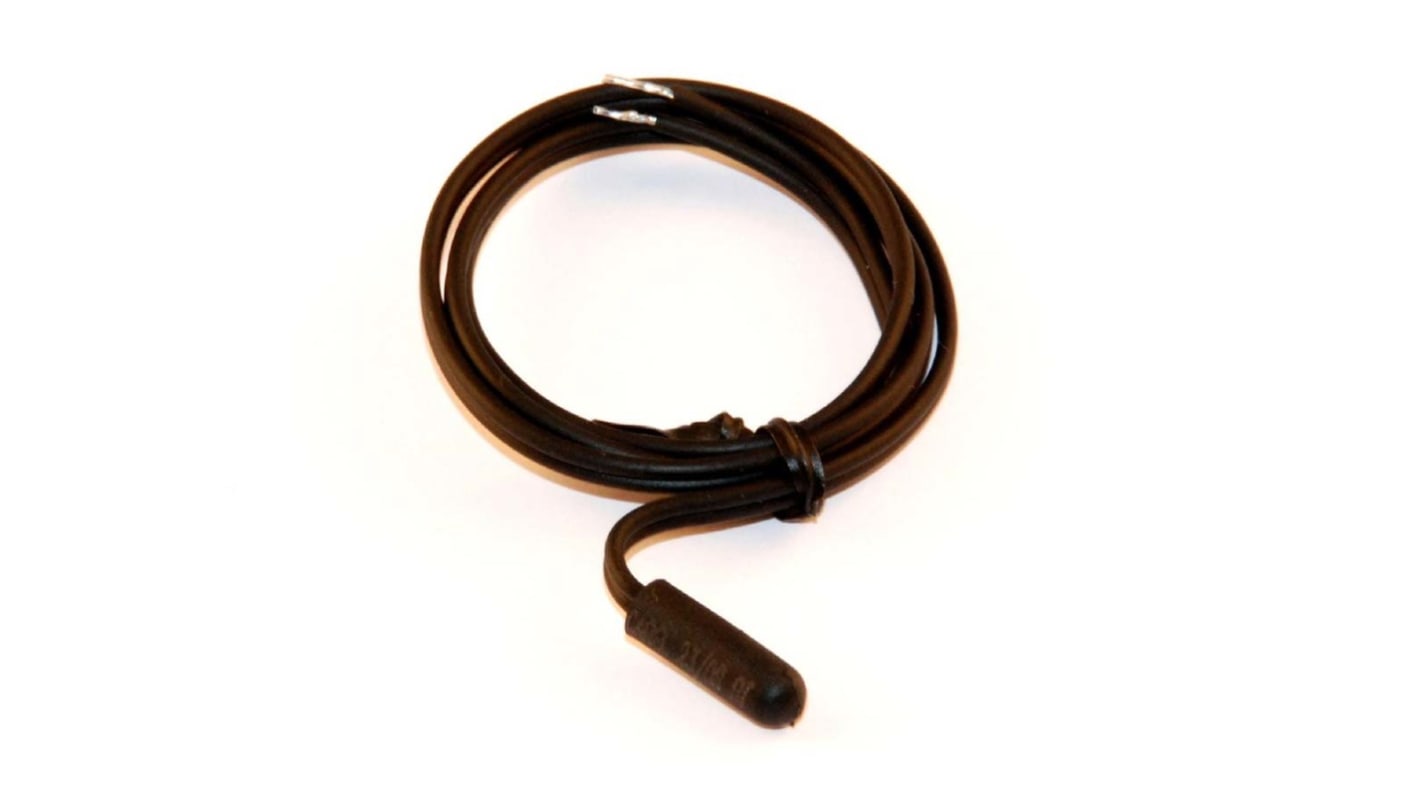

TE Connectivity Thermoplastic Elastomer NTC Thermistor, -35 °C Min, 105 °C Max, 5 mm Probe
- RS庫存編號:
- 187-9063
- Distrelec 貨號:
- 303-97-195
- 製造零件編號:
- GA10K3435STM010
- 製造商:
- TE Connectivity
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 袋，共 500 件）*
TWD180,550.00
(不含稅)
TWD189,580.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年7月27日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每袋* |
|---|---|---|
| 500 - 500 | TWD361.10 | TWD180,550.00 |
| 1000 + | TWD350.20 | TWD175,100.00 |
* 參考價格
- RS庫存編號:
- 187-9063
- Distrelec 貨號:
- 303-97-195
- 製造零件編號:
- GA10K3435STM010
- 製造商:
- TE Connectivity
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Product Type | Thermistor | |
| Thermistor Type | NTC | |
| Minimum Temperature Sensed | -35°C | |
| Maximum Temperature Sensed | 105°C | |
| Response Time | 15s | |
| Probe Diameter | 5mm | |
| Probe Length | 20mm | |
| Cable Length | 1m | |
| Terminal Type | Cable | |
| Accuracy | ±1 % | |
| Material | Thermoplastic Elastomer | |
| Standards/Approvals | RoHS, IP-67 | |
| 選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Product Type Thermistor | ||
Thermistor Type NTC | ||
Minimum Temperature Sensed -35°C | ||
Maximum Temperature Sensed 105°C | ||
Response Time 15s | ||
Probe Diameter 5mm | ||
Probe Length 20mm | ||
Cable Length 1m | ||
Terminal Type Cable | ||
Accuracy ±1 % | ||
Material Thermoplastic Elastomer | ||
Standards/Approvals RoHS, IP-67 | ||
This thermistor assembly consists of a NTC thermistor soldered to a single insulated TPE extension cable. The sensor and the extension cable are moulded together as one hot vulcanised unit to give a high degree of protection against water/moisture ingress.
TPE Overmolded Thermistor Probe for HVAC Applications
Probe head dimensions of Ø 5 x 20mm
24 AWG Zipcord cable
Ideal from ambient air sensing in building management
Applications, heater controls, air conditioning
Available in a variety of connector types
24AWG Zipcord TPE cable
Insulation Resistance 100MΩ @ 500VDC
Available in a variety of connector types
Temperature range -35ºC to +105ºC
APPLICATIONS
Building Management Applications
Heater Control
Air Conditioning
