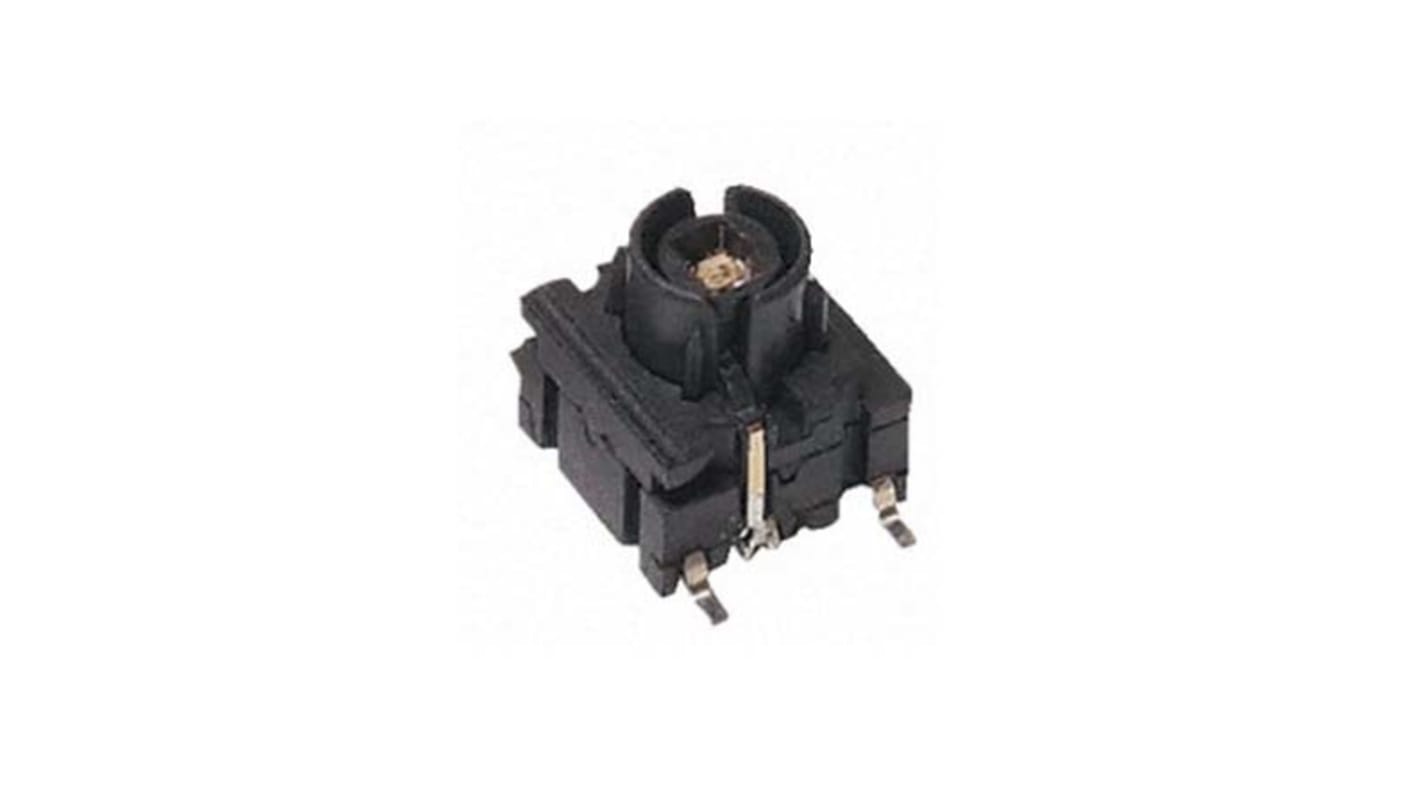

IP67 Green Push Button Tactile Switch, SPST 50 mA @ 24 V dc

Name: IP67 Green Push Button Tactile Switch, SPST 50 mA @ 24 V dc
Brand: MEC
SKU: 126-767
Price: 202.65 TWD
Availability: InStock

16 現貨庫存，可於6工作日發貨。

單價（不含稅）個

TWD193.00

(不含稅)

TWD202.65

(含稅)

單位	每單位
1 +	TWD193.00

屬性	值
Contact Configuration	SP-NO
Terminal Type	Surface Mount
Switch Operation	Momentary
Actuator Colour	Green
Actuator Type	Push Button
Length	14mm
Width	10.3mm
Dimensions	14 x 10.3mm
Illuminated	Yes
Contact Current Rating	50 mA @ 24 V dc
IP Rating	IP67
Operating Force	2.5 N
Height	10.4mm
Voltage Rating	24V dc
Contact Material	Gold, Silver
Operating Temperature Range	-40 → +125°C
Mechanical Life	10000000Operations
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+125°C
