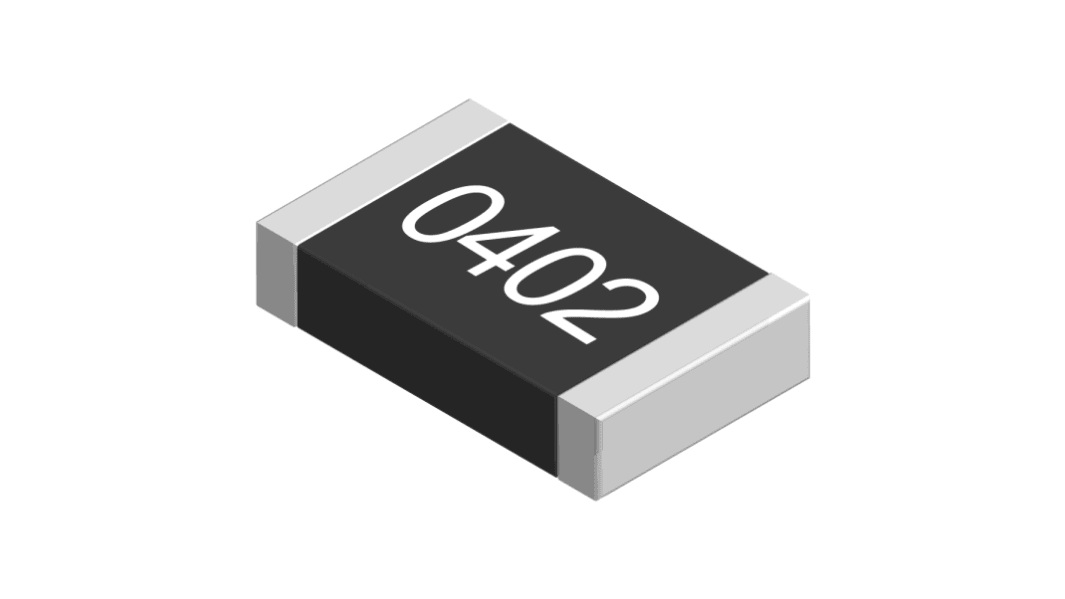

Susumu Co RG 22 kΩ, 0402 Thin Film Surface Mount Resistor ±0.1 % 0.125 W - RG1005P-223-B
- RS庫存編號:
- 134-6362
- 製造零件編號:
- RG1005P-223-B
- 製造商:
- Susumu Co
可享批量折扣
小計（1 袋，共 50 件）*
TWD860.00
(不含稅)
TWD903.00
(含稅)
訂單超過 $1,300.00 免費送貨
最後的 RS 庫存
- 最終 2,950 個，準備發貨
單位 | 每單位 | 每袋* |
|---|---|---|
| 50 - 150 | TWD17.20 | TWD860.00 |
| 200 - 450 | TWD16.70 | TWD835.00 |
| 500 + | TWD16.30 | TWD815.00 |
* 參考價格
- RS庫存編號:
- 134-6362
- 製造零件編號:
- RG1005P-223-B
- 製造商:
- Susumu Co
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Susumu Co | |
| Product Type | Surface Mount Resistor | |
| Resistance | 22kΩ | |
| Technology | Thin Film | |
| Package/Case | 0402 | |
| Tolerance | ±0.1 % | |
| Power Rating | 0.125W | |
| Temperature Coefficient | ±25 ppm/°C | |
| Series | RG | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| 選取全部 | ||
|---|---|---|
品牌 Susumu Co | ||
Product Type Surface Mount Resistor | ||
Resistance 22kΩ | ||
Technology Thin Film | ||
Package/Case 0402 | ||
Tolerance ±0.1 % | ||
Power Rating 0.125W | ||
Temperature Coefficient ±25 ppm/°C | ||
Series RG | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Susumu RG Series Ultra Precision Thin Film Chip Resistors
Susumu RG series Ultra precision 0.01% Tol, 2 ppm TCR thin film chip resistors are high reliability and have excellent stability at different environmental conditions. Thin film structure enabling low noise and anti-sulfur.High precision resistance tolerance: ±0.05%, very small TCR: ±5ppm/℃. These resistors have Less than ±0.1% drift after 10000 hors of reliability test.
Applications
Test & Measurement
Automotive electronics
Industrial measurement instrumentation, industrial machines
Various sensors, medical electronics
Optical & Telecommunication.
