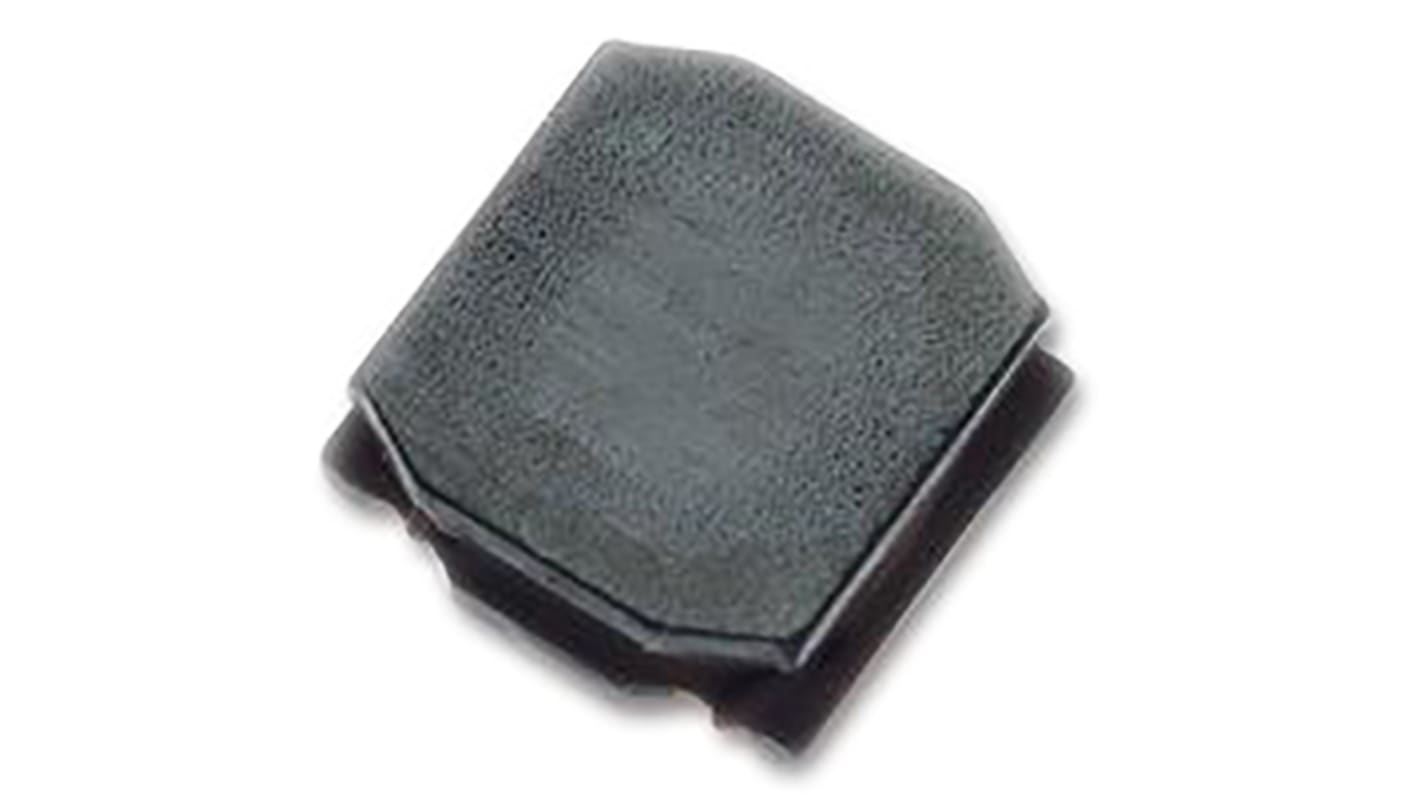

Murata, LQH, 5050 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 10 μH ±20 % 2 A Idc
- RS庫存編號:
- 871-2051
- 製造零件編號:
- LQH5BPN100MT0L
- 製造商:
- Murata
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 袋，共 10 件）*
TWD106.00
(不含稅)
TWD111.30
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 170 件從 2026年9月28日 起發貨
- 加上 1,040 件從 2026年10月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每袋* |
|---|---|---|
| 10 - 120 | TWD10.60 | TWD106.00 |
| 130 - 240 | TWD10.40 | TWD104.00 |
| 250 + | TWD10.10 | TWD101.00 |
* 參考價格
- RS庫存編號:
- 871-2051
- 製造零件編號:
- LQH5BPN100MT0L
- 製造商:
- Murata
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Murata | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 10μH | |
| Maximum DC Current | 2A | |
| Package/Case | 5050 | |
| Packaging | Embossed Tape | |
| Length | 5mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum DC Resistance | 106mΩ | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | LQH | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS | |
| Termination Style | Solder | |
| Depth | 5mm | |
| Height | 2mm | |
| Maximum Self Resonant Frequency | 25MHz | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| 選取全部 | ||
|---|---|---|
品牌 Murata | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 10μH | ||
Maximum DC Current 2A | ||
Package/Case 5050 | ||
Packaging Embossed Tape | ||
Length 5mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum DC Resistance 106mΩ | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Series LQH | ||
Core Material Ferrite | ||
Standards/Approvals RoHS | ||
Termination Style Solder | ||
Depth 5mm | ||
Height 2mm | ||
Maximum Self Resonant Frequency 25MHz | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
- COO (Country of Origin):
- MY
Murata 2020 LQH5BP Series SMD Shielded Inductor
LQH5BP Series are Wire-Wound SMD Shielded Inductors for Power Lines
SMT 2020 Inductor (Chokes)
