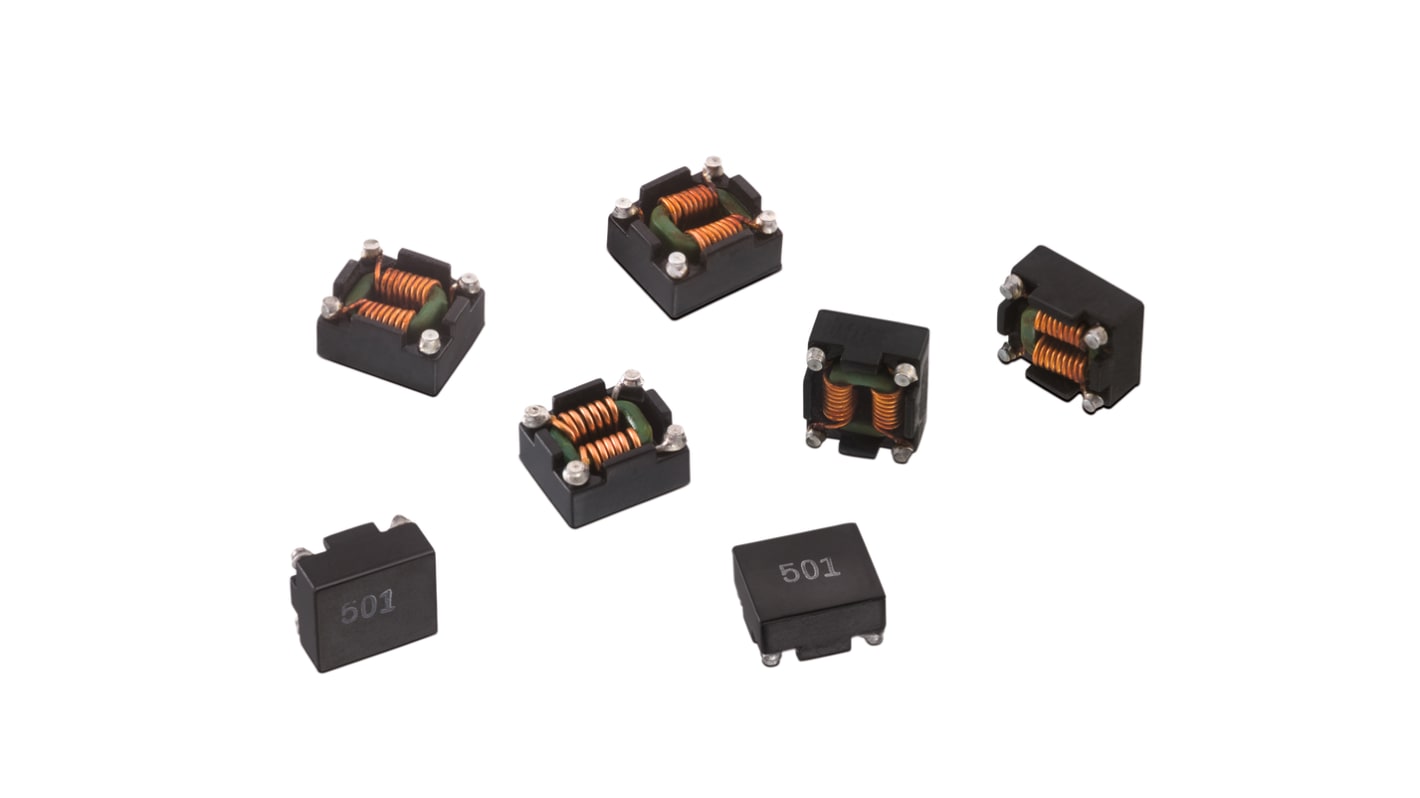

Wurth Elektronik, WE-SL5 HC, 744273 Unshielded Surface Mount Common Mode Line Filter with a Ferrite Core, 5 μH Sectional
- RS庫存編號:
- 737-3649
- Distrelec 貨號:
- 301-88-189
- 製造零件編號:
- 744273501
- 製造商:
- Wurth Elektronik
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
TWD116.00
(不含稅)
TWD121.80
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 298 件準備從其他地點送貨
- 加上 6,167 件從 2026年10月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 249 | TWD116.00 |
| 250 - 499 | TWD113.00 |
| 500 + | TWD111.00 |
* 參考價格
- RS庫存編號:
- 737-3649
- Distrelec 貨號:
- 301-88-189
- 製造零件編號:
- 744273501
- 製造商:
- Wurth Elektronik
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Inductance | 5μH | |
| Product Type | Surface Mount Common Mode Line Filter | |
| Maximum DC Current | 5A | |
| Package/Case | 744273 | |
| Length | 9.5mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 5.5mΩ | |
| Pin Count | 4 | |
| Inductance Tolerance | ±25 % | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-SL5 HC | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 | |
| Height | 5.3mm | |
| Depth | 8.3mm | |
| Termination Style | Surface Mount | |
| Inductor Construction | Sectional Winding | |
| Moulded | No | |
| 選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Inductance 5μH | ||
Product Type Surface Mount Common Mode Line Filter | ||
Maximum DC Current 5A | ||
Package/Case 744273 | ||
Length 9.5mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 5.5mΩ | ||
Pin Count 4 | ||
Inductance Tolerance ±25 % | ||
Maximum Operating Temperature 125°C | ||
Series WE-SL5 HC | ||
Core Material Ferrite | ||
Standards/Approvals RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 | ||
Height 5.3mm | ||
Depth 8.3mm | ||
Termination Style Surface Mount | ||
Inductor Construction Sectional Winding | ||
Moulded No | ||
Wurth Elektronik WE-SL5 HC Series Surface Mount Common Mode Line Filter, 5μH Inductance, 5A Maximum DC Current - 744273501
This surface-mount common mode line filter is a Compact ferrite choke designed to suppress differential noise on paired conductors in high-current PCB assemblies. It operates across a wide temperature range and is supplied in tape-and-reel packaging for automated placement. The device is intended for applications requiring a sectional-wound, low-resistance solution that fits standard SMD assembly processes.
Features and Benefits:
• 5μH inductance reduces common-mode interference for cleaner signals
• 5A maximum DC current enables use in high-current circuits
• 5.5mΩ maximum DC resistance minimises power loss in lines
• Sectional winding lowers imbalance and improves suppression performance
• Rated to 125°C supports elevated operating temperature environments
• 5A maximum DC current enables use in high-current circuits
• 5.5mΩ maximum DC resistance minimises power loss in lines
• Sectional winding lowers imbalance and improves suppression performance
• Rated to 125°C supports elevated operating temperature environments
Applications
• Suitable for EMI suppression in power distribution lines
• Ideal for filtering in DC-DC converter input stages
• Used with high-current bus interfaces on Compact PCBs
• Can be used for common-mode noise control in industrial electronics
• Suitable for automated PCB assembly with tape-and-reel supply
• Ideal for filtering in DC-DC converter input stages
• Used with high-current bus interfaces on Compact PCBs
• Can be used for common-mode noise control in industrial electronics
• Suitable for automated PCB assembly with tape-and-reel supply
What termination style does it use for PCB mounting?
It uses a surface-mount termination style compatible with SMD soldering processes.
What core material contributes to its filtering behaviour?
The component employs a ferrite core to provide frequency-dependent impedance for noise attenuation.
How many electrical connections are provided and how is the winding arranged?
It has a four-pin configuration and utilises sectional winding construction.
What environmental approvals and material standards apply to the part?
It conforms to RoHS and REACH requirements and aligns with JEDEC JS709B and IEC 61249-2-21 standards.
How is the component packaged for manufacturing and what is its physical profile?
It is supplied in tape-and-reel packaging and measures 9.5mm length, 8.3mm depth, and 5.3mm height.
Approvals
UL 94V-0
