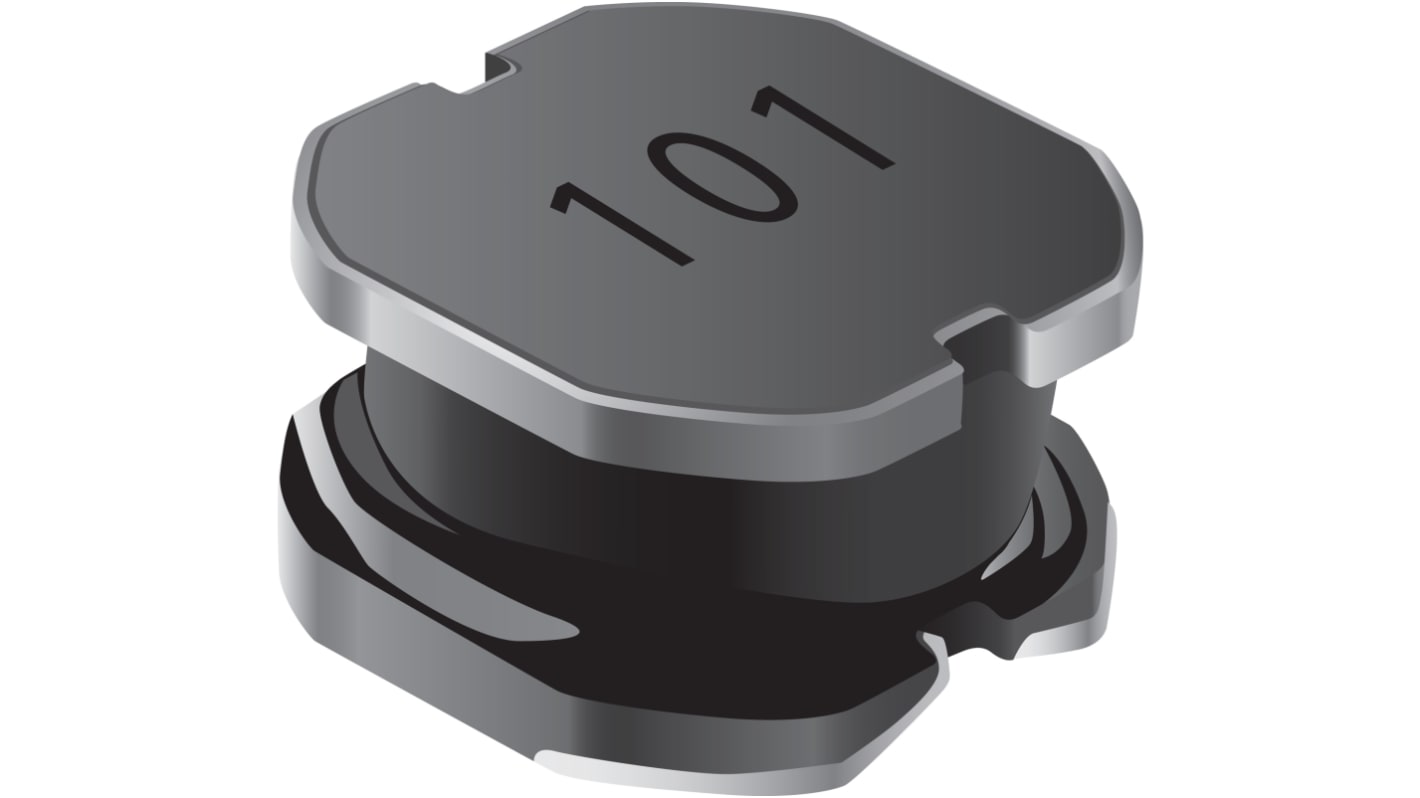

Bourns, SRN1060, 1060 Shielded Surface Mount Inductor with a Ferrite Core, 47 μH Semi Shielded 20 % 2.5 A Idc Q:16
- RS庫存編號:
- 223-1775
- 製造零件編號:
- SRN1060-470M
- 製造商:
- Bourns
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 卷，共 600 件）*
TWD8,520.00
(不含稅)
TWD8,946.00
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 600 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 600 - 2400 | TWD14.20 | TWD8,520.00 |
| 3000 + | TWD13.90 | TWD8,340.00 |
* 參考價格
- RS庫存編號:
- 223-1775
- 製造零件編號:
- SRN1060-470M
- 製造商:
- Bourns
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Bourns | |
| Inductance | 47μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 2.5A | |
| Package/Case | 1060 | |
| Length | 9.8mm | |
| Packaging | Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.11Ω | |
| Series | SRN1060 | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | 20 % | |
| Core Material | Ferrite | |
| Depth | 6mm | |
| Height | 6mm | |
| Termination Style | Solder | |
| Standards/Approvals | RoHS | |
| Maximum Self Resonant Frequency | 6MHz | |
| Minimum Quality Factor | 16 | |
| Moulded | Yes | |
| Inductor Construction | Semi Shielded | |
| 選取全部 | ||
|---|---|---|
品牌 Bourns | ||
Inductance 47μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 2.5A | ||
Package/Case 1060 | ||
Length 9.8mm | ||
Packaging Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.11Ω | ||
Series SRN1060 | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance 20 % | ||
Core Material Ferrite | ||
Depth 6mm | ||
Height 6mm | ||
Termination Style Solder | ||
Standards/Approvals RoHS | ||
Maximum Self Resonant Frequency 6MHz | ||
Minimum Quality Factor 16 | ||
Moulded Yes | ||
Inductor Construction Semi Shielded | ||
- COO (Country of Origin):
- CN
The Bourns Electronics inductor comes with shielded outlet and works with a maximum DC Current of 2.5A.
Ferrite core material
-40°C to 125°C operating temperature
