TDK, B82559_A016 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 2.2 μH ±10 % 34 A Idc
- RS庫存編號:
- 185-8184
- 製造零件編號:
- B82559B4222A016
- 製造商:
- TDK

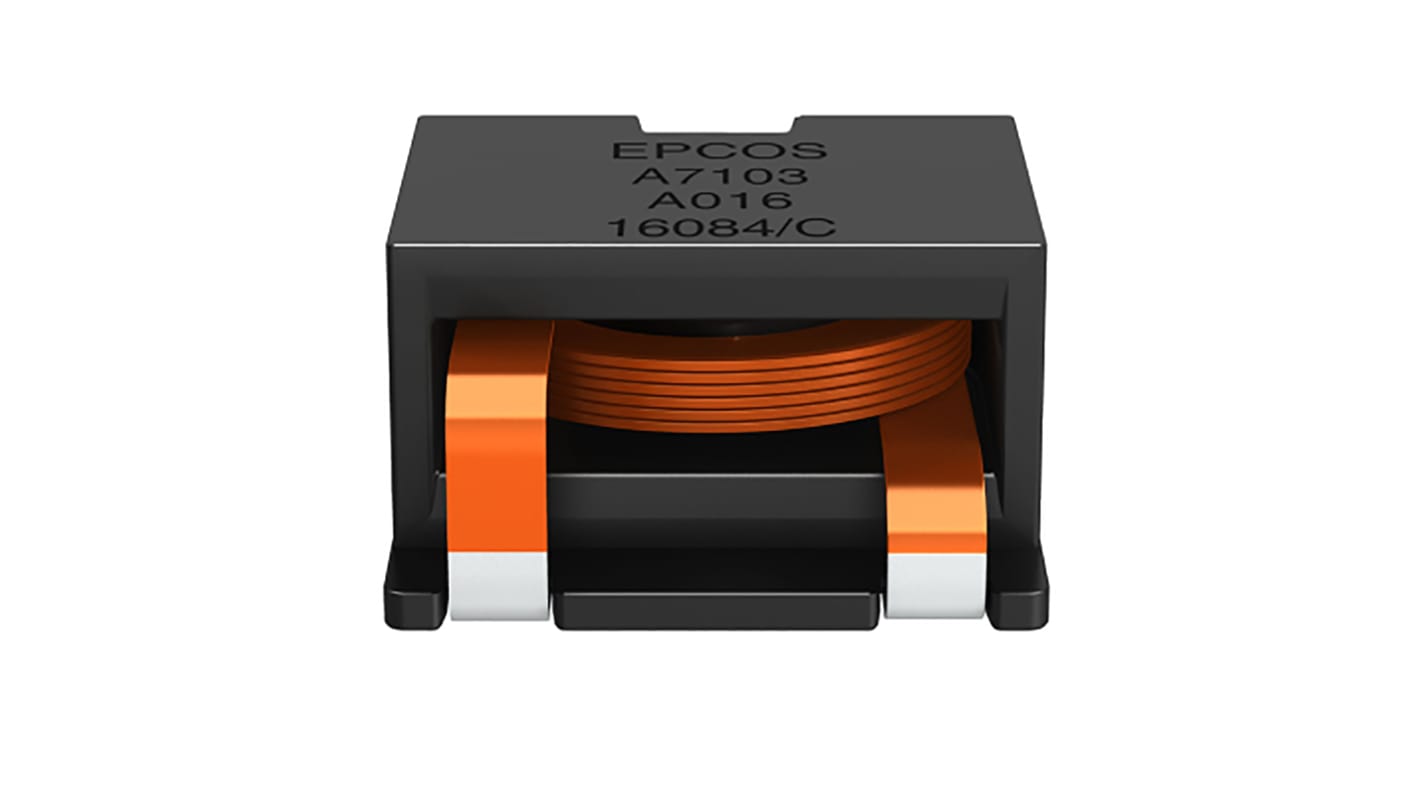

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 組，共 1 件）*
TWD87.00
(不含稅)
TWD91.35
(含稅)
訂單超過 $1,300.00 免費送貨
最後的 RS 庫存
- 最終 44 個，準備發貨
膠帶 | 每膠帶 |
|---|---|
| 1 - 47 | TWD87.00 |
| 48 - 94 | TWD85.00 |
| 95 + | TWD84.00 |
* 參考價格
- RS庫存編號:
- 185-8184
- 製造零件編號:
- B82559B4222A016
- 製造商:
- TDK
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TDK | |
| Inductance | 2.2μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 34A | |
| Package/Case | Surface Mount | |
| Length | 17.3mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 2.1mΩ | |
| Pin Count | 3 | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 150°C | |
| Series | B82559_A016 | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS | |
| Depth | 18.7mm | |
| Termination Style | Surface Mount | |
| Height | 9.25mm | |
| Maximum Self Resonant Frequency | 2MHz | |
| Inductor Construction | Shielded | |
| 選取全部 | ||
|---|---|---|
品牌 TDK | ||
Inductance 2.2μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 34A | ||
Package/Case Surface Mount | ||
Length 17.3mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 2.1mΩ | ||
Pin Count 3 | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 150°C | ||
Series B82559_A016 | ||
Core Material Ferrite | ||
Standards/Approvals RoHS | ||
Depth 18.7mm | ||
Termination Style Surface Mount | ||
Height 9.25mm | ||
Maximum Self Resonant Frequency 2MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
High rated current
Extremely low DC resistance
Very low profile and extremely small footprint
Suitable for pick-and-place processes
Applications
Energy storage chokes for
DC-DC converters
VRM modules
POL converters
Solar converters
