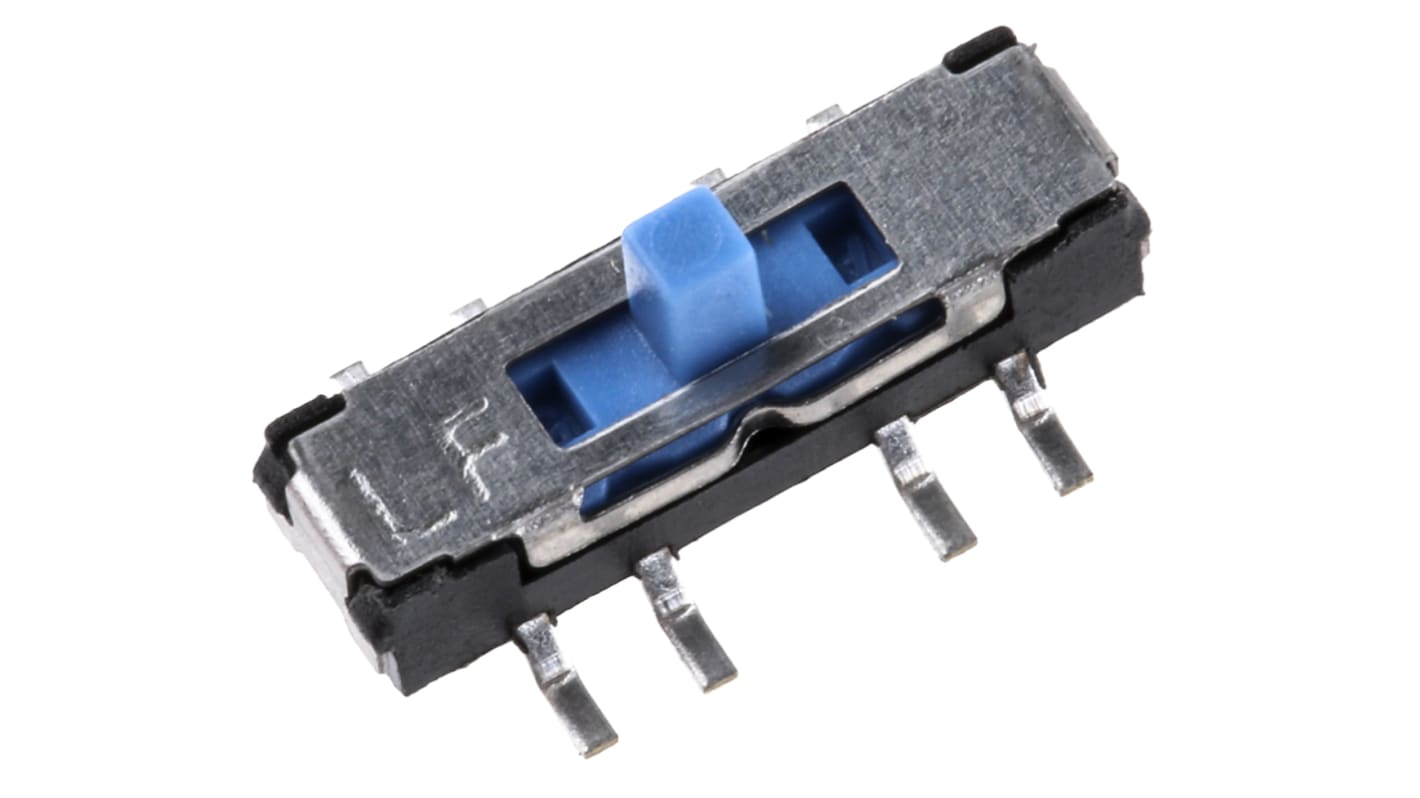

KNITTER-SWITCH PCB Slide Switch DPST On-On-On 300 mA @ 4 V dc
- RS庫存編號:
- 711-8338
- 製造零件編號:
- MMS238T
- 製造商:
- KNITTER-SWITCH
查看所有Slide Switches
- RS庫存編號:
- 711-8338
- 製造零件編號:
- MMS238T
- 製造商:
- KNITTER-SWITCH
- COO (Country of Origin):
- CN
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Knitter Switch Micro Miniature Slide Switches - MMS Series
Surface mount
Compact design
White slide
Non-shorting contact timing
Suitable for reflow soldering
Compact design
White slide
Non-shorting contact timing
Suitable for reflow soldering
規格
| 屬性 | 值 |
| Contact Configuration | Double Pole Single Throw (DPST) |
| Mounting Type | PCB |
| Switch Operation | On-On-On |
| Contact Current Rating | 300 mA @ 4 V dc |
| Terminal Type | Solder |
| Length | 12.4mm |
| Width | 7.5mm |
| Depth | 7.5mm |
| Dimensions | 12.4 x 3.5 x 7.5mm |
| Contact Resistance | 70mΩ |
| Mechanical Life | 10000Operations |
| Voltage Rating | 6V |
| Contact Material | Silver Plated Copper Alloy |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 → +60°C |
