Nidec Components Surface Slide Switch SPDT 200mA Polyamide

Name: Nidec Components Surface Slide Switch SPDT 200mA Polyamide
Brand: Nidec Components
SKU: 179-6387
Availability: BackOrder

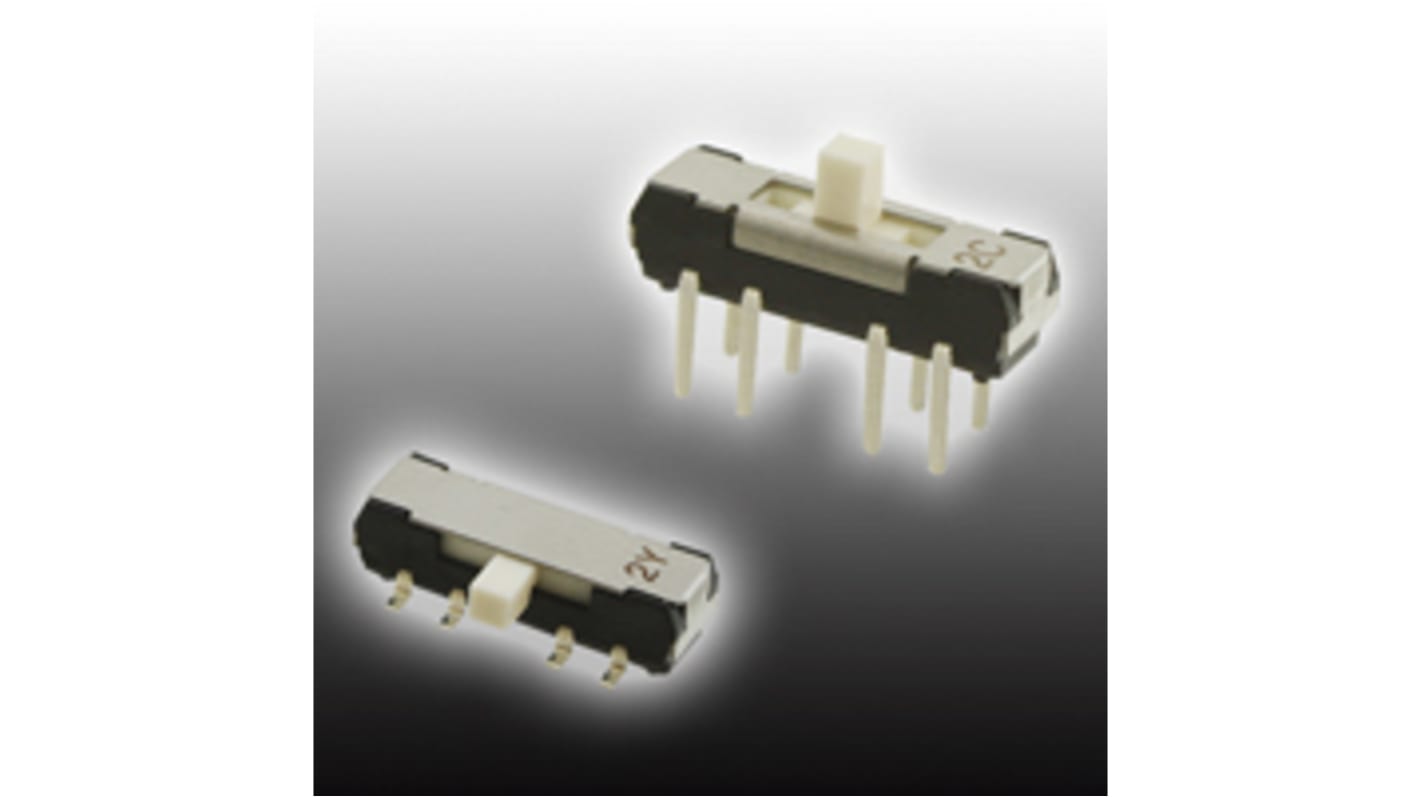

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

查看批量定價選項

小計（1 袋，共 100 件）*

TWD4,280.00

(不含稅)

TWD4,494.00

(含稅)

暫時缺貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

* 參考價格

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Nidec Components
	Contact Configuration	SPDT
	Product Type	Slide Switch
	Mount Type	Surface
	Switch Contact Current	200mA
	Terminal Type	J hook
	Illuminated	No
	Contact DC Voltage	50V dc
	Contact AC Voltage	50V ac
	Series	CL-SB
	Standards/Approvals	RoHS
	Width	3.5mm
	Depth	5.5mm
	Length	8.5mm
	Mechanical Life	10000Operations
	Maximum Operating Temperature	85°C
	Actuator Material	Polyamide
	Minimum Operating Temperature	-40°C

	選取全部
	品牌 Nidec Components
	Contact Configuration SPDT
	Product Type Slide Switch
	Mount Type Surface
	Switch Contact Current 200mA
	Terminal Type J hook
	Illuminated No
	Contact DC Voltage 50V dc
	Contact AC Voltage 50V ac
	Series CL-SB
	Standards/Approvals RoHS
	Width 3.5mm
	Depth 5.5mm
	Length 8.5mm
	Mechanical Life 10000Operations
	Maximum Operating Temperature 85°C
	Actuator Material Polyamide
	Minimum Operating Temperature -40°C

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)

Standardization of the silver contacts as well as gold contacts

Stroke is 2 mm

Using heat-resistant resin to support reflow soldering mounting

Adopted Twin-contacts mechanism
