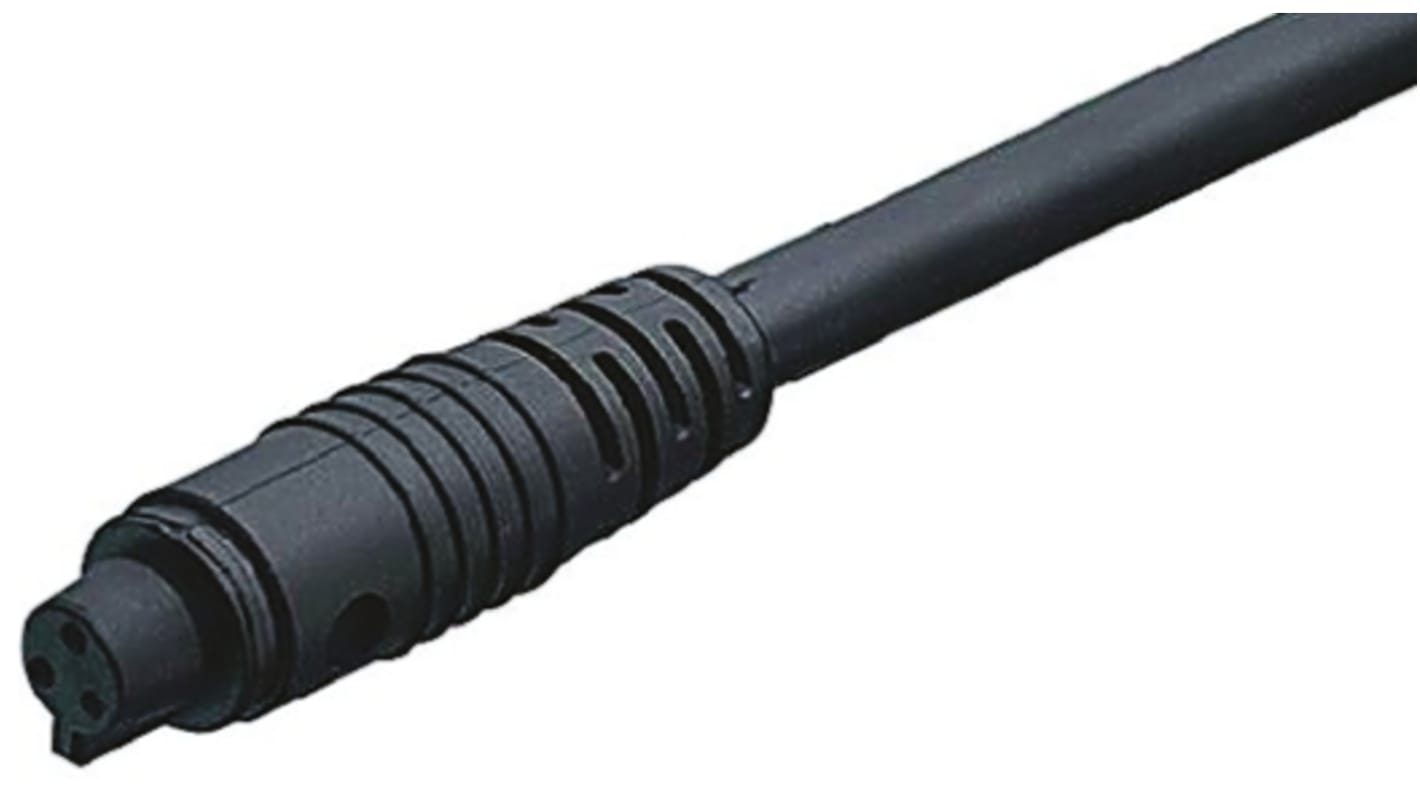

binder Female 4 way Snap-In Female Connector to Unterminated Sensor Actuator Cable, 2 m
- RS庫存編號:
- 734-5303P
- 製造零件編號:
- 77-7096-0000-10004-0200
- 製造商:
- binder
此圖片僅供參考,請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計 50 件 (以袋裝提供)*
TWD20,750.00
(不含稅)
TWD21,787.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 3 件從 2026年11月23日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 50 - 99 | TWD415.00 |
| 100 - 249 | TWD404.00 |
| 250 + | TWD394.00 |
* 參考價格
- RS庫存編號:
- 734-5303P
- 製造零件編號:
- 77-7096-0000-10004-0200
- 製造商:
- binder
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | binder | |
| Series | Snap-In IP40 709 | |
| Product Type | Sensor Actuator Cable | |
| Cable Length | 2m | |
| Jacket Colour | Black | |
| Jacket Material | PVC | |
| Connector Type A | Snap-In Female Connector | |
| Number of Contacts A | 4 | |
| Connector Gender A | Female | |
| Connector Type B | Unterminated | |
| Voltage | 60V | |
| IP Rating | IP40 | |
| Standards/Approvals | 2011/65/EU (EN 50581:2012), 2014/35/EU (EN 60204-1:2018, EN 60529:1991) | |
| 選取全部 | ||
|---|---|---|
品牌 binder | ||
Series Snap-In IP40 709 | ||
Product Type Sensor Actuator Cable | ||
Cable Length 2m | ||
Jacket Colour Black | ||
Jacket Material PVC | ||
Connector Type A Snap-In Female Connector | ||
Number of Contacts A 4 | ||
Connector Gender A Female | ||
Connector Type B Unterminated | ||
Voltage 60V | ||
IP Rating IP40 | ||
Standards/Approvals 2011/65/EU (EN 50581:2012), 2014/35/EU (EN 60204-1:2018, EN 60529:1991) | ||
- COO (Country of Origin):
- DE
Binder Series 709 Subminiature Connectors, Over-moulded, Snap-in
Binder Series 709 connectors are single-ended cordsets with a PUR overmolded version of the Series 719 connectors. These connectors are environmentally protected to IP40 when mated. The Series 709 connectors are Compact in size with only 9mm O.D. and the cordsets have standard cable lengths of 2 and 5 meters and the connectors are mating compatible with Binder Series 719.
Snap locking
Plastic connector Shell
IP40 rated when mated
Rated at 3A
Gold contact plating
Binder 709 Series Connectors
