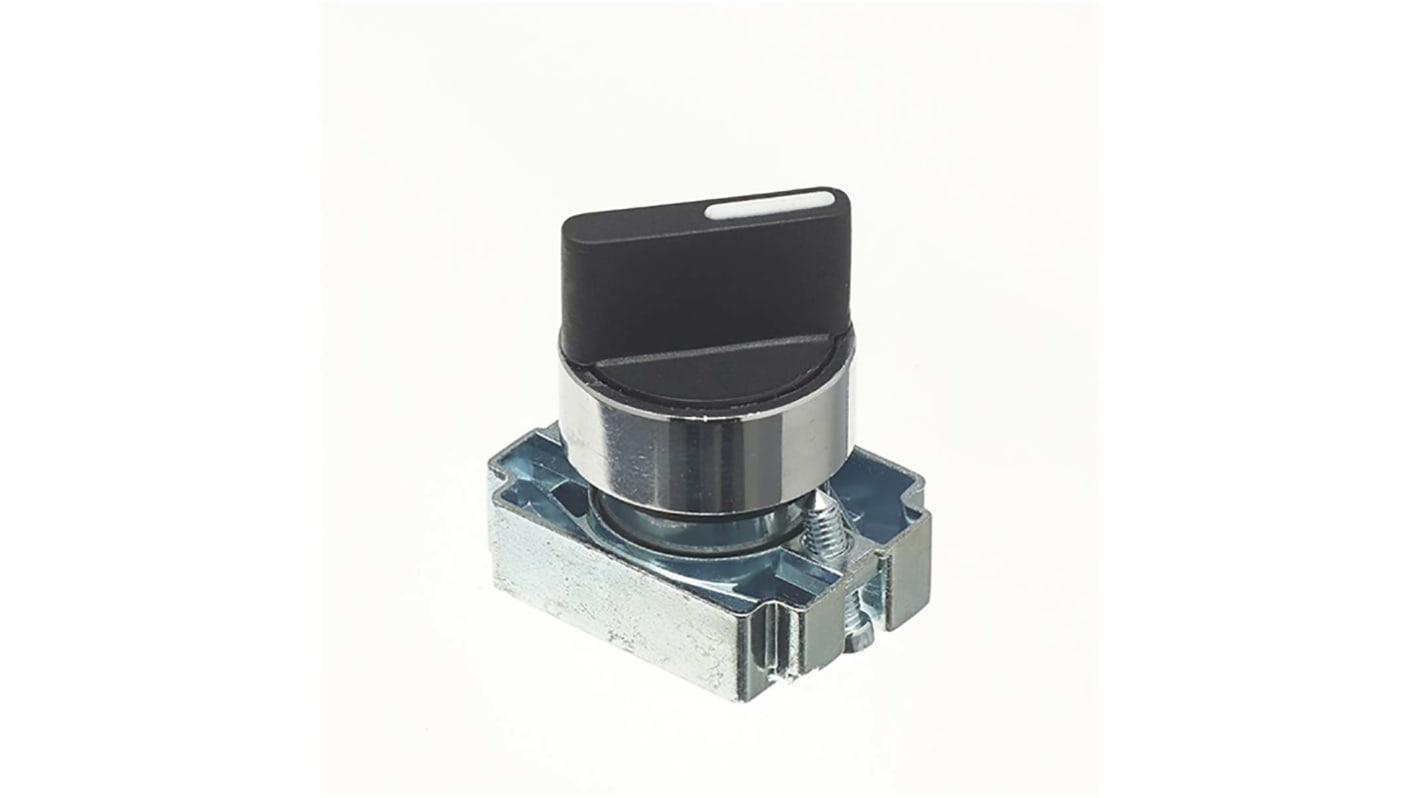

RS PRO 2 Position Selector Switch Head, 22mm Cutout, Black Handle
- RS庫存編號:
- 205-2369
- 製造商:
- RS PRO
可享批量折扣
單價（不含稅） 個**
原價 TWD278.00
您付款
TWD222.00
(不含稅)
TWD233.10
(含稅)
2 "將在 2 工作日發貨 （本地庫存） "*
74 在6 工作日內發貨 (海外庫存)
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 TWD2,857.00 (未稅) 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD222.00 |
| 5 + | TWD183.00 |
** 參考價格
- RS庫存編號:
- 205-2369
- 製造商:
- RS PRO
RS PRO Selector Switches Head - 2 Position Return to Centre (Short Lever)
Introducing a range of selector switches from RS PRO. These robust selector switch heads are integrated with mounting collars and are commonly used with auxiliary contact blocks. Upon inspection, they are made from high-quality materials such as; black with modern silver-coloured bezels, have a 22 mm diameter cut-out, fully sealed with an IP65 rating, and available with spring return switch actuation.
Where would you find them?
Selector switches are commonly used in industrial applications, used in conjunction with auxiliary contact blocks. Contact blocks are electrical circuit connectors that are used to turn on or turn off an electrical circuit.
Features and Benefits
- RCAS series selector switch head ø 22 mm
- Mounting collar included
- Colour: Black switch with position marking
- Bezel: Bright metal (ZAMAC)
- Cut-out Diameter: 22 mm
- Number of Positions: 2
- Switch Actuation: Spring Return
- Non-Illuminated
- Operating temperature: 25°C to +70°C
- Mechanical life more than 1 million uses
- IP65 rated
RS PRO Position Selector Switch Head Variants
- 2 Position Centre off / Spring Return from Right; RS stock no: 205-2369
- 3 Position Centre off / Spring Return from Left & Right; RS stock no: 205-2376
- 2 Position Centre off / Spring Return from Right (Long Handle); RS stock no: 205-2370
- 3 Position Centre off / Spring Return from Left & Right (Long Handle); RS stock no: 205-2377
Compatible Auxiliary Contact Blocks
Accessories Available Separately
RS PRO Mounting Collar; RS stock no: 205-2385
Applications
- Industrial control units
- Factories
- Power Plants
Why would you choose RS PRO?
RS PRO offers a wide range of selector switches to suit your applications. Our range has been selected for its high quality and compatibility with auxiliary contact blocks. We understand quality is of great importance to any engineer and have ensured that all RS PRO selector switches are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
Approvals
UL & CSA Approved
屬性 | 值 |
|---|---|
| Actuator Colour | Black |
| Illuminated | No |
| Number of Positions | 2 |
| Cutout Diameter | 22mm |
| Switch Actuation | Spring Return |
| Series | RCAS |
| IP Rating | IP65 |
- COO (Country of Origin):
- IN
