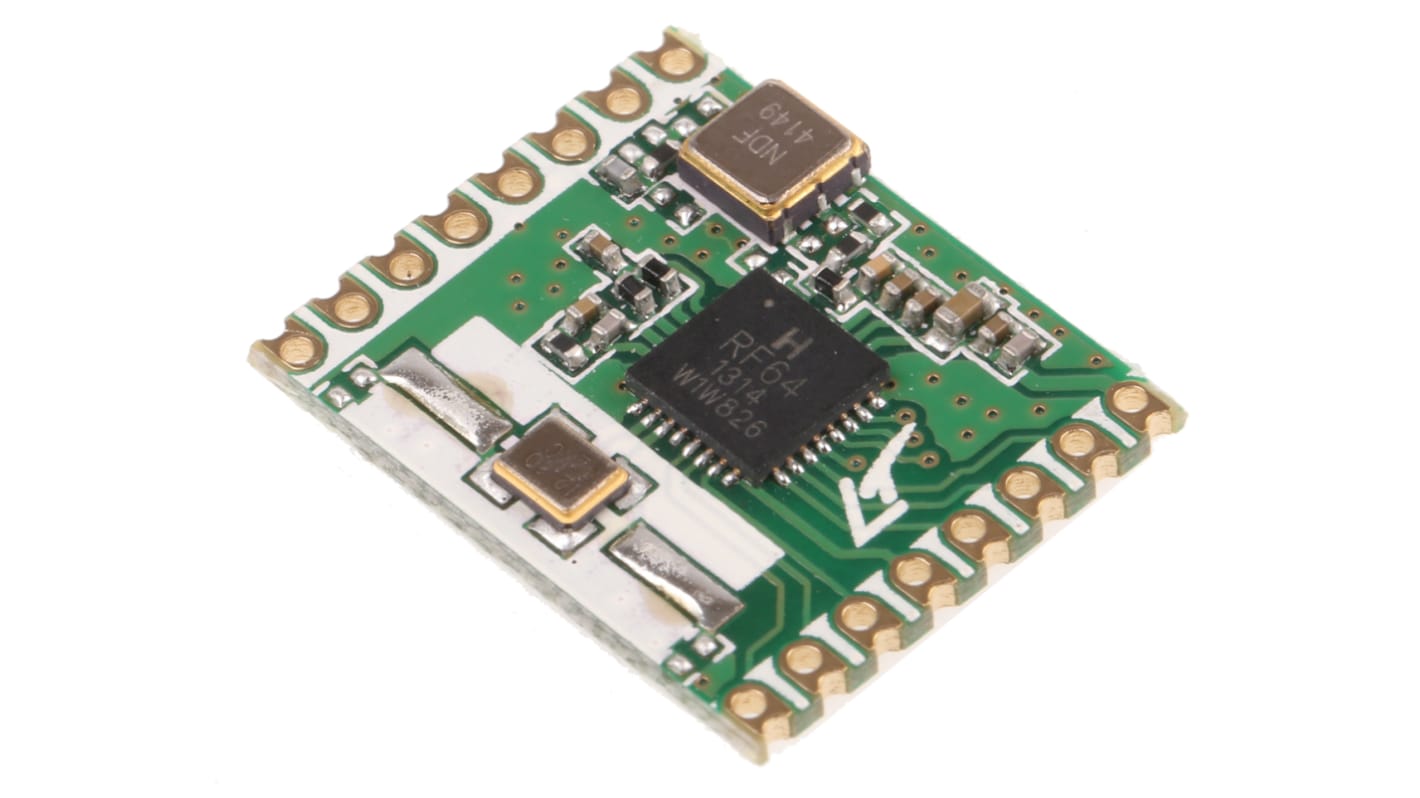

HopeRF RFM64W-433S2 RF Module FSK, OOK 433 MHz 3.6 V
- RS庫存編號:
- 793-2005
- 製造零件編號:
- RFM64W-433S2
- 製造商:
- HopeRF
暫時無法供應
抱歉，我們不知道何時會到貨。
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
個
TWD361.00
(不含稅)
TWD379.05
(含稅)
- RS庫存編號:
- 793-2005
- 製造零件編號:
- RFM64W-433S2
- 製造商:
- HopeRF
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | HopeRF | |
| Component Type | Module | |
| Sub Type | Transceiver | |
| Product Type | RF Module | |
| Modulation Technique | FSK, OOK | |
| Maximum RF Data Rate | 150kbps | |
| Mount Type | Surface | |
| Frequency | 433MHz | |
| Maximum Output Power | 10dBm | |
| Receiver Sensitivity | -110dBm | |
| Interface Type | SPI | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Series | RFM64W | |
| Length | 19.7mm | |
| Width | 16 mm | |
| Standards/Approvals | No | |
| Height | 1.9mm | |
| 選取全部 | ||
|---|---|---|
品牌 HopeRF | ||
Component Type Module | ||
Sub Type Transceiver | ||
Product Type RF Module | ||
Modulation Technique FSK, OOK | ||
Maximum RF Data Rate 150kbps | ||
Mount Type Surface | ||
Frequency 433MHz | ||
Maximum Output Power 10dBm | ||
Receiver Sensitivity -110dBm | ||
Interface Type SPI | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Series RFM64W | ||
Length 19.7mm | ||
Width 16 mm | ||
Standards/Approvals No | ||
Height 1.9mm | ||
- COO (Country of Origin):
- CN
RFM64 433MHz ISM Transceiver, HopeRF
The RFM64W is a low-cost 433MHz ISM-band transceiver module. The RFM64W is optimized for very low power consumption. All major RF communication parameters are programmable and most of them may be dynamically set. In order to better use RFM64W modules, this specification also involves a large number of the parameters and functions of its RF64 core chip, including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM64W modules.
Carrier Frequency range: 432 to 436MHz
RF Output Power: 12dBm
Modulation: FSK or OOK
Receiver Sensitivity: -104dBm at 25kbps in FSK, -110dBm at 2kbps in OOK
Rx power consumption: 3mA
Tx power consumption: 25mA @ +10dBm
Programmable RF output power: up to +12dBm in 8 steps
Packet handling feature with data whitening and automatic CRC generation
RSSI (Received Signal Strength Indicator)
Data rate: Up to 150kbps with NRZ coding
On-chip frequency synthesizer
Incoming sync word recognition
Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery
Power supply: +2.1 to +3.6Vdc
Operating temperature range: -20 to +70°C
Dimensions: 19.7 x 16 x 1.9mm
Optimized Circuit Configuration for low-cost applications
Applications: Wireless alarm & security systems, Wireless sensor networks, Automated Meter Reading, Home & Building automation, Industrial monitoring & control, Remote Wireless Control
, Local communication for the Internet-of-Things (IoT)
Wireless Modules - HopeRF
