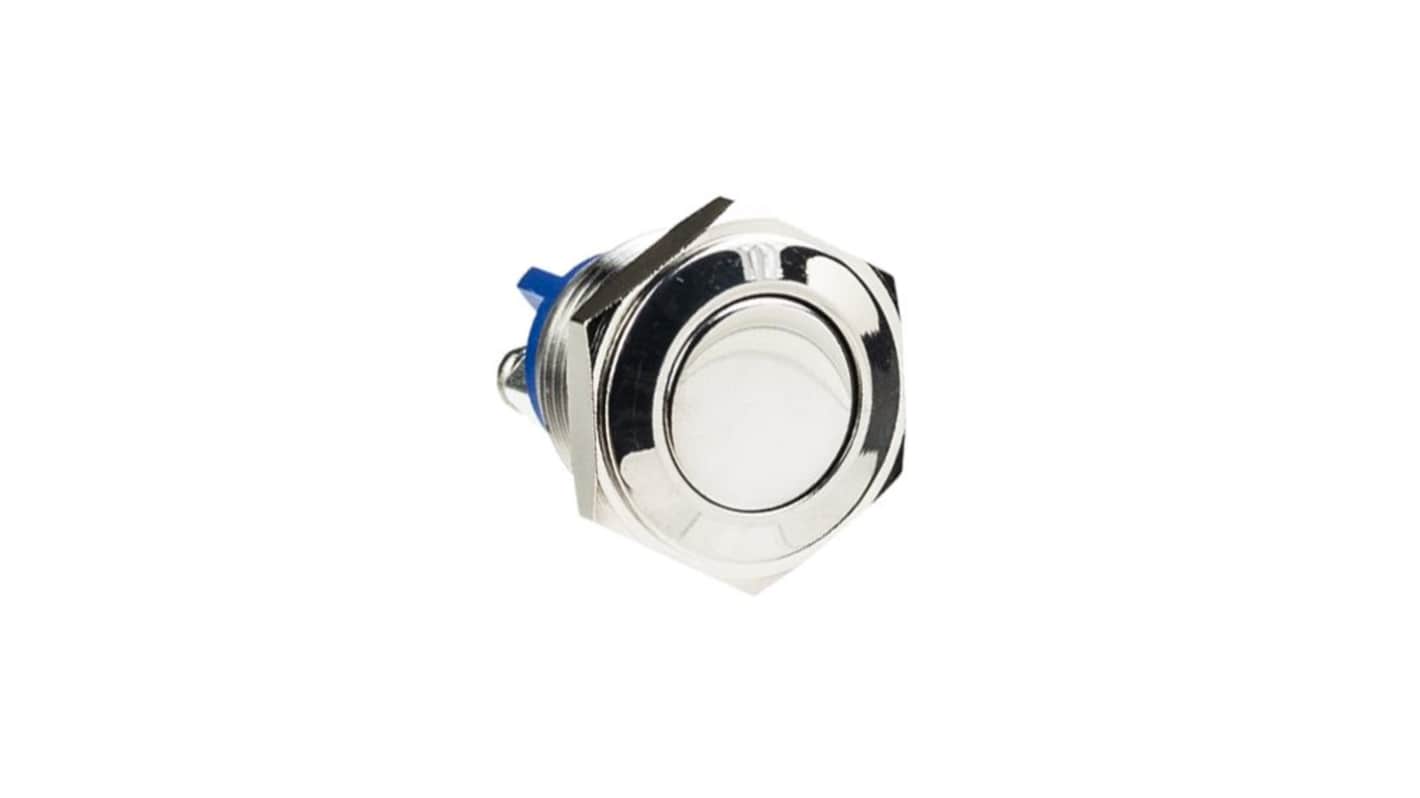

Name: Bulgin MP0042 Series Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, IP65, 48 V
Brand: Bulgin
SKU: 861-0377
Price: 614.25 TWD
Availability: InStock

Bulgin Push Button Switch, 16.2mm Panel Cut Out Diameter, SPST Contact Configuration - MP0042/1

This push button switch is designed for panel mount applications. It features a momentary operation and is constructed from polished stainless steel. With a panel cut-out diameter of 16.2mm, this device operates effectively within a temperature range of -20 to +55 °C while maintaining a robust build with an IP65 rating, making it suitable for challenging environments.

Features & Benefits

• SPST configuration ensures seamless circuit operation

• Flat round design provides a modern aesthetic

• Silver construction enhances durability and corrosion resistance

• Capable of handling a maximum voltage of 36V dc

• Screw terminal design simplifies installation and connectivity

Applications

• Ideal for use in control panels and machinery interfaces

• Suitable for automation and electronic control systems

• Effective in environments requiring reliable sealing and durability

What kind of maintenance is needed for this switch to ensure longevity?

Regular inspection for any signs of wear or corrosion is advisable, particularly in environments with moisture or dust. Ensuring that the screw terminals are tight and free from contaminants will also help maintain performance.

Can this switch be used in outdoor applications?

Yes, its IP65 rating provides sufficient protection against both dust and water, making it suitable for outdoor use in moderate weather conditions.

What is the expected lifespan for mechanical and electrical operations?

The switch is rated for a minimum of 1 million mechanical operations and 100,000 electrical operations, ensuring a long service life even under extensive use.

Stainless Steel Vandal Resistant Pushbutton

Prominent, domed and low profile versions

IP66 & 68 front panel sealing options

Vandal resistant stainless steel switch body and button

High resistance to wear and tear, corrosion and harsh use in hostile environments

單位	每單位
1 - 49	TWD585.00
50 - 249	TWD569.00
250 +	TWD556.00

選取全部	屬性	值
	品牌	Bulgin
	Product Type	Push Button Switch
	Switch Operation	Momentary
	Illuminated	No
	Series	MP0042
	Panel Cutout Size	16 mm
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Screw
	IP Rating	IP65
	Actuator Style	Flush
	Minimum Operating Temperature	-20°C
	Contact DC Voltage	48V
	Switch Configuration	Push to Make
	Maximum Operating Temperature	55°C
	Switch Contact Current	2 A
	Standards/Approvals	RoHS
	Legend	Blank

	選取全部
	品牌 Bulgin
	Product Type Push Button Switch
	Switch Operation Momentary
	Illuminated No
	Series MP0042
	Panel Cutout Size 16 mm
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Screw
	IP Rating IP65
	Actuator Style Flush
	Minimum Operating Temperature -20°C
	Contact DC Voltage 48V
	Switch Configuration Push to Make
	Maximum Operating Temperature 55°C
	Switch Contact Current 2 A
	Standards/Approvals RoHS
	Legend Blank

Bulgin MP0042 Series Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, IP65, 48 V
