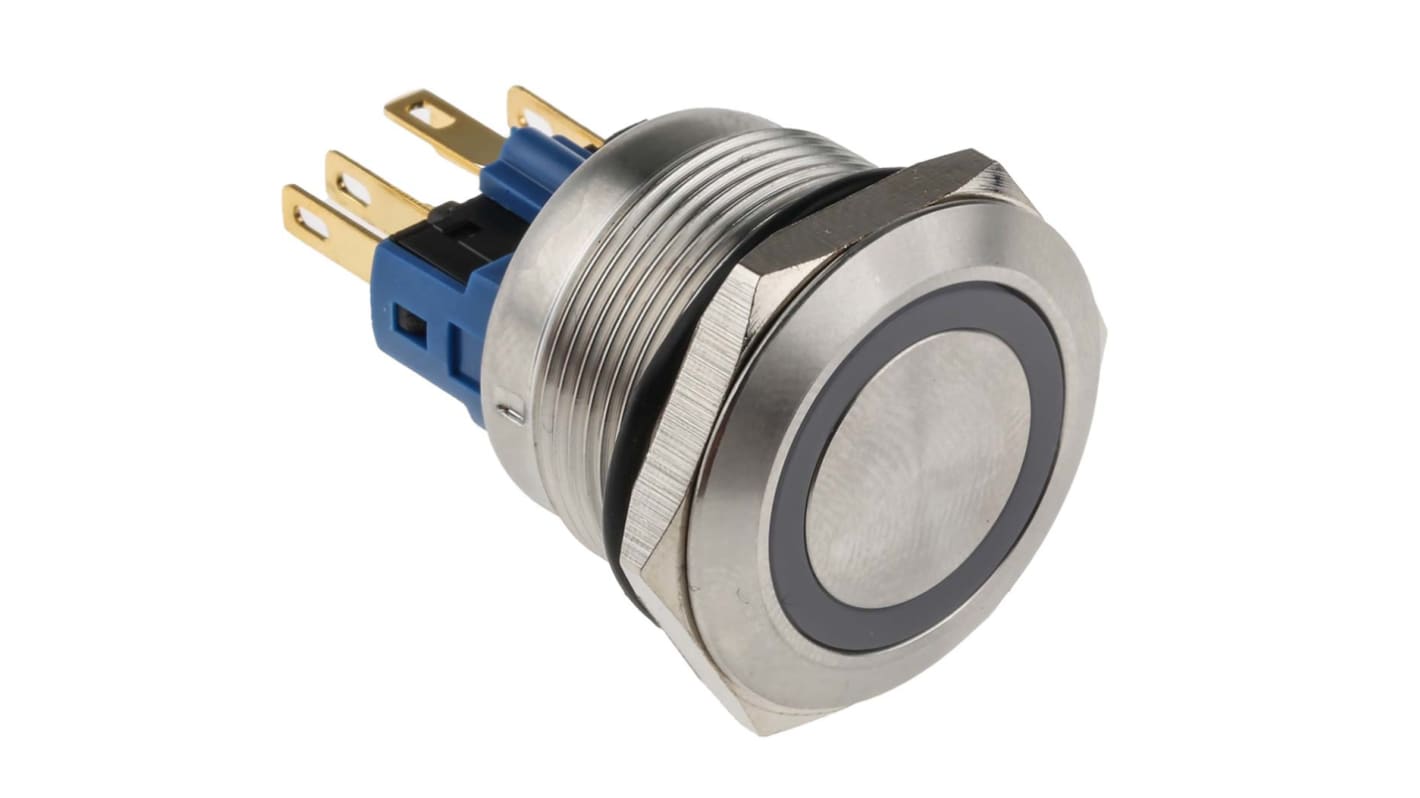

RS PRO Illuminated Push Button Switch, Momentary, Panel Mount, 22mm Cutout, SPDT, Blue LED, 250V ac, IP65, IP67
- RS庫存編號:
- 811-8538
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
TWD1,103.00
(不含稅)
TWD1,158.15
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 146 件準備從其他地點送貨
- 加上 100 件從 2026年2月24日 起發貨
- 加上 100 件從 2026年3月24日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD1,103.00 |
| 10 - 49 | TWD1,069.00 |
| 50 - 99 | TWD1,039.00 |
| 100 - 499 | TWD1,017.00 |
| 500 + | TWD836.00 |
* 參考價格
- RS庫存編號:
- 811-8538
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 22mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | SPDT | |
| Voltage Rating | 250V ac | |
| Push Button Style | Round | |
| LED Colour | Blue | |
| IP Rating | IP65, IP67 | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Contact Material | Silver Alloy | |
| Manufacturer Part No. | AV02L-B12-M3-FR-B-24V | |
| Contact AC Voltage Rating | 250V | |
| Terminal Type | Quick Connect | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 22mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration SPDT | ||
Voltage Rating 250V ac | ||
Push Button Style Round | ||
LED Colour Blue | ||
IP Rating IP65, IP67 | ||
Contact Current Rating 5 A @ 250 V ac | ||
Contact Material Silver Alloy | ||
Manufacturer Part No. AV02L-B12-M3-FR-B-24V | ||
Contact AC Voltage Rating 250V | ||
Terminal Type Quick Connect | ||
- COO (Country of Origin):
- TW
Anti Vandal 22mm Push Button Switches
This high-quality anti vandal push button switch from our own brand RS PRO is designed to withstand physical attack and it is suitable for any application that requires above panel resistance to water and dust access such as public kiosks, outside panels or open dashboards.
• Operating life of 50,000 cycles
• Operating force of 4N max
• Stainless steel construction
• Copper alloy, silver plated contact
• Brass, silver plated terminal
• Front panel protection to IP67
• Operating force of 4N max
• Stainless steel construction
• Copper alloy, silver plated contact
• Brass, silver plated terminal
• Front panel protection to IP67
