Fujisoku LED Illuminated & Non-Illuminated Push Button Switches – LP Series

Fujisoku LP series is a range of LED illuminated and non-illuminated Push Button switches with a momentary "on-(on)" or alternating "on-on" switching action. They are available in a choice of terminal styles which includes PCB mount or solder terminals, further options include square or rectangular bezels with various button colours.

The switches with solder terminals are designed to be panel mounted, the switch body snap fits into panel cut-outs with a panel thickness of between 1 and 2.5mm, the fixing ribs on the switch housing ensures a tight secure fit. The PCB mounted switches conform to standard PCB grid spacing.

The LP series of LED illuminated switches feature a high luminosity LED and a two part lens that consists of a clear plate and a coloured button, both the plate and button can be printed with legend sheets or engraved to suit your application. The non-illuminated switches are supplied with a coloured button which can also be printed or engraved.

The Fujisoku LP switches are suitable for use in many applications that require a compact body Push Button switch with a snap action mechanism that allows the user to operate with a light operating touch.

Choice of LED illuminated or non-illuminated with panel or PCB mounting options and alternate (push to lock) or momentary switching action

SPDT or DPDT

High luminosity LED in Red, Green or Yellow

Sliver or gold plated contacts

Snap action mechanism

Silver contacts - maximum switch rating of 3A 30Vdc 125/250Vac, minimum 10mA

Gold contacts - maximum switch rating of 50mA at 48Vac/dc, minimum 0.1mA at 20mV ac/dc

Contact resistance 50mΩ maximum (silver contacts), 100mΩ maximum (gold contacts)

Dielectric strength 1500Vac for 1 minute

Insulation resistance 100MΩ minimum

Silver contacts - electrical life 30,000 operations

Gold contacts - electrical life 50,000 operations

2.3mm full stroke; 1.5mm locked

Bounce 10ms max.

Operating temperature range -15 to +60°C

Fujisoku Push Button Switches

Note

Momentary state is displayed in brackets, e.g. on - (on).

Approvals

UL, CSA

單位	每單位
1 - 24	TWD242.00
25 - 99	TWD237.00
100 +	TWD232.00

選取全部	屬性	值
	品牌	Nidec Components
	Product Type	Push Button Switch
	Actuator Colour	White
	Switch Operation	Momentary
	Series	LP
	Panel Cutout Size	16.2 x 16.2 mm
	Mount Type	Panel
	Contact Configuration	SPDT
	Terminal Type	Solder Tag
	Minimum Operating Temperature	-15°C
	Actuator Style	Cap
	Switch Configuration	On-On
	Maximum Operating Temperature	60°C
	Switch Contact Current	50 mA
	Standards/Approvals	UL, CSA

	選取全部
	品牌 Nidec Components
	Product Type Push Button Switch
	Actuator Colour White
	Switch Operation Momentary
	Series LP
	Panel Cutout Size 16.2 x 16.2 mm
	Mount Type Panel
	Contact Configuration SPDT
	Terminal Type Solder Tag
	Minimum Operating Temperature -15°C
	Actuator Style Cap
	Switch Configuration On-On
	Maximum Operating Temperature 60°C
	Switch Contact Current 50 mA
	Standards/Approvals UL, CSA

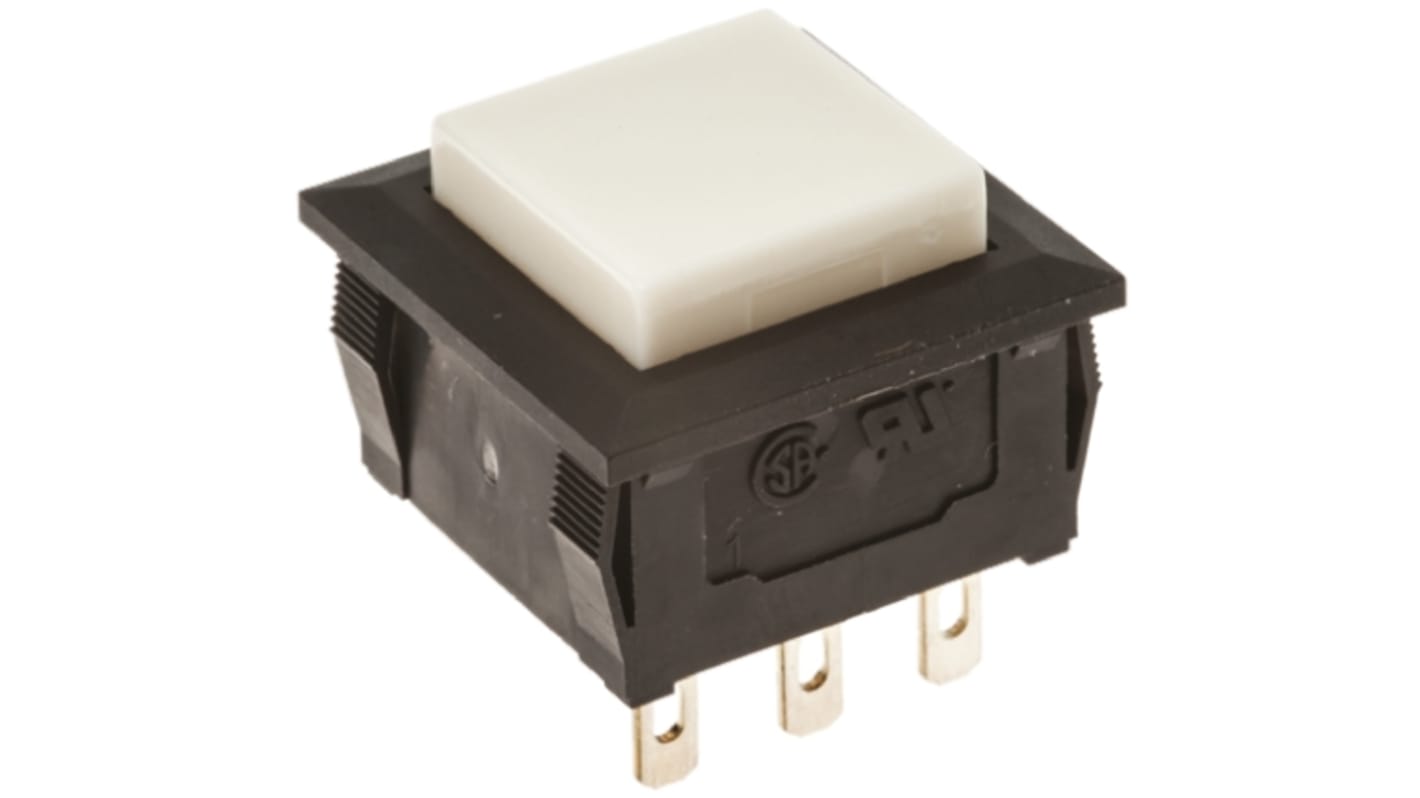

Nidec Components LP Series Push Button Switch, Momentary, Panel, 16.2 x 16.2 mm Cutout, SPDT
