RS PRO Push Button Switch, Momentary, PCB, 6.35 mm Cutout, SPDT, White LED, 28 V dc 120 V ac
- RS庫存編號:
- 734-6788
- Distrelec 貨號:
- 304-03-427
- 製造商:
- RS PRO
可享批量折扣
查看批量定價選項小計（1 件）*
TWD110.00
(不含稅)
TWD115.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 776 件從 2026年10月19日 起發貨
- 加上 606 件從 2026年10月26日 起發貨
- 加上 1,000 件從 2026年12月08日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 49 | TWD110.00 |
| 50 - 99 | TWD108.00 |
| 100 - 249 | TWD106.00 |
| 250 - 1249 | TWD100.00 |
| 1250 + | TWD81.00 |
* 參考價格
- RS庫存編號:
- 734-6788
- Distrelec 貨號:
- 304-03-427
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | White | |
| Illuminated | No | |
| Panel Cutout Size | 6.35 mm | |
| Mount Type | PCB | |
| Contact Configuration | SPDT | |
| LED Colour | White | |
| Terminal Type | Through Hole | |
| Actuator Style | Cap | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 120V ac | |
| Switch Configuration | SPDT | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | Lead-Free, RoHS | |
| Switch Contact Current | 3A | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour White | ||
Illuminated No | ||
Panel Cutout Size 6.35 mm | ||
Mount Type PCB | ||
Contact Configuration SPDT | ||
LED Colour White | ||
Terminal Type Through Hole | ||
Actuator Style Cap | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 120V ac | ||
Switch Configuration SPDT | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals Lead-Free, RoHS | ||
Switch Contact Current 3A | ||

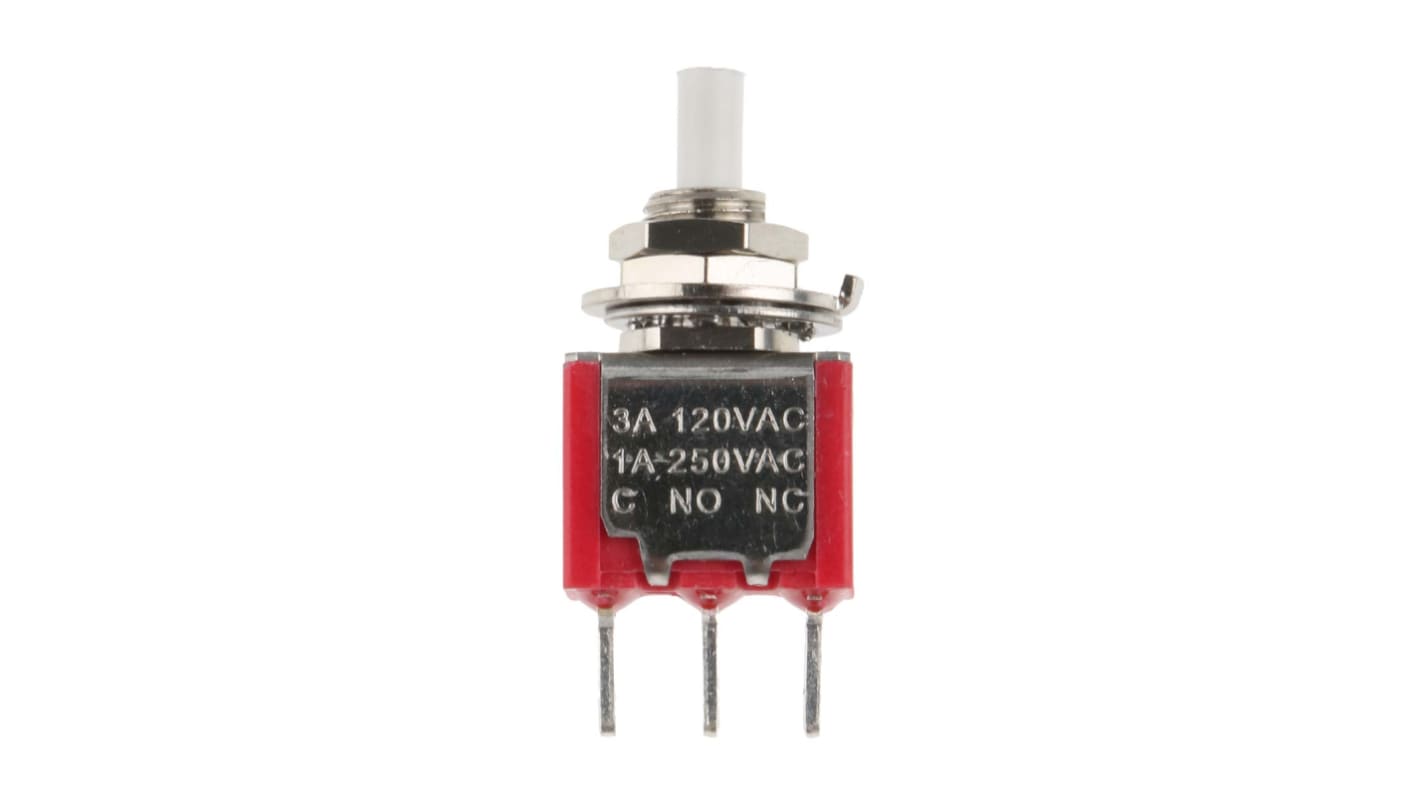

RS PRO Single Pole Double Throw (SPDT) Momentary Push Button Switch, 6.35 mm (Dia.), PCB, 32/50/125 V AC
Allow electricity to flow through your circuit with the RS PRO single pole double throw (SPDT) momentary push button switch. This electrical component is widely used in the manufacture of telecommunications equipment, instrumentation and medical devices. It has a voltage rating of 32/50/125 V AC and a contact current rating of 3 A @ 120 V AC.
This white switch has a momentary functionality, which means you simply need to press it to complete your circuit. It comes with a snap action push button made from glass-filled nylon or glass-filled polyester. It can be securely affixed to your PCB (printed circuit board) with a through-hole terminal.
Designed for durability and consistency, this non-illuminated component has a mechanical lifespan of around 50,000 cycles. It's lead-free and RoHS compliant for minimal hazardous materials. This reliable product requires a panel cut out diameter of 6.35 mm.
Features and Benefits
• Momentary switch operation
• Silver-plated contacts
• PCB mounted
• Non-illuminated
• Single pole double throw (SPDT) contact configuration
• Panel cut out size of (D) 6.35 mm
• White actuator
• Voltage rating of 32/50/125 V AC
• Contact current rating of 3 A @ 120 V AC
• Cylinder actuator
• Through-hole terminal
• Contact DC voltage rating of 28 V
• Cap actuator
• Contact AC voltage rating of 120 V, 250 V
• Lead-free and RoHS compliant for minimal hazardous materials
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
