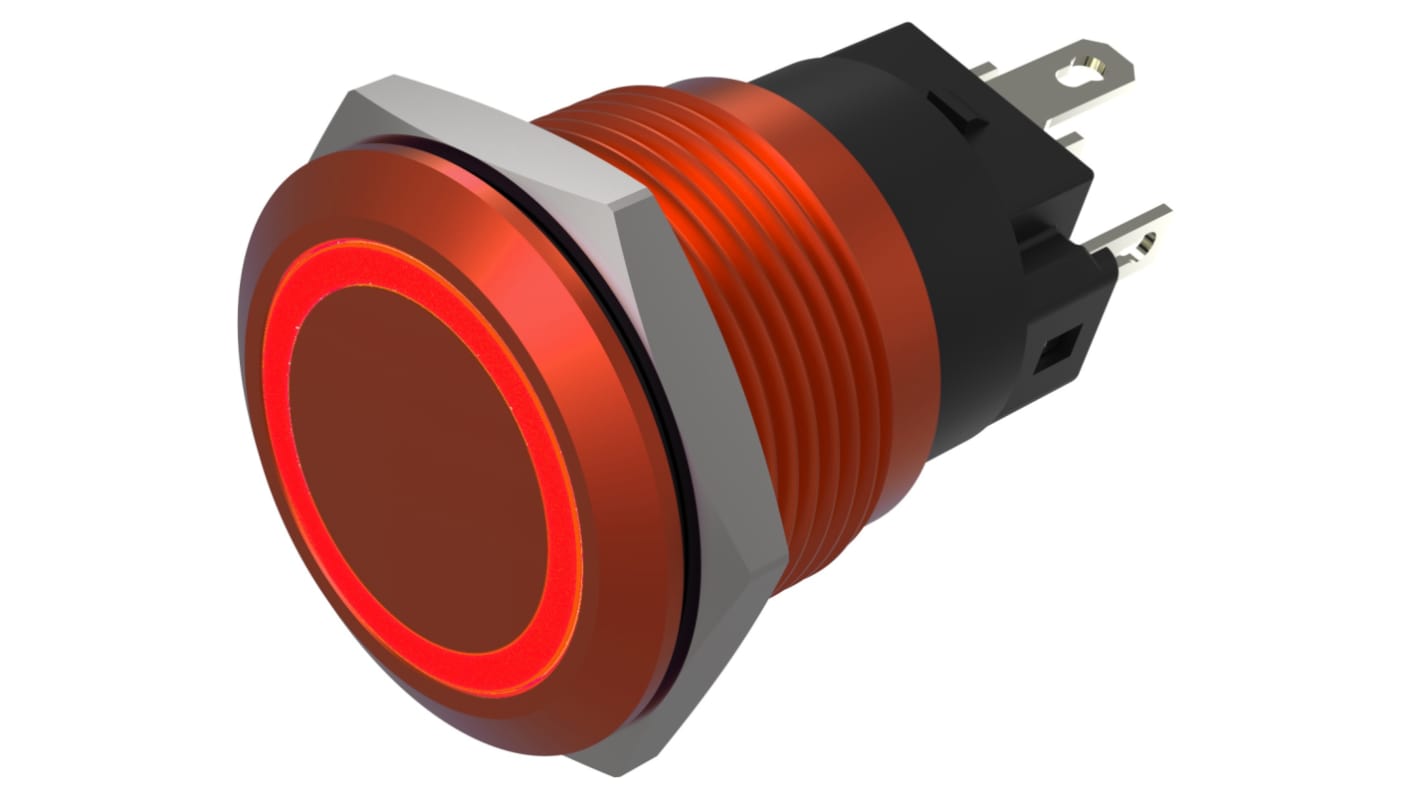

EAO 82 Series Illuminated Push Button Switch, Momentary, Flush, 19 mm Cutout, SPST, Red LED, IP67, IP65
- RS庫存編號:
- 427-621
- 製造零件編號:
- 82-5751.1114
- 製造商:
- EAO
小計（1 件）*
TWD1,318.00
(不含稅)
TWD1,383.90
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 6 件從 2026年1月26日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD1,318.00 |
* 參考價格
- RS庫存編號:
- 427-621
- 製造零件編號:
- 82-5751.1114
- 製造商:
- EAO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | EAO | |
| Actuator Colour | Red | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Panel Cutout Size | 19 mm | |
| Series | 82 | |
| Mount Type | Flush | |
| Contact Configuration | SPST | |
| LED Colour | Red | |
| Terminal Type | Solder Terminal | |
| IP Rating | IP67, IP65 | |
| Minimum Operating Temperature | 30°C | |
| Switch Configuration | Momentary | |
| Maximum Operating Temperature | 70°C | |
| Width | 22 mm | |
| Standards/Approvals | UL, cUL, CCC, CB | |
| Length | 35.5mm | |
| Height | 22mm | |
| 選取全部 | ||
|---|---|---|
品牌 EAO | ||
Actuator Colour Red | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Panel Cutout Size 19 mm | ||
Series 82 | ||
Mount Type Flush | ||
Contact Configuration SPST | ||
LED Colour Red | ||
Terminal Type Solder Terminal | ||
IP Rating IP67, IP65 | ||
Minimum Operating Temperature 30°C | ||
Switch Configuration Momentary | ||
Maximum Operating Temperature 70°C | ||
Width 22 mm | ||
Standards/Approvals UL, cUL, CCC, CB | ||
Length 35.5mm | ||
Height 22mm | ||
豁免
- COO (Country of Origin):
- CN
The EAO push button with momentary action and vandal-resistant is impact-resistant to IK10 and offers front protection up to IP67. Gold contacts are available for low voltages and currents, with optional illumination and laser markings. It provides excellent tactile feedback and boasts a long service life of over 1 million cycles of operation.
Stainless steel, anodized aluminum, or brass colored switches
Mounting 19 mm
