Eaton C30C Series Push Button Switch, Cable, 30.5 mm Cutout, 2 NO, IP69K, IP66, IP67 800 V
- RS庫存編號:
- 239-956
- 製造零件編號:
- 186054 C30C-FD-X-K20-P62
- 製造商:
- Eaton
小計（1 件）*
TWD2,314.00
(不含稅)
TWD2,429.70
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年3月23日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD2,314.00 |
* 參考價格
- RS庫存編號:
- 239-956
- 製造零件編號:
- 186054 C30C-FD-X-K20-P62
- 製造商:
- Eaton
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Eaton | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | C30C | |
| Panel Cutout Size | 30.5 mm | |
| Mount Type | Cable | |
| Contact Configuration | 2 NO | |
| Terminal Type | Cable | |
| IP Rating | IP69K, IP66, IP67 | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 800V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC/EN 60947-5-1 VDE 0660 CSA Class No.: 321103 CSA File No.: 165628 UL 508 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking UL Category Control No.: NKCR UL File No.: E29184 UL CSA | |
| Height | 46mm | |
| Switch Contact Current | 4 A | |
| Length | 1060mm | |
| Width | 36 mm | |
| 選取全部 | ||
|---|---|---|
品牌 Eaton | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series C30C | ||
Panel Cutout Size 30.5 mm | ||
Mount Type Cable | ||
Contact Configuration 2 NO | ||
Terminal Type Cable | ||
IP Rating IP69K, IP66, IP67 | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 800V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC/EN 60947-5-1 VDE 0660 CSA Class No.: 321103 CSA File No.: 165628 UL 508 CSA-C22.2 No. 14-18 and No. 94.2-15 CE marking UL Category Control No.: NKCR UL File No.: E29184 UL CSA | ||
Height 46mm | ||
Switch Contact Current 4 A | ||
Length 1060mm | ||
Width 36 mm | ||
豁免
- COO (Country of Origin):
- DE

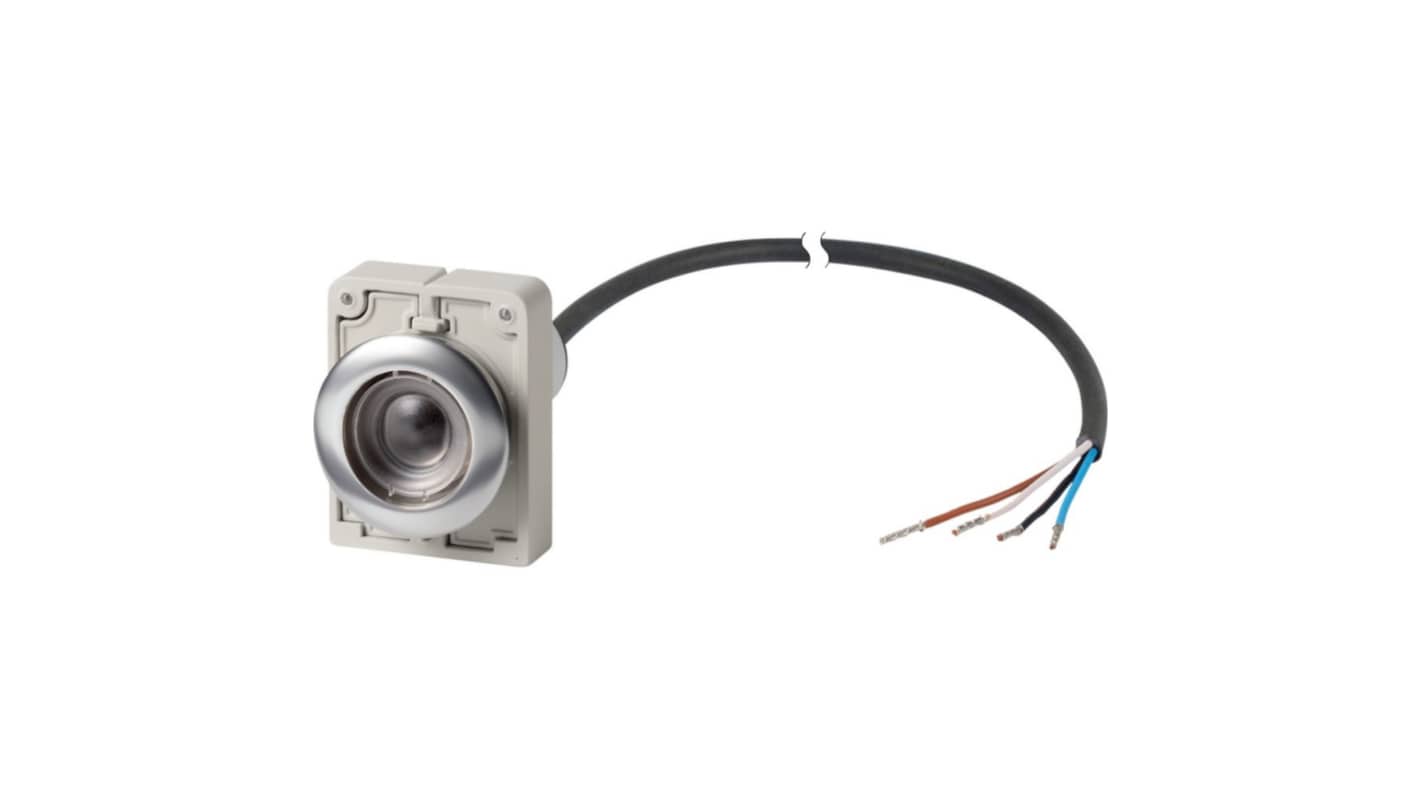

The Eaton Moeller series C30 Pushbutton is designed for efficiency and reliability in various applications. With a flat, momentary pushbutton and a robust metal bezel, this product combines functionality with durability. The pushbutton actuator boasts an impressive operational lifespan, coupled with high resistance to environmental factors, making it ideal for demanding industrial environments. Its 2 normally open contacts ensure optimal performance, while the 1m, non-terminated cable facilitates straightforward installation. Whether used in control panels or machinery interfaces, this pushbutton provides intuitive operation, ensuring quick responsiveness to user inputs. Its compact dimensions make it suitable for a wide range of setups, allowing versatile mounting options that cater to specific user needs.
Flat design that suits modern aesthetics and space-saving needs
Momentary spring-return function for efficient control usage
High shock resistance, ensuring reliability in demanding conditions
Constructed with a robust metal bezel for enhanced durability
Excellent protection against dust and water ingress with IP67/IP69K rating
Outstanding operational temperature range for various environmental conditions
Compatible with four-pole connections for versatile integration
Minimal weight promotes easy handling and installation
Rated for high operational current, facilitating powerful performance
Designed to withstand frequent operational cycles without compromising integrity
