Vishay VCNL36825T Proximity Sensor 200 mm -0.3 V 3.8V 6 Surface Mount
- RS庫存編號:
- 244-4835P
- 製造零件編號:
- VCNL36825T
- 製造商:
- Vishay

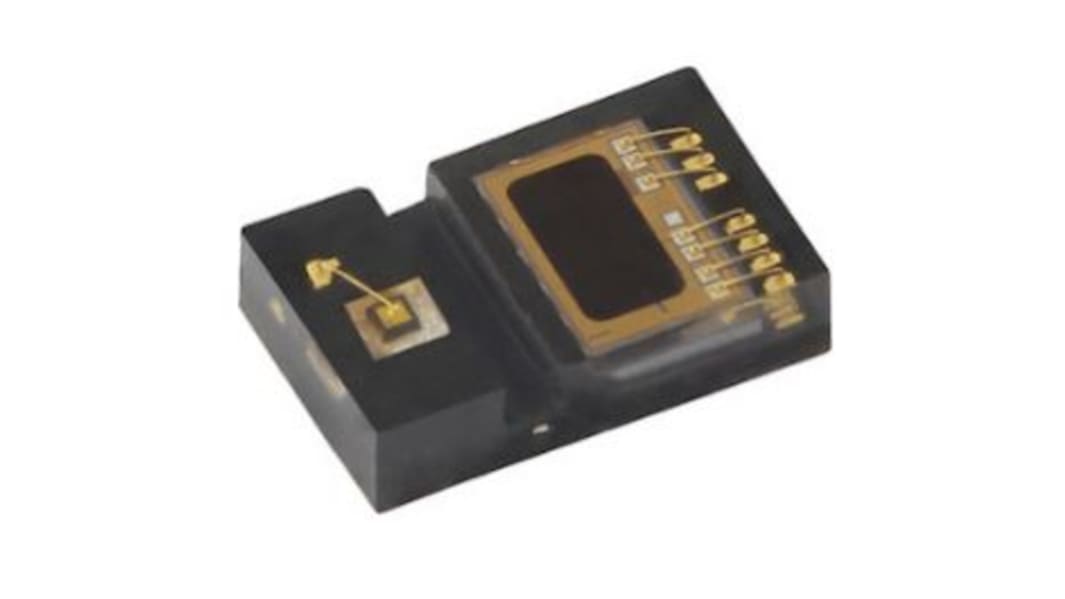

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計 50 件 (按連續帶提供)*
TWD2,180.00
(不含稅)
TWD2,289.00
(含稅)
訂單超過 $1,300.00 免費送貨
最後的 RS 庫存
- 最終 4,175 個，準備發貨
單位 | 每單位 |
|---|---|
| 50 - 95 | TWD43.60 |
| 100 - 495 | TWD42.20 |
| 500 - 1995 | TWD41.40 |
| 2000 + | TWD40.20 |
* 參考價格
- RS庫存編號:
- 244-4835P
- 製造零件編號:
- VCNL36825T
- 製造商:
- Vishay
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Vishay | |
| Product Type | Proximity Sensor | |
| Maximum Switching Frequency | 400kHz | |
| Maximum Output Current | 300μA | |
| Maximum Output Voltage | 3.6V | |
| Sensing Distance | 200mm | |
| Mount Type | Surface | |
| Package Type | Surface Mount | |
| Pin Count | 6 | |
| Height | 500μm | |
| Width | 1.25mm | |
| Length | 2mm | |
| Maximum Supply Voltage | 3.8V | |
| Series | VCNL36825T | |
| Maximum Operating Temperature | 85°C | |
| Minimum Supply Voltage | -0.3V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Vishay | ||
Product Type Proximity Sensor | ||
Maximum Switching Frequency 400kHz | ||
Maximum Output Current 300μA | ||
Maximum Output Voltage 3.6V | ||
Sensing Distance 200mm | ||
Mount Type Surface | ||
Package Type Surface Mount | ||
Pin Count 6 | ||
Height 500μm | ||
Width 1.25mm | ||
Length 2mm | ||
Maximum Supply Voltage 3.8V | ||
Series VCNL36825T | ||
Maximum Operating Temperature 85°C | ||
Minimum Supply Voltage -0.3V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
The Vishay proximity sensor (PS) and a VCSEL into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip by CMOS process. PS programmable interrupt features of individual high and low thresholds offers the best utilization of resource and power saving on the microcontroller.
Package type is surface mount
Interrupt function
1.6 mm single hole opening design
Low power consumption
Temperature compensation is -40 °C to +85 °C
