暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 175-5036
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Maximum Pressure Measurement | 5800psi | |
| Product Type | Pressure Sensor | |
| Pressure Reading Type | Gauge | |
| Minimum Pressure Measurement | 0psi | |
| Accuracy | ±0.25 % | |
| Output Type | Analogue | |
| Interface Type | 12-Pin Connector | |
| Terminal Type | M12 Connector | |
| Minimum Supply Voltage | 9V | |
| Series | RS PRO | |
| Maximum Supply Voltage | 32V dc | |
| Housing Material | Stainless Steel | |
| Standards/Approvals | CE EMC directive · EN 61326-1:2013 | |
| Mount Type | Threaded | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | 80°C | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Maximum Pressure Measurement 5800psi | ||
Product Type Pressure Sensor | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Measurement 0psi | ||
Accuracy ±0.25 % | ||
Output Type Analogue | ||
Interface Type 12-Pin Connector | ||
Terminal Type M12 Connector | ||
Minimum Supply Voltage 9V | ||
Series RS PRO | ||
Maximum Supply Voltage 32V dc | ||
Housing Material Stainless Steel | ||
Standards/Approvals CE EMC directive · EN 61326-1:2013 | ||
Mount Type Threaded | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP67 | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- BG

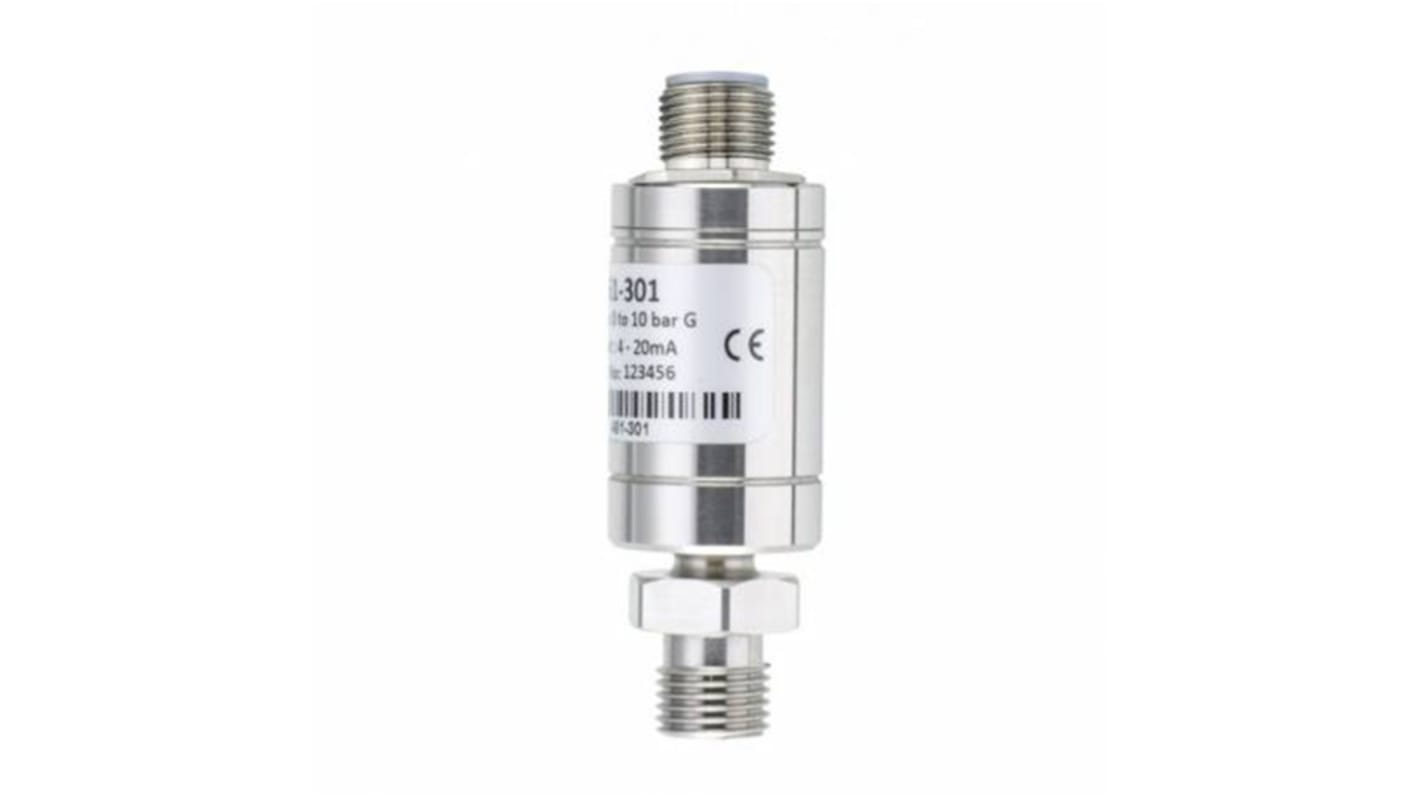

The IPSU-M12 series is suitable for use in a wide range of industrial applications. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially for industrial applications... Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*. Mating cable and plug assemblies are available.
Piezo-resistive thick film ceramic sensor
Stainless steel body
Accuracy <±0.25% FS BFSL
0-5V or 4-20mA outputs
Pressure ranges from -1 to 400 bar
M12 4-pin connector
