Panasonic 100 μF Through Hole Aluminium Polymer Capacitor, 72V
- RS庫存編號:
- 433-929P
- 製造零件編號:
- 72SXE100M
- 製造商:
- Panasonic

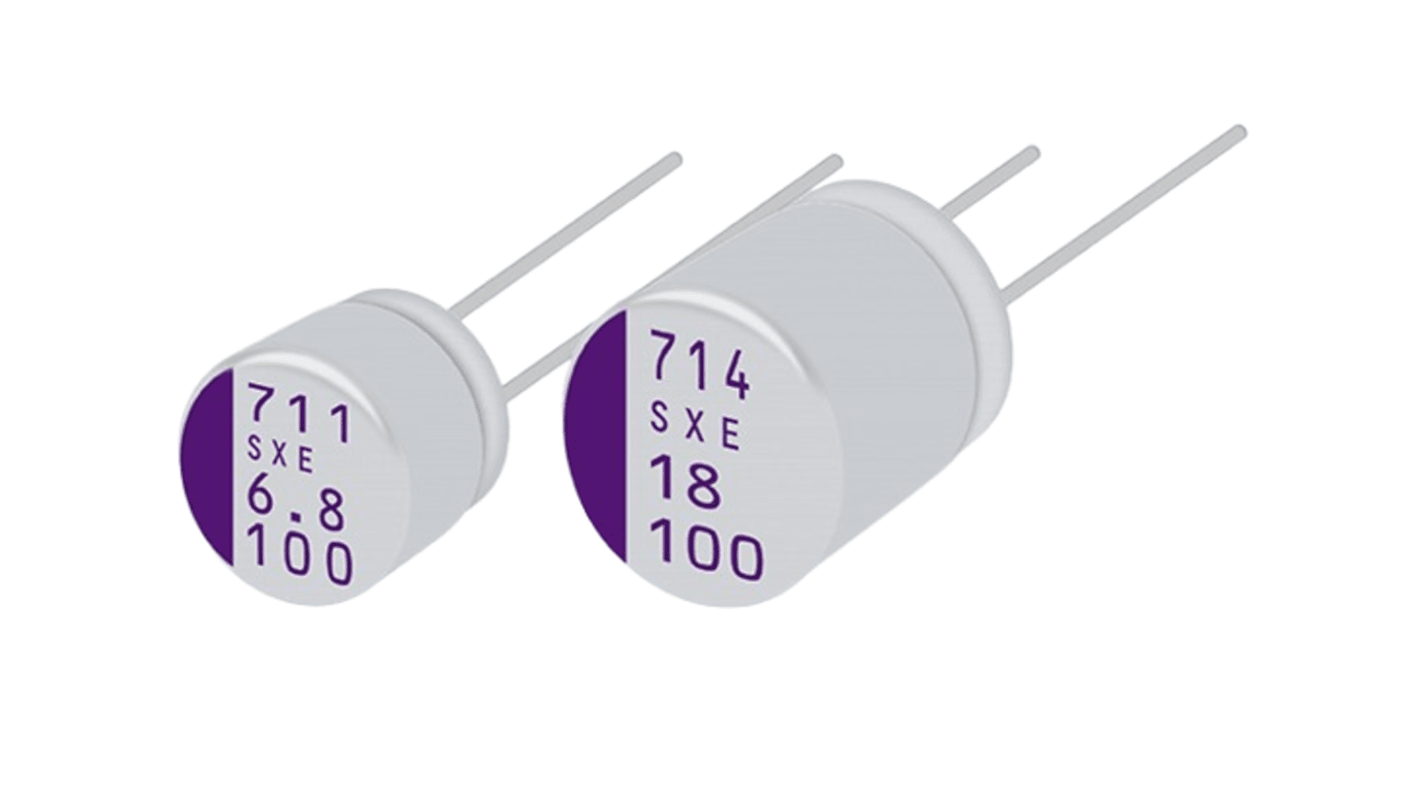

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計 25 件 (以袋裝提供)*
TWD2,675.00
(不含稅)
TWD2,808.75
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 395 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 25 + | TWD107.00 |
* 參考價格
- RS庫存編號:
- 433-929P
- 製造零件編號:
- 72SXE100M
- 製造商:
- Panasonic
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Panasonic | |
| Product Type | Aluminium Polymer Capacitor | |
| Technology | Conductive Polymer Aluminium Solid | |
| Capacitance | 100μF | |
| Voltage | 72V | |
| Mount Type | Through Hole | |
| Package/Case | F13 | |
| Polarity | Polar | |
| Lead Pitch | 5mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 10 x 13 mm | |
| Series | SXE | |
| Length | 13mm | |
| Leakage Current | 360μA | |
| Automotive Standard | No | |
| Diameter | 10mm | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 12% | |
| Ripple Current | 980mA | |
| Anti Vibration | Yes | |
| Lifetime | 1000 h | |
| 選取全部 | ||
|---|---|---|
品牌 Panasonic | ||
Product Type Aluminium Polymer Capacitor | ||
Technology Conductive Polymer Aluminium Solid | ||
Capacitance 100μF | ||
Voltage 72V | ||
Mount Type Through Hole | ||
Package/Case F13 | ||
Polarity Polar | ||
Lead Pitch 5mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 10 x 13 mm | ||
Series SXE | ||
Length 13mm | ||
Leakage Current 360μA | ||
Automotive Standard No | ||
Diameter 10mm | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 12% | ||
Ripple Current 980mA | ||
Anti Vibration Yes | ||
Lifetime 1000 h | ||
- COO (Country of Origin):
- JP
The Panasonic Conductive Polymer Aluminium Solid Capacitor designed for high reliability and performance in demanding applications. It features low equivalent series resistance (ESR), ensuring efficient power delivery and stability. It operates within a temperature range of -55°C to 125°C, making it suitable for extreme environments
Super high voltage
High Endurance of 1000 h
Radial Lead Type
RoHS compliance
Halogen free
