SMC 5.5 L/s 1/4 in Mist Separator, 0.3 μm filtration 1 Mpa
- RS庫存編號:
- 232-8655
- 製造零件編號:
- AWM30-F02BDE-R
- 製造商:
- SMC
不可供應
RS 不再對此產品進貨。
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
個
TWD4,962.00
(不含稅)
TWD5,210.10
(含稅)
- RS庫存編號:
- 232-8655
- 製造零件編號:
- AWM30-F02BDE-R
- 製造商:
- SMC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | SMC | |
| Port Size | 1/4 in | |
| Product Type | Mist Separator | |
| Maximum Flow Rate | 5.5L/s | |
| Filtration Size | 0.3μm | |
| Series | AWM20 | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 53mm | |
| Overall Height | 201mm | |
| Standards/Approvals | No | |
| Bowl Material | Polycarbonate | |
| 選取全部 | ||
|---|---|---|
品牌 SMC | ||
Port Size 1/4 in | ||
Product Type Mist Separator | ||
Maximum Flow Rate 5.5L/s | ||
Filtration Size 0.3μm | ||
Series AWM20 | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 53mm | ||
Overall Height 201mm | ||
Standards/Approvals No | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- JP

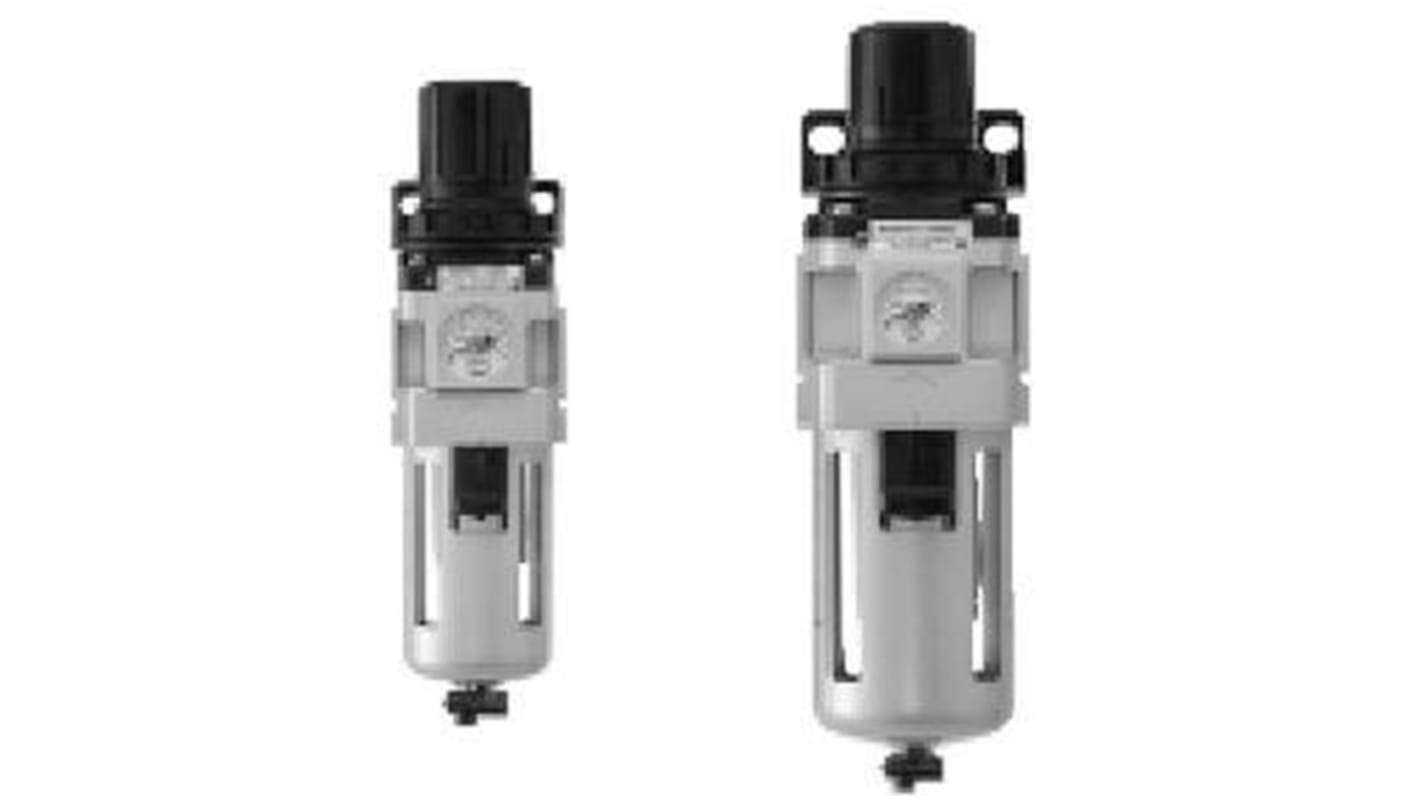

The SMC AWM series is made up of a regulator and a mist separator to provide optimum results in applications such as clean air blow operations
Nominal filtration rating 0.3 μm
Maximum operating pressure 1MPa
Ambient and fluid temperature from -5 to 60°C
