Schneider Electric Modicon M221 Series PLC CPU, Digital Output, 32-Input, Analogue Input

RS庫存編號:: 806-6878
製造零件編號:: TM221M32TK
製造商:: Schneider Electric

Schneider Electric Modicon M221 Series PLC CPU, Digital Output, 32-Input, Analogue Input

小計（1 件）*

TWD14,589.00

(不含稅)

TWD15,318.45

訂單超過 $1,300.00 免費送貨

有庫存

3 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD14,589.00

* 參考價格

RS庫存編號:: 806-6878
製造零件編號:: TM221M32TK
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Series	Modicon M221
	Product Type	PLC CPU
	Number of Inputs	32
	Output Type	Digital
	Input Type	Analogue
	Number of Outputs	16
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Length	90mm
	Standards/Approvals	CSA, CULus, EN/IEC 61010-2-201, EN/IEC 61131-2, IACS E10, RCM
	Depth	70mm
	Width	70mm
	Communication Port Type	USB
	Supply Voltage	24V dc
	Mount Type	Panel Mount
	Output Current	100mA
	Display Included	Yes
	Program Capacity	10000Steps
	Programming Language Used	CoDeSys
	Battery Backup	Yes

	選取全部
	品牌 Schneider Electric
	Series Modicon M221
	Product Type PLC CPU
	Number of Inputs 32
	Output Type Digital
	Input Type Analogue
	Number of Outputs 16
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Length 90mm
	Standards/Approvals CSA, CULus, EN/IEC 61010-2-201, EN/IEC 61131-2, IACS E10, RCM
	Depth 70mm
	Width 70mm
	Communication Port Type USB
	Supply Voltage 24V dc
	Mount Type Panel Mount
	Output Current 100mA
	Display Included Yes
	Program Capacity 10000Steps
	Programming Language Used CoDeSys
	Battery Backup Yes

登入下載 CAD 模型

COO (Country of Origin):: TW

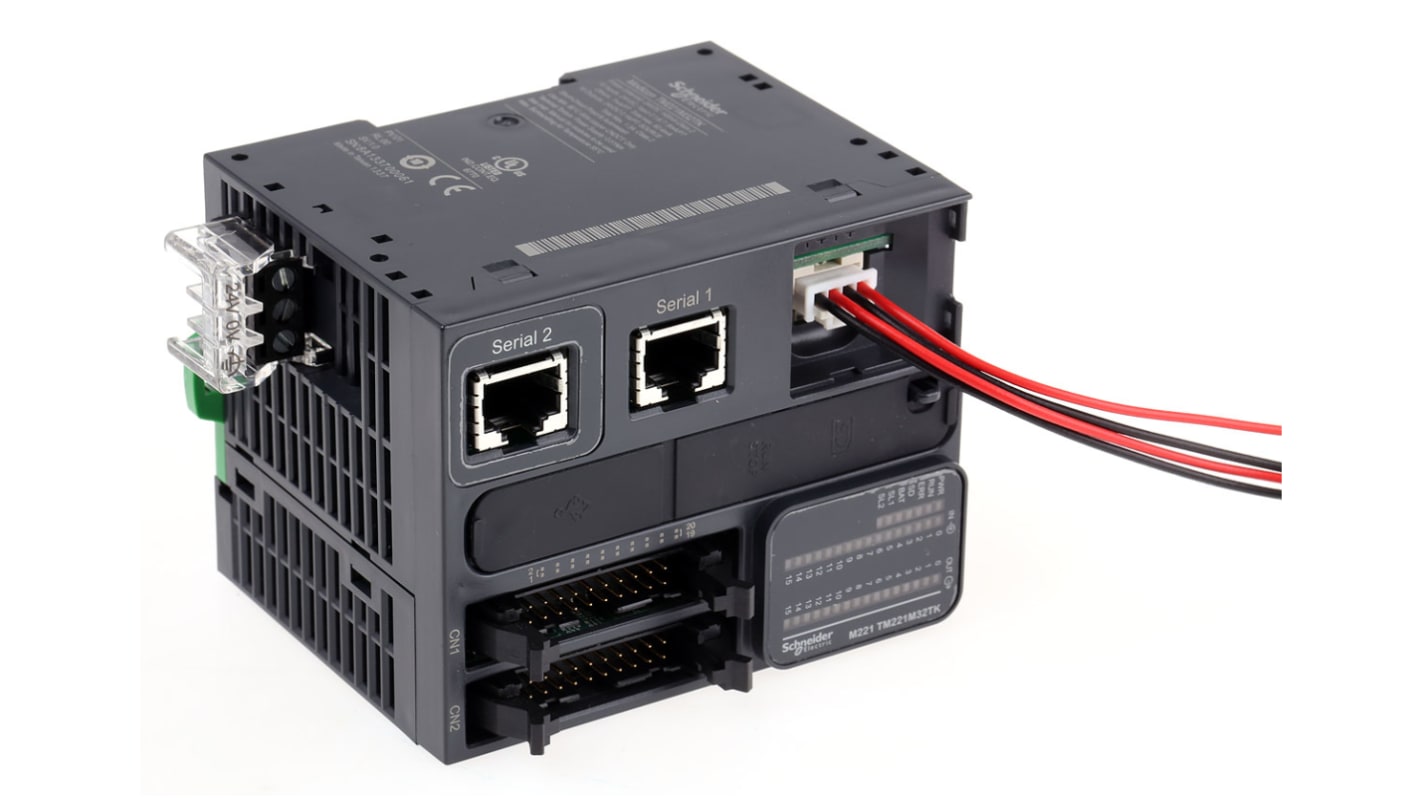

Schneider Electric PLC CPU, 32 I/O Ports, 256kB Programme Memory - Modicon M221M Series - TM221M32TK

Need a way to control your automated hardware from one place? This PLC CPU from Schneider Electric is fitted with 32 I/O ports, letting you send instructions to up to 16 machines at once for effective control. The unit's software comes with pre-defined functions for convenient system programming. With response times between 0.3 and 0.7ms, you can trust the device responds quickly to keep your system working as efficiently as possible.

Features & Benefits

• USB, Ethernet, Modbus and Profibus connectivity for wide compatibility with existing control systems

• Program memory of 256kB for executing complex functions

• Supports SD cards up to 2GB for convenient storage and importing

• Mechanical service life of 20,000,000 cycles for long-term system management

Applications

• Traffic management

• Packing and bottling

• Lighting fixtures

• Renewable energy industry

What kind of programming language does this PLC CPU use?

The CPU's built-in programming software uses a simple graphic-based ladder logic language for intuitive device control. This module comes with the option to switch to a text-based instruction list language, letting you customise the device to suit your level of expertise.
