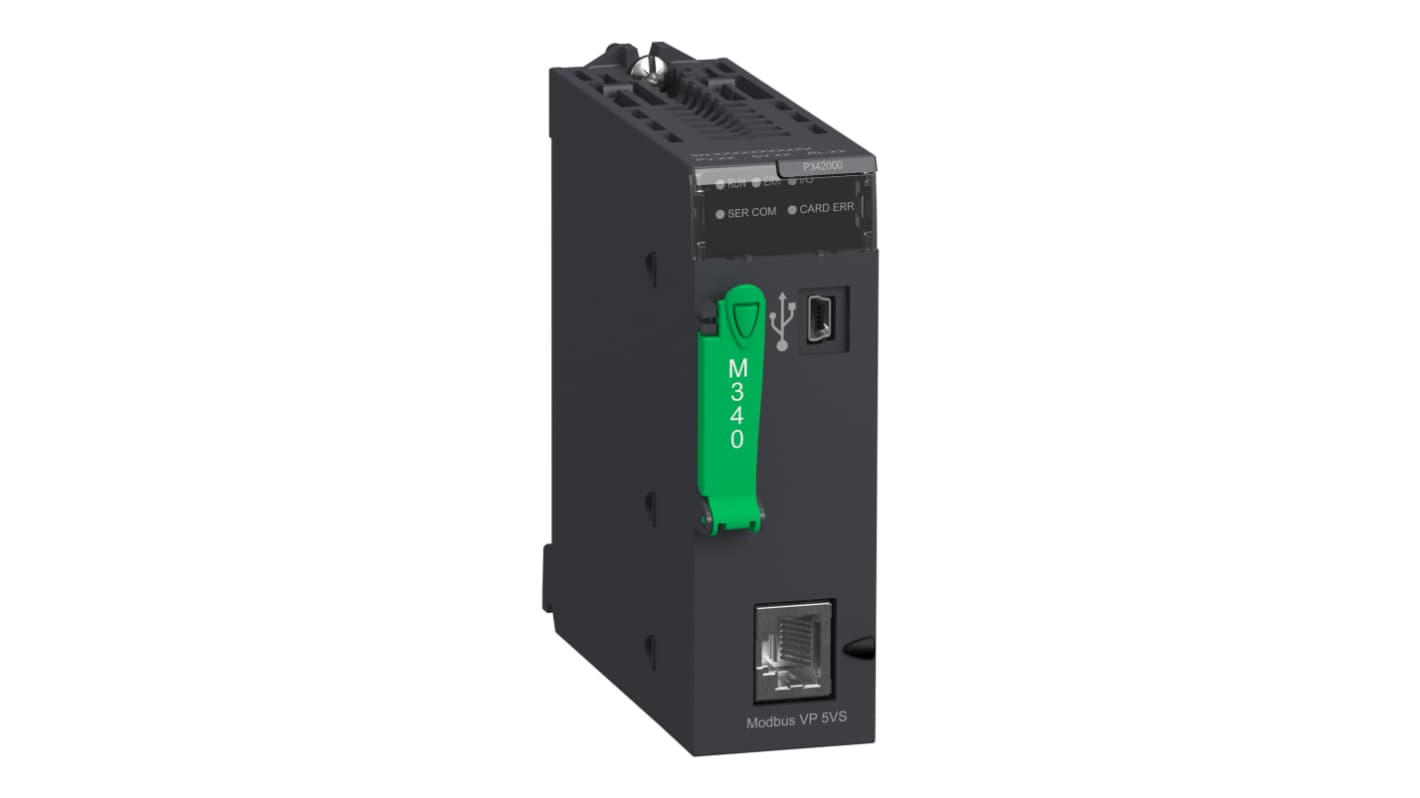

Schneider Electric Modicon M340 Series PLC CPU for Use with Modicon M340, Analogue, Digital Output, Analogue, Digital
- RS庫存編號:
- 681-8715
- Distrelec 貨號:
- 303-08-211
- 製造零件編號:
- BMXP342000
- 製造商:
- Schneider Electric
單價 個**
TWD28,472.00
(不含稅)
TWD29,895.60
(含稅)
1 在6 工作日內發貨 (海外庫存)*
2 在6 工作日內發貨 (海外庫存)
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 TWD2,857.00 (未稅) 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 + | TWD28,472.00 |
** 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 681-8715
- Distrelec 貨號:
- 303-08-211
- 製造零件編號:
- BMXP342000
- 製造商:
- Schneider Electric
- COO (Country of Origin):
- FR
Modicon M340 CPU, Level 2
Equipped with astounding memory and performances, this featherweight version will inspire your applications with new momentum. Designed to operate in total synergy with other Schneider Electric devices, Modicon M340 is a building block towards your total solution.
Discrete I/O modules
Analog I/O modules
Application-specific modules (counter)
Max 1,024 discrete I/O (704 in single-rack (64 I/O x 11))
Max 256 Analogue I/O. 66 in single-rack configuration (4I/2Q x 11)
36 counter channels
4,096Kb Total internal user RAM (3584Kb Program, constants and symbols + 256Kb Data)
Analog I/O modules
Application-specific modules (counter)
Max 1,024 discrete I/O (704 in single-rack (64 I/O x 11))
Max 256 Analogue I/O. 66 in single-rack configuration (4I/2Q x 11)
36 counter channels
4,096Kb Total internal user RAM (3584Kb Program, constants and symbols + 256Kb Data)
Standard and Performance processors from the Modicon M340 automation platform manage an entire PLC single-rack station on which a maximum of 11 slots can be equipped with:
Schneider Electric Modicon M340 Series PLC CPU, 33mm Length, Ethernet Network - BMXP342000
This PLC CPU is a key component of the Modicon M340 automation platform, providing efficient control and monitoring of industrial processes. It is designed to satisfy the requirements of automation in the electrical and mechanical sectors, integrating smoothly with various systems for dependable performance.
Features & Benefits
• Supports up to 1024 discrete and 256 analogue I/O for flexible control
• Communication options include USB, RJ45, RS232C, and RS485
• Operates on a 24V DC supply, ensuring stable performance
• Equipped with a substantial 2048 kB memory for extensive programme storage
• Programmemable loops enhance management of complex processes
• Communication options include USB, RJ45, RS232C, and RS485
• Operates on a 24V DC supply, ensuring stable performance
• Equipped with a substantial 2048 kB memory for extensive programme storage
• Programmemable loops enhance management of complex processes
Applications
• Used in industrial automation for efficient process control
• Compatible with Modicon M340 for improved operational capabilities
• Suitable for monitoring and diagnostics in intricate systems
• Ideal for a range of requiring both digital and analogue inputs
• Compatible with Modicon M340 for improved operational capabilities
• Suitable for monitoring and diagnostics in intricate systems
• Ideal for a range of requiring both digital and analogue inputs
What types of input and output does it support?
It supports both digital and analogue input/output, allowing for varied configuration based on operational needs.
How does one connect to the device?
Connections can be established via multiple ports, including USB and serial links like RS232C and RS485, accommodating various devices.
What is the maximum operating temperature for usage?
The device operates within a temperature range of 0°C to +60°C, enabling function in diverse environments.
Can this be integrated into existing systems?
Yes, it can be integrated with other Modicon M340 components and devices using standard communication protocols such as Modbus.
What is the power consumption for the unit?
The unit consumes 72 mA at 24V DC, ensuring efficient energy usage during operation.
Schneider Electric Modicon M340 PLC
Equipped with astounding memory and performances, this featherweight version will inspire your applications with new momentum. Designed to operate in total synergy with other Schneider Electric devices, Modicon M340 a building block towards your total solution.
Performance
Data rate: 20kb/s to 1Mb/s (bus length dependent)
Internal RAM capacity: 4Mb (3584kb of program memory); 256kb of data memory
Internal RAM capacity: 4Mb (3584kb of program memory); 256kb of data memory
Compact design
3 communication ports integrated in the processor
Mounting in low depth cabinet (<150mm)
High-density discrete I/O modules with 64 channels in a 32mm wide format
Mounting in low depth cabinet (<150mm)
High-density discrete I/O modules with 64 channels in a 32mm wide format
Communicative, with its integrated ports
CANopen machine and installation bus
Ethernet TCP/IP network - Transparent Ready
Modbus serial link or character mode
Remote access via STN, GSM, Radio or ADSL
Ethernet TCP/IP network - Transparent Ready
Modbus serial link or character mode
Remote access via STN, GSM, Radio or ADSL
Expert
Counter modules with ready-to-use functions
Function block library dedicated to motion control. MF(Motion Function Blocks) to the PLCopen standard
Advanced library of process control blocks oriented towards control of machinery
Function block library dedicated to motion control. MF(Motion Function Blocks) to the PLCopen standard
Advanced library of process control blocks oriented towards control of machinery
Innovative and Ruggedness
USB port as standard
Embedded webserver
Recipe file management via FTP protocol
“Plug and Load” SD memory card
No batteries
Rack architecture enabling hot swapping of modules during operation (Hot-Swap)
Exceeds the standards in terms of shocks, vibrations, temperature, altitude and withstand to electrical interference.
Embedded webserver
Recipe file management via FTP protocol
“Plug and Load” SD memory card
No batteries
Rack architecture enabling hot swapping of modules during operation (Hot-Swap)
Exceeds the standards in terms of shocks, vibrations, temperature, altitude and withstand to electrical interference.
Ruggedness
屬性 | 值 |
|---|---|
| Manufacturer Series | Modicon M340 |
| Output Type | Analogue, Digital |
| For Use With | Modicon M340 |
| Input Type | Analogue, Digital |
| Voltage Category | 24 V dc |
| Network Type | Ethernet |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Program Capacity | 1792 kB |
| Memory | 2048 kB |
| Width | 100mm |
| Minimum Operating Temperature | 0°C |
| Number of Communication Ports | 3 |
| Display Included | No |
| Communication Port Type | RJ45, RS232C, RS485, USB |
| Maximum Operating Temperature | +60°C |
| Length | 33mm |
