Schneider Electric Zelio Logic Series Logic Module, Relay Output, 12-Input, Discrete Input
- RS庫存編號:
- 479-6121
- Distrelec 貨號:
- 303-04-780
- 製造零件編號:
- SR2B201B
- 製造商:
- Schneider Electric
小計（1 件）*
TWD11,103.00
(不含稅)
TWD11,658.15
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 9 件準備從其他地點送貨
- 加上 5 件從 2026年6月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD11,103.00 |
* 參考價格
- RS庫存編號:
- 479-6121
- Distrelec 貨號:
- 303-04-780
- 製造零件編號:
- SR2B201B
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Series | Zelio Logic | |
| Product Type | Logic Module | |
| Number of Inputs | 12 | |
| Output Type | Relay | |
| Input Type | Discrete | |
| Number of Outputs | 8 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Depth | 59.5mm | |
| Length | 124.6mm | |
| Width | 107.6mm | |
| Standards/Approvals | UL, CSA, GL, IEC | |
| Programming Language Used | Ladder Logic, FBD, Sequential function chart (SFC) | |
| Mount Type | DIN Rail | |
| Supply Voltage | 24V ac | |
| Communication Port Type | GSM Modems | |
| Display Included | Yes | |
| Battery Backup | Yes | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Series Zelio Logic | ||
Product Type Logic Module | ||
Number of Inputs 12 | ||
Output Type Relay | ||
Input Type Discrete | ||
Number of Outputs 8 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Depth 59.5mm | ||
Length 124.6mm | ||
Width 107.6mm | ||
Standards/Approvals UL, CSA, GL, IEC | ||
Programming Language Used Ladder Logic, FBD, Sequential function chart (SFC) | ||
Mount Type DIN Rail | ||
Supply Voltage 24V ac | ||
Communication Port Type GSM Modems | ||
Display Included Yes | ||
Battery Backup Yes | ||
豁免
- COO (Country of Origin):
- FR

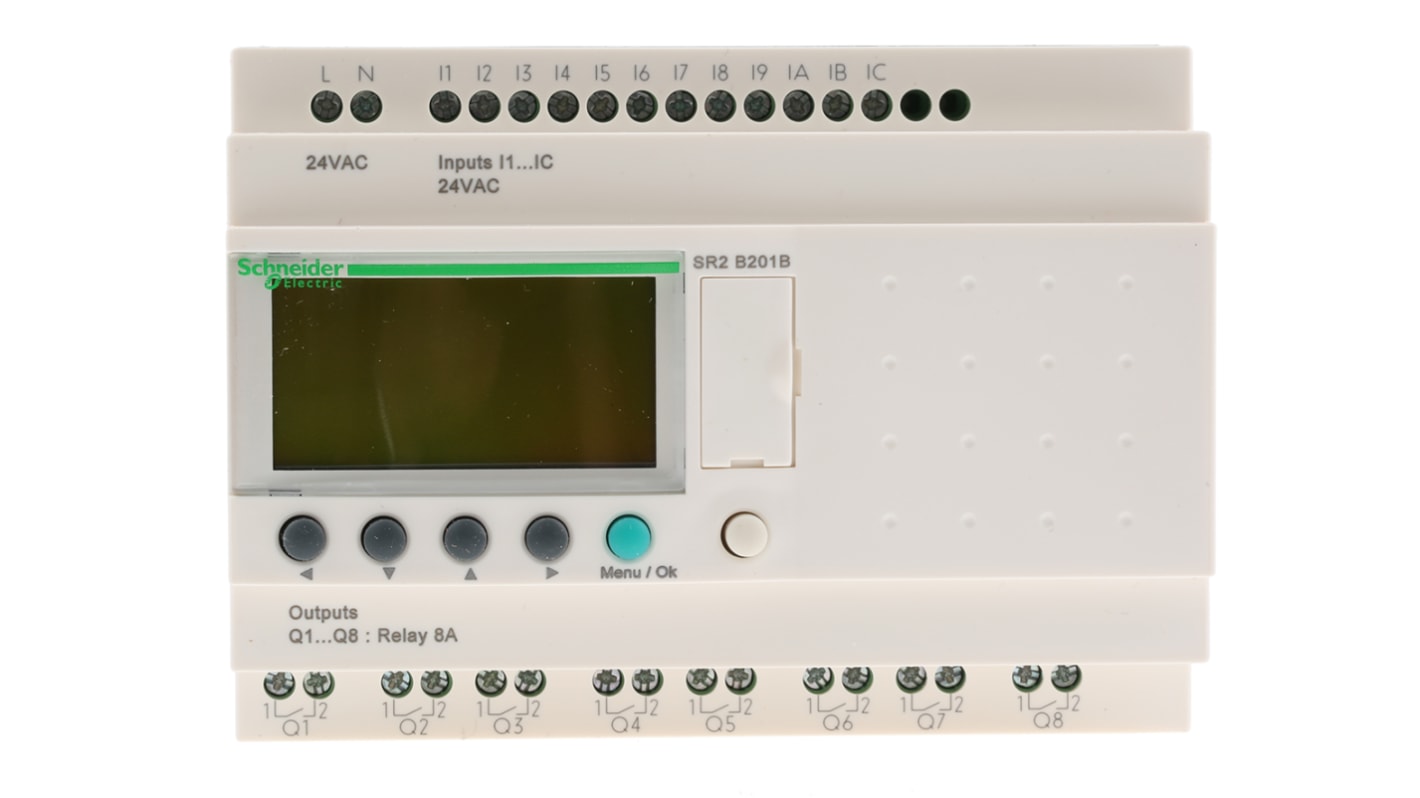

Schneider Electric Logic Module, 24V AC Supply Voltage, 233mA Supply Current - Zelio Logic Series - SR2B201B
Automate your industrial equipment's functions with this compact logic controller from Schneider Electric. It works by issuing commands to various parts of the machine it's linked to based on input signals it receives from connected sensors and actuators. The unit has a backlit LCD (liquid-crystal display) screen that you can use to monitor its function even in darker workplaces. Thanks to an operating interface that's easy to manage, you can run simulations and coherence testing on the device to ensure you have complete control over your setup.
Features & Benefits
• Low current consumption of 233mA for energy efficiency
• Can be linked with other logic modules for enhanced productivity
• Modbus and Industrial Ethernet compatible for remote monitoring and control
• Broad thermal tolerance range of -20°C to +55°C for use in demanding environments
• Easy DIN rail mounting saves time and effort
Applications
• Household appliances
• Robotics and automation
• Process and packaging industries
What's the MTBF of this logic controller?
The mean time between failures (MTBF) of this logic controller is 10,000,000 cycles. This means you can rely on it for long-term performance.
