Schneider Electric Zelio Logic Series Logic Module, 8-Input, Discrete Input, 4 Outputs, Relay Output

RS庫存編號:: 468-4450
Distrelec 貨號:: 302-37-525
製造零件編號:: SR2B121FU
製造商:: Schneider Electric

Schneider Electric Zelio Logic Series Logic Module, 8-Input, Discrete Input, 4 Outputs, Relay Output

小計（1 件）*

TWD9,554.00

(不含稅)

TWD10,031.70

訂單超過 $1,300.00 免費送貨

有庫存

16 件準備從其他地點送貨
加上 6 件從 2026年9月18日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD9,554.00

* 參考價格

RS庫存編號:: 468-4450
Distrelec 貨號:: 302-37-525
製造零件編號:: SR2B121FU
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Product Type	Logic Module
	Series	Zelio Logic
	Number of Inputs	8
	Output Type	Relay
	Input Type	Discrete
	Number of Outputs	4
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Depth	59.5mm
	Length	71.2mm
	Width	107.6mm
	Standards/Approvals	GL, C-Tick, CSA, UL, GOST
	Programming Language Used	FBD, Ladder Logic, Sequential function chart (SFC)
	Supply Voltage	120, 240V ac
	Battery Backup	Yes
	Display Included	Yes
	Mount Type	DIN Rail

	選取全部
	品牌 Schneider Electric
	Product Type Logic Module
	Series Zelio Logic
	Number of Inputs 8
	Output Type Relay
	Input Type Discrete
	Number of Outputs 4
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Depth 59.5mm
	Length 71.2mm
	Width 107.6mm
	Standards/Approvals GL, C-Tick, CSA, UL, GOST
	Programming Language Used FBD, Ladder Logic, Sequential function chart (SFC)
	Supply Voltage 120, 240V ac
	Battery Backup Yes
	Display Included Yes
	Mount Type DIN Rail

登入下載 CAD 模型

豁免

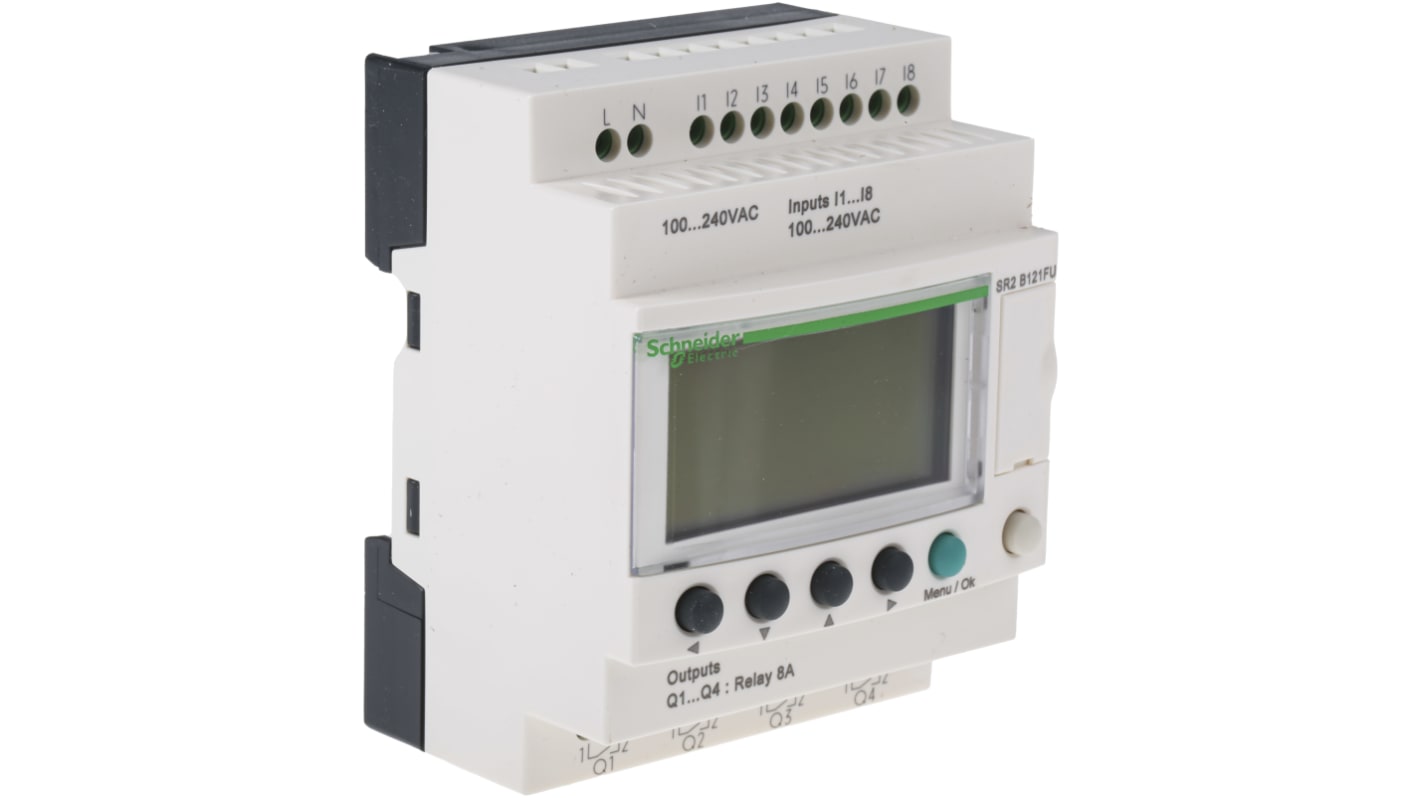

Schneider Electric Logic Module, 8 Inputs, 4 Outputs - Zelio Logic Series - SR2B121FU

Meet your automation control needs with this logic module from Schneider Electric. The compact unit is easily clipped onto your DIN rail or mounted directly onto a panel via screws. Once the unit's in position, you can choose between popular programming languages to set up your relay automation. Ladder Logic, FBD (function block diagram) and sequential function chart can all be used, depending on your preference. The digital display is backlit for easy programming on-site. Alternatively, connect your PC or laptop using the built-in port on the front of the panel.

Features & Benefits

• Stores 10 years of data

• Any stored programme can be copied onto another smart relay to repeat functionality

• Operates safely between temperatures of -20°C to +55°C for use in demanding environments

• Free Zelio Logic software makes programming straightforward

Applications

• HVAC (heating, ventilation and air conditioning) systems

• Automation of assembly equipment

• Lighting control

What functions does this logic module have?

This easily programmable interface lets you run coherence testing, simulations and monitoring modes. As a result, you'll have complete control over your electrical devices.

Standards

EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 level 3,, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, IP20. IP40
