WAGO PFC200 Series Communication Module, 4-Input

查看此類別

小計（1 件）*

TWD42,117.00

(不含稅)

TWD44,222.85

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 2 件準備從其他地點送貨
  • 加上 3 件從 2026年5月07日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +TWD42,117.00

* 參考價格

RS庫存編號:
279-3049
Distrelec 貨號:
303-73-055
製造零件編號:
750-8210
製造商:
WAGO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

WAGO

Series

PFC200

Product Type

Communication Module

Number of Inputs

4

Minimum Operating Temperature

0°C

Maximum Operating Temperature

55°C

Width

78.6 mm

Length

71.9mm

Depth

100mm

Standards/Approvals

DNV, KC, IEC 61850, IEC 61131-2, BSH, LR, PRS, ABS, RINA, UKCA, UL, BV, CE, DNP3, IEC 60068-2-42 and IEC 60068-2-43, IEC 60068-2-27, EN 61000-6-3, EN 61000-6-2, EAC, IEC 60870, IEC 60068-2-6, KR

Mount Type

DIN Rail

Supply Voltage

24 V

Programming Language Used

Sequential function chart (SFC), Instruction List (IL), Structured Text (ST), Function Block Diagram (FBD), Ladder Diagram (LD), Continuous Function Chart (CFC)

Communication Port Type

slave, Modbus TCP master, Wago App Plc Modbus Library Modbus (RTU)

Program Capacity

32MB

COO (Country of Origin):
DE

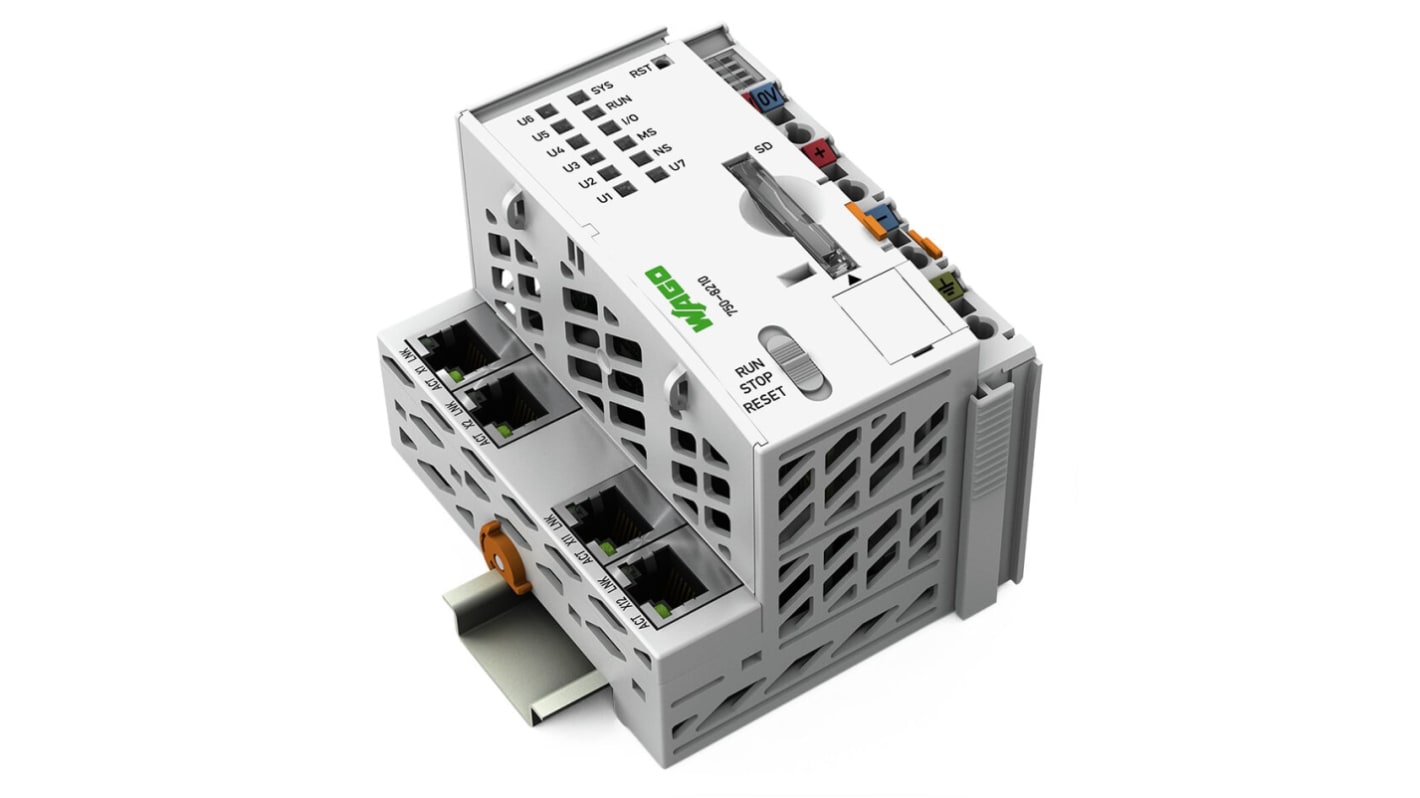

The WAGO PFC200 controller is a compact PLC for the modular I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty modules found within the 750/753 Series. Two ETHERNET interfaces and an integrated switch enable line topology wiring. An integrated webserver provides user configuration options, while displaying PFC200 status information. Besides the processing industry and building automation, typical applications for the PFC200 include standard machinery and equipment control.

Programming per IEC 61131-3

Linux operating system with RT pre-empt patch

Configuration via CODESYS or web based management user interface

Maintenance free
