Siemens SIMATIC S7-1500F Series PLC CPU for Use with SIMATIC S7-1500 Series, CPU Output, 20-Input
- RS庫存編號:
- 243-4009
- 製造零件編號:
- 6ES7515-2FM02-0AB0
- 製造商:
- Siemens
庫存資訊目前無法查詢
- RS庫存編號:
- 243-4009
- 製造零件編號:
- 6ES7515-2FM02-0AB0
- 製造商:
- Siemens
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Siemens | |
| Manufacturer Series | SIMATIC S7-1500F | |
| Number of Inputs | 20 | |
| Output Type | CPU | |
| For Use With | SIMATIC S7-1500 Series | |
| Number of Digital Inputs | 20 | |
| Voltage Category | 24 V DC | |
| Number of Outputs | 20 | |
| Network Type | Profinet | |
| Number of Digital Outputs | 20 | |
| Kit Included | No | |
| Interface | PROFINET | |
| Minimum Operating Temperature | -40°C | |
| Battery Backup | No | |
| Width | 70mm | |
| Programming Language Used | CFC, FBD, GRAPH, Ladder Logic, SCL, STL | |
| Communication Port Type | MODBUS | |
| Depth | 129mm | |
| Display Included | Yes | |
| Programming Interface | Profinet | |
| Program Capacity | 750 kB | |
| Maximum Operating Temperature | +70°C | |
| Dimensions | 70 x 129 x 147 mm | |
| Memory | 32 GB | |
| 選取全部 | ||
|---|---|---|
品牌 Siemens | ||
Manufacturer Series SIMATIC S7-1500F | ||
Number of Inputs 20 | ||
Output Type CPU | ||
For Use With SIMATIC S7-1500 Series | ||
Number of Digital Inputs 20 | ||
Voltage Category 24 V DC | ||
Number of Outputs 20 | ||
Network Type Profinet | ||
Number of Digital Outputs 20 | ||
Kit Included No | ||
Interface PROFINET | ||
Minimum Operating Temperature -40°C | ||
Battery Backup No | ||
Width 70mm | ||
Programming Language Used CFC, FBD, GRAPH, Ladder Logic, SCL, STL | ||
Communication Port Type MODBUS | ||
Depth 129mm | ||
Display Included Yes | ||
Programming Interface Profinet | ||
Program Capacity 750 kB | ||
Maximum Operating Temperature +70°C | ||
Dimensions 70 x 129 x 147 mm | ||
Memory 32 GB | ||
- COO (Country of Origin):
- DE

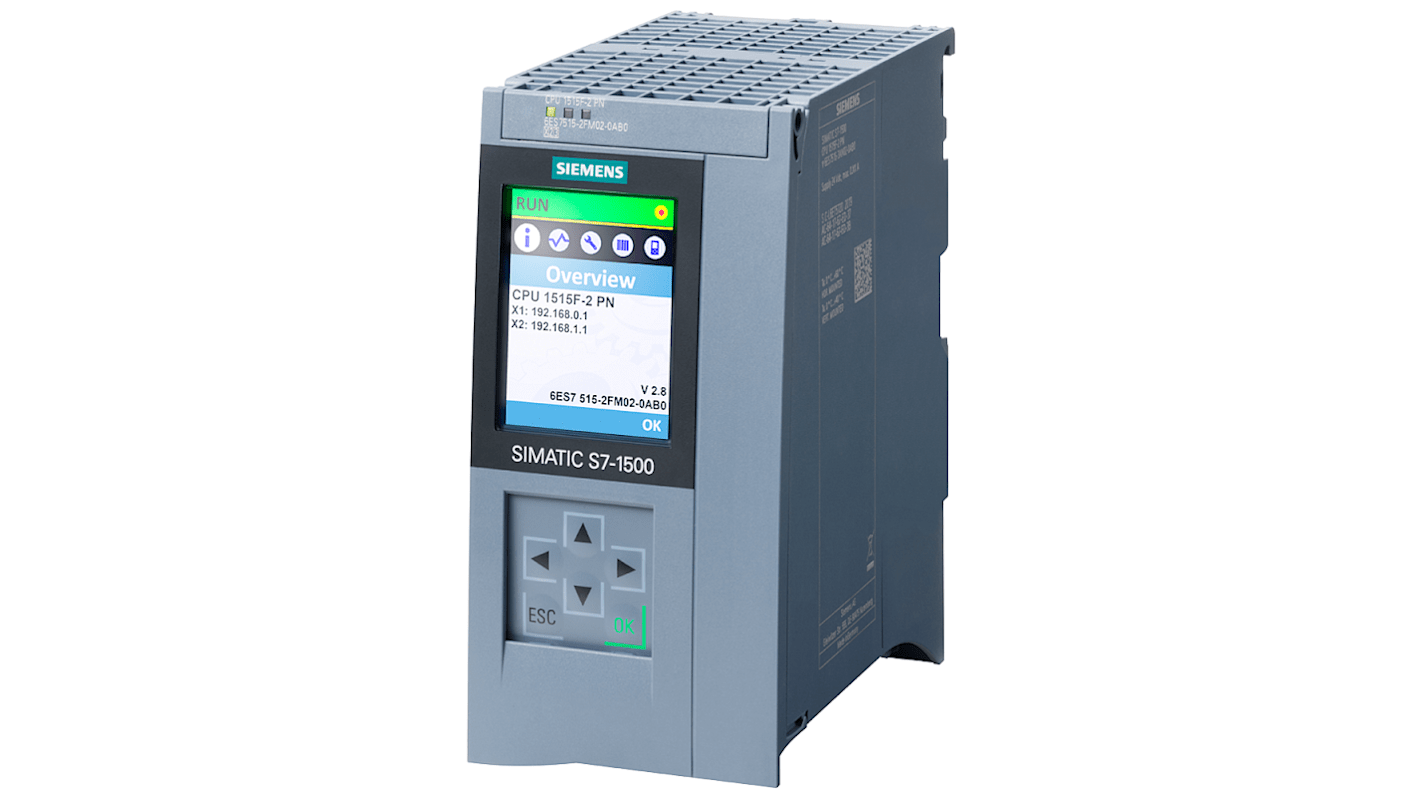

Siemens PLC CPU, 24V DC Supply Voltage, 0.8A Current Consumption - SIMATIC S7-1500F Series - 6ES7515-2FM02-0AB0
Want an automated system that runs like clockwork? Pick up this PLC CPU from Siemens. It's a versatile device with two PROFINET ports, plus an RJ45 interface and compatibility with an IPv4 protocol. As the unit has 20 inputs and outputs, it's up to the job of managing multiple devices to boost productivity. To expand your setup, you can combine it with other devices from the SIMATIC S7-1500 series, such as the counting module (236-8554). You'll find CPUs like this one managing complex processes like electronics manufacture or food production.
Features & Benefits
• Maintenance-free to save you time and effort
• 6.1cm display screen for easy reading of data and settings
• Low 830g weight keeps load minimal
• Password-protected access for security
• Reliable performance in temperatures between -25°C and +60°C to suit harsh settings
• 6.1cm display screen for easy reading of data and settings
• Low 830g weight keeps load minimal
• Password-protected access for security
• Reliable performance in temperatures between -25°C and +60°C to suit harsh settings
Do I need to add a memory card?
Yes, you'll need a SIMATIC memory card, which adds up to 32Gbytes of storage to your PLC CPU. You can easily install it using the inbuilt memory card slot.
How do I navigate through settings?
This CPU has eight front-facing keys and two mode-selecting buttons so it's easy to cycle through settings.
