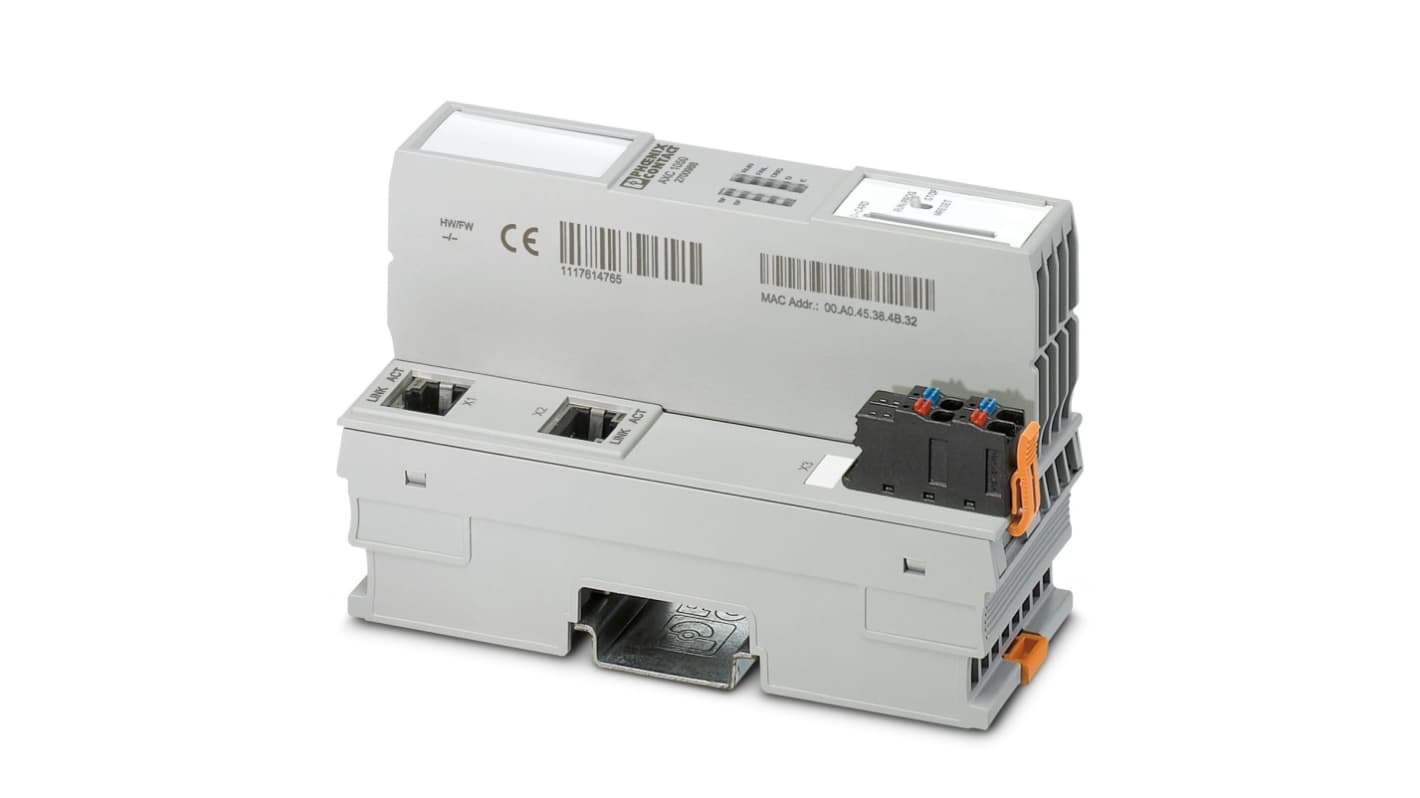

Phoenix Contact AXC 1050 Series PLC CPU, Digital Input
- RS庫存編號:
- 212-7353
- Distrelec 貨號:
- 302-39-101
- 製造零件編號:
- 2700988
- 製造商:
- Phoenix Contact
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 212-7353
- Distrelec 貨號:
- 302-39-101
- 製造零件編號:
- 2700988
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Product Type | PLC CPU | |
| Series | AXC 1050 | |
| Input Type | Digital | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 74mm | |
| Length | 126.1mm | |
| Standards/Approvals | EN 61000-4-3/IEC 61000-4-3, EN 61000-4-2/IEC 61000-4-2, EMC Directive 2014/30/EU, EN 61000-4-6/IEC 61000-4-6, EN 61000-6-3 Class B, EN 61000-4-4/IEC 61000-4-4, EN 61000-4-5/IEC 61000-4-5, EN 61000-6-2 | |
| Width | 45mm | |
| Mount Type | DIN Rail | |
| Number of Communication Ports | 4 | |
| Program Capacity | 2MB | |
| Display Included | No | |
| Output Current | 550mA | |
| Communication Port Type | Axioline F local bus, Ethernet, Service (Micro USB type B) | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Product Type PLC CPU | ||
Series AXC 1050 | ||
Input Type Digital | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Depth 74mm | ||
Length 126.1mm | ||
Standards/Approvals EN 61000-4-3/IEC 61000-4-3, EN 61000-4-2/IEC 61000-4-2, EMC Directive 2014/30/EU, EN 61000-4-6/IEC 61000-4-6, EN 61000-6-3 Class B, EN 61000-4-4/IEC 61000-4-4, EN 61000-4-5/IEC 61000-4-5, EN 61000-6-2 | ||
Width 45mm | ||
Mount Type DIN Rail | ||
Number of Communication Ports 4 | ||
Program Capacity 2MB | ||
Display Included No | ||
Output Current 550mA | ||
Communication Port Type Axioline F local bus, Ethernet, Service (Micro USB type B) | ||
- COO (Country of Origin):
- DE
The Phoenix Contact AXC 1050 modular small-scale controller for the Axioline I/O system is fast, robust, and easy i.e. it is consistently designed for maximum performance, easy handling, and use in harsh industrial environment.
Ambient temperature -25 °C to 60 °C
Degree of protection IP20
