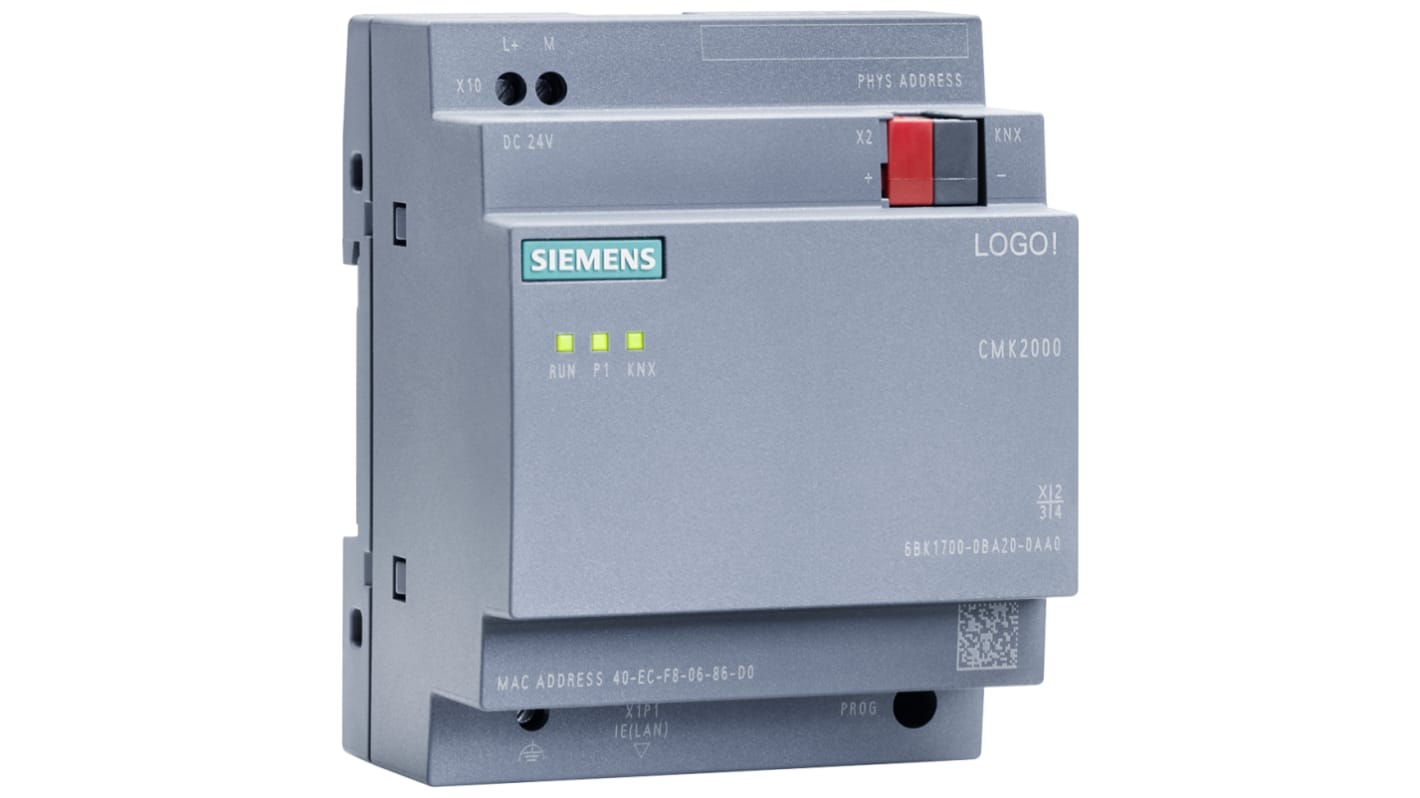

Siemens LOGO! Series Communication Module for Use with LOGO! 8, LOGO! 8.2, 24 V dc Supply, Digital Output, 2-Input,

查看此類別

小計（1 件）*

TWD14,352.00

(不含稅)

TWD15,069.60

(含稅)

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 +TWD14,352.00

* 參考價格

RS庫存編號:
159-6329
Distrelec 貨號:
300-44-900
製造零件編號:
6BK1700-0BA20-0AA0
製造商:
Siemens
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Siemens

Manufacturer Series

LOGO!

Number of Inputs

2

Output Type

Digital

For Use With

LOGO! 8, LOGO! 8.2

Supply Voltage

24 V dc

Input Type

Digital

Number of Outputs

2

Network Type

Ethernet

Interface

Ethernet

Communication Port Type

EIB/KNX, Ethernet, RJ45

Display Included

No

Length

71.5mm

Width

90mm

Maximum Operating Temperature

+55°C

Number of Communication Ports

4

Mounting Type

DIN Rail

Depth

58.5mm

Standards Met

EN 55 011, EN 61000-6-3

Minimum Operating Temperature

0°C

Dimensions

71.5 x 90 x 58.5 mm

COO (Country of Origin):
DE

Siemens LOGO! Series Communication Module, DIN Rail Mount, 71.5x90x58.5 mm - 6BK1700-0BA20-0AA0


This communication module enables effective integration within building automation systems. Supporting Ethernet and KNX/EIB protocols, it provides reliable communication solutions for industrial automation applications. Designed for efficiency, it allows time-of-day synchronisation and easy configuration via a web interface, making it a significant component for modern automation requirements.

Features & Benefits


• Provides 4 communication ports for extensive connectivity
• Supports firmware updates for continued usability
• Compact design suitable for 35mm DIN rail mounting optimises installation space
• Diagnostic indications with RUN/STOP LED facilitate operational monitoring

Applications


• Suitable for industrial environments needing robust communication solutions
• Utilised for system diagnostics and configuration via web-based interfaces
• Essential for synchronised clock functions

What supply voltage is required for operation?


The module operates on a rated supply voltage of 24V DC, with permissible limits of 19.2V to 28.8V DC.

How many digital inputs and outputs does it have?


It features 2 digital inputs and 2 digital outputs for flexible control.

What is the maximum ambient temperature during operation?


The module functions effectively within an ambient temperature range of 0°C to +55°C.
