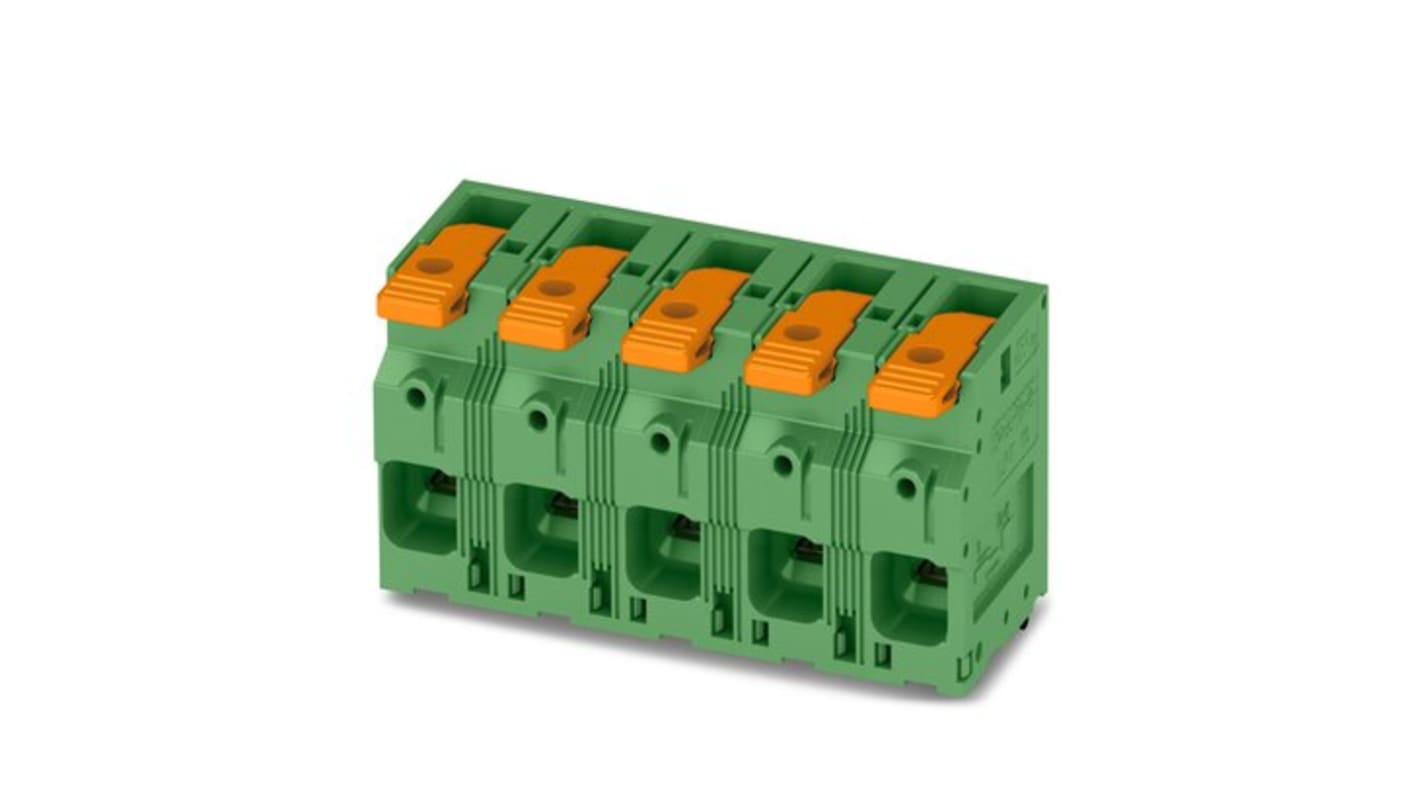

Phoenix Contact PCB Terminal Block, 5-Contact, 15 mm Pitch, Through Hole, 1 Row

RS庫存編號:: 249-2993
製造零件編號:: 1119821
製造商:: Phoenix Contact

Phoenix Contact PCB Terminal Block, 5-Contact, 15 mm Pitch, Through Hole, 1 Row

小計（1 包，共 25 件）*

TWD13,117.50

(不含稅)

TWD13,773.50

庫存資訊目前無法存取 - 請稍後再回來查看

單位	每單位	每包*
25 +	TWD524.70	TWD13,117.50

* 參考價格

RS庫存編號:: 249-2993
製造零件編號:: 1119821
製造商:: Phoenix Contact

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Phoenix Contact
	Number of Contacts	5
	Product Type	PCB Terminal Block
	Pitch	15mm
	Number of Rows	1
	Current	76A
	Mount Type	Through Hole
	Minimum Wire Size mm²	0.75mm²
	Maximum Wire Size mm²	16mm²
	Minimum Wire Size AWG	18AWG
	Maximum Wire Size AWG	4AWG
	Orientation	Straight
	Colour	Green
	Wire Connection Method	Push-in
	Voltage	1000V
	Length	32mm
	Depth	39.6mm
	Standards/Approvals	RoHS
	Width	71.9mm

	選取全部
	品牌 Phoenix Contact
	Number of Contacts 5
	Product Type PCB Terminal Block
	Pitch 15mm
	Number of Rows 1
	Current 76A
	Mount Type Through Hole
	Minimum Wire Size mm² 0.75mm²
	Maximum Wire Size mm² 16mm²
	Minimum Wire Size AWG 18AWG
	Maximum Wire Size AWG 4AWG
	Orientation Straight
	Colour Green
	Wire Connection Method Push-in
	Voltage 1000V
	Length 32mm
	Depth 39.6mm
	Standards/Approvals RoHS
	Width 71.9mm

The Phoenix Contact single row, 15 mm pitch, 5 positions PCB terminal block has Zigzag pinning W Pin layout and lever Push-in connection with contact material made of Cu alloy. It has 76 A nominal current & 1000v nominal voltage.

Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules

Clear lever positions provide reliable feedback on opened or closed clamping spaces

Defined contact force ensures that contact remains stable over the long term

Time-saving push-in connection when lever is closed

Intuitive operation

UL Recognized / cULus Recognized
