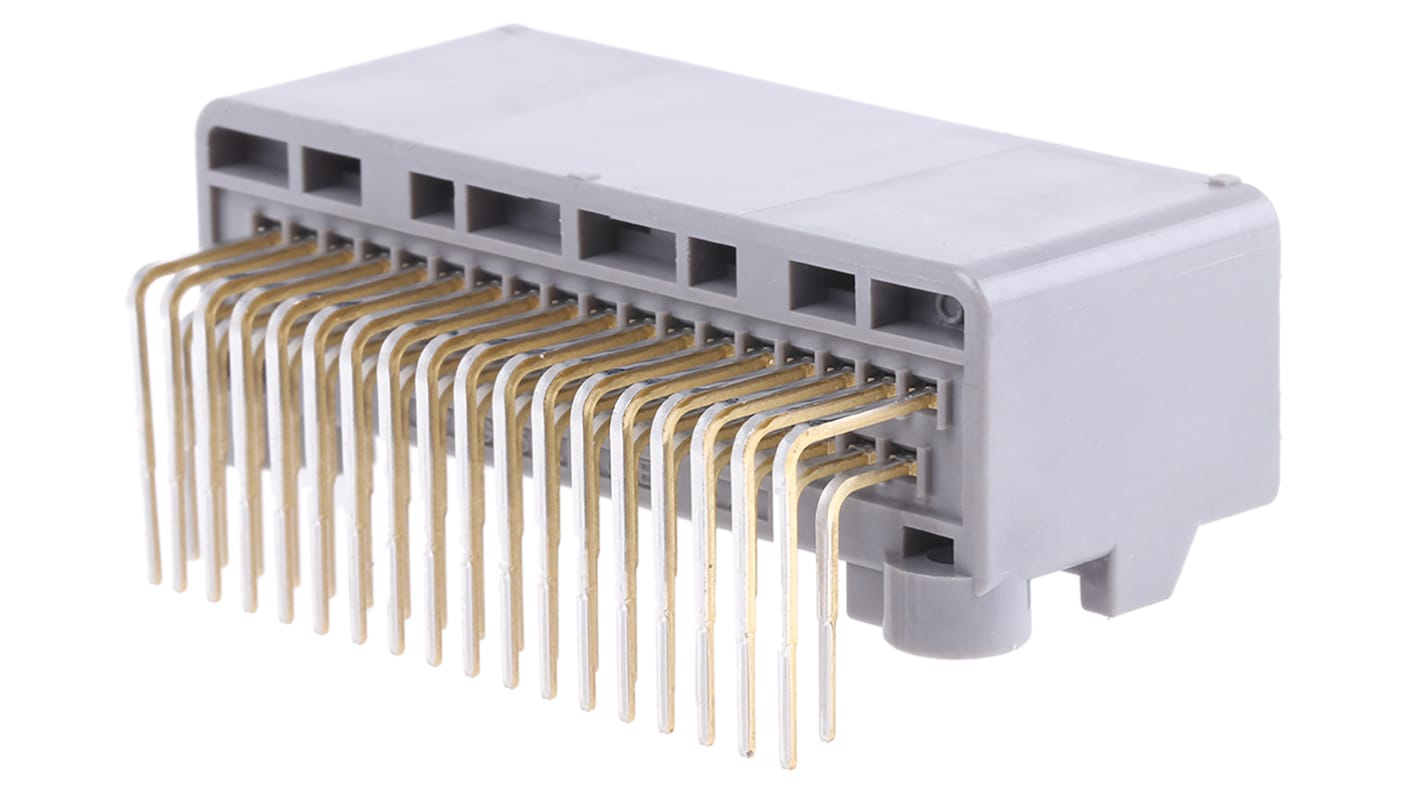

JAE MX34 Series Right Angle Through Hole PCB Header, 36 Contact(s), 2.2 mm Pitch, 2 Row, Shrouded
- RS庫存編號:
- 690-8903
- 製造零件編號:
- MX34036NF2
- 製造商:
- JAE
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
TWD83.00
(不含稅)
TWD87.15
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 9 件準備從其他地點送貨
- 加上 55 件從 2026年1月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | TWD83.00 |
| 25 - 99 | TWD80.00 |
| 100 + | TWD76.00 |
* 參考價格
- RS庫存編號:
- 690-8903
- 製造零件編號:
- MX34036NF2
- 製造商:
- JAE
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | JAE | |
| Series | MX34 | |
| Product Type | PCB Header | |
| Pitch | 2.2mm | |
| Current | 3A | |
| Number of Contacts | 36 | |
| Housing Material | Glass Filled Syndiotactic Polystyrene | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Row Pitch | 2.2mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 JAE | ||
Series MX34 | ||
Product Type PCB Header | ||
Pitch 2.2mm | ||
Current 3A | ||
Number of Contacts 36 | ||
Housing Material Glass Filled Syndiotactic Polystyrene | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Wire-to-Board | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Termination Type Solder | ||
Row Pitch 2.2mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
MX34 90° Header 2 Row
For MX34 socket housings see typical stock numbers: 690-9852
JAE MX34 Series Automotive Connectors
The MX34 series connectors are compact, non-waterproof board-to-cable connectors, and are developed for automotive use.,The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied
Socket contact with box-type pin header provides a Durable combination to external forces
Contacts are highly resistant to twisting and equipped with a proven double leaf spring
The preset-type retainer needs to be completely inserted into the housing for the connector to be engaged, therefore any incomplete contact insertion is detected
The Lock spring is equipped with a bridge which protects the contact from external load
