Name: HellermannTyton Connectivity HT-POD Series, Angled Cat6 4 Way Angled Adapters Hole Shielded Shield Type
Brand: HellermannTyton Connectivity
SKU: 261-5328
Price: 676 TWD
Availability: InStock

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	HellermannTyton Connectivity
	Mount Type	Hole
	Product Type	Consolidation Box
	LAN Category	Cat6
	Number of Outlets	4
	Shield Type	Shielded
	Sub Type	Angled Adapters
	Entry Angle	Angled
	Number of Ways	4
	Width	62mm
	Depth	51mm
	Material	Polycarbonate
	Height	215mm
	Standards/Approvals	No
	Colour	Black
	Series	HT-POD

	選取全部
	品牌 HellermannTyton Connectivity
	Mount Type Hole
	Product Type Consolidation Box
	LAN Category Cat6
	Number of Outlets 4
	Shield Type Shielded
	Sub Type Angled Adapters
	Entry Angle Angled
	Number of Ways 4
	Width 62mm
	Depth 51mm
	Material Polycarbonate
	Height 215mm
	Standards/Approvals No
	Colour Black
	Series HT-POD

Datasheet - HT-POD-28MM-4P

COO (Country of Origin):: GB

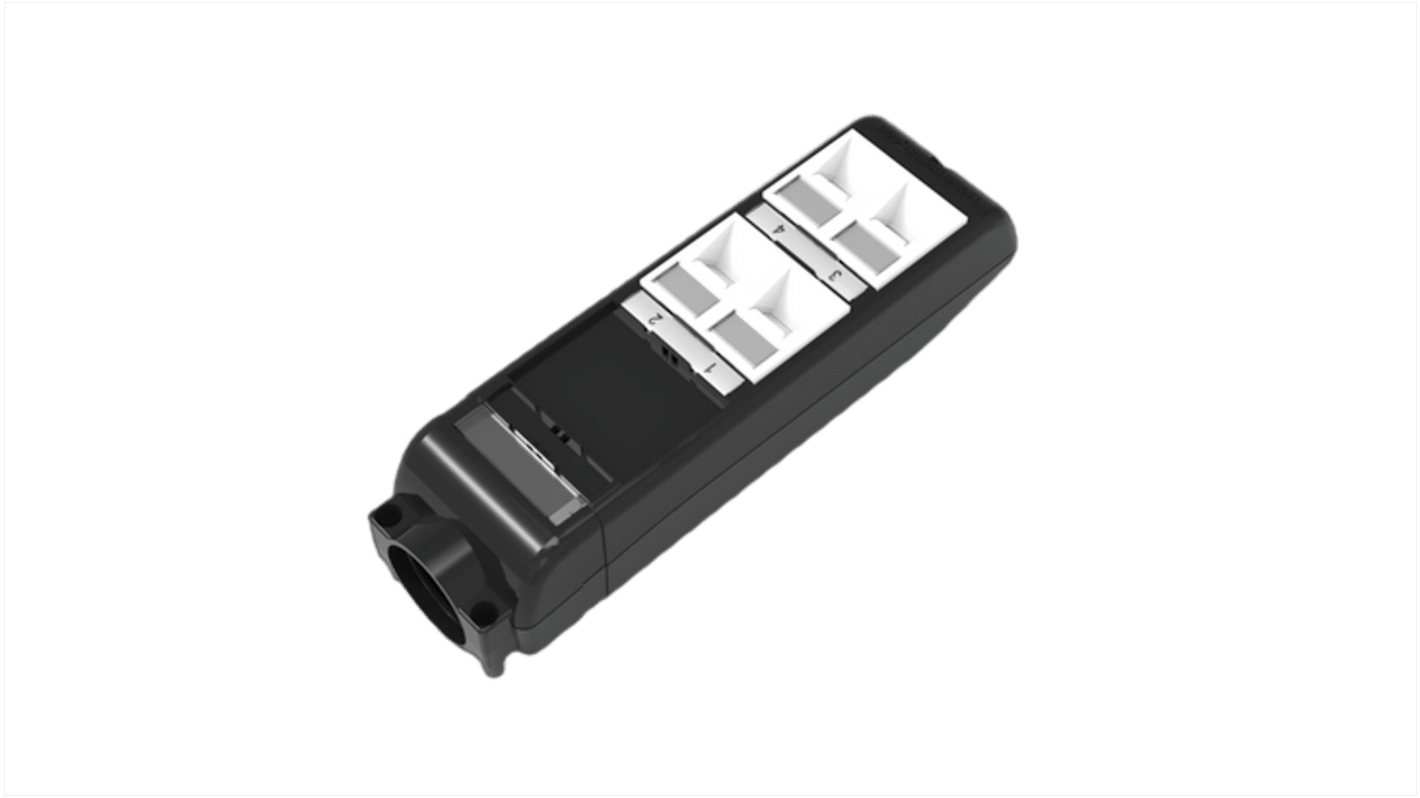

HellermannTyton Connectivity HT-POD Series Consolidation Box, 4 Outlets, Cat6 LAN Category - HT-POD-28MM-4P

This consolidation box is a shielded enclosure designed to organise and terminate Category 6 LAN connections in installations requiring angled cable entry and secure mounting. It provides four protected outlet positions within a robust thermoplastic housing and is intended for installations where shield continuity and a neat, space-efficient routing of patch or horizontal cabling are needed.

Features and Benefits:

• Shielded construction maintains metal-screen continuity for cables
• Angled entry reduces cable stress and simplifies routing
• Four-way configuration supports multiple simultaneous links
• Hole-mount design enables secure fixed attachment to surfaces
• Polycarbonate material offers impact resistance and electrical insulating properties

Applications

• Suitable for small office network consolidation points
• Ideal for data cabinet lateral outlet distribution
• Used with shielded Cat6 patching in commercial buildings
• Can be used for structured cabling in retrofit installations

What mounting method does it use and how does that affect installation flexibility?

It employs a hole-mount arrangement, allowing installers to fasten the enclosure directly to walls or panels using mechanical fixings for a stable, permanent installation.

How does the angled entry influence cable management and connector longevity?

The angled inlet directs cables to a gentler bend radius, reducing mechanical strain on terminations and helping maintain performance of Cat6 links over time.

What materials are used in the enclosure and what operational qualities do they provide?

The body is made from polycarbonate, delivering mechanical durability alongside electrical insulation to protect internal terminations.

How many outlet connections are available and what network role does this support?

There are four outlets, enabling a consolidated local distribution point for up to four distinct Cat6 links without additional adaptors.

HellermannTyton Connectivity HT-POD Series, Angled Cat6 4 Way Angled Adapters Hole Shielded Shield Type
