享受批量購買折扣
額外添加5件可節省17%
查看批量定價選項小計(1 件)*
TWD5,115.00
(不含稅)
TWD5,370.75
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 8 件準備從其他地點送貨
- 加上 6 件從 2026年12月10日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 1 - 4 | TWD5,115.00 | - |
| 5 + | TWD4,210.00 | 17% |
* 參考價格
- RS庫存編號:
- 725-5535
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | DOL Starter | |
| Power Rating | 11kW | |
| Sub Type | DOL | |
| Number of Phases | 3 | |
| Current Rating | 17A, 23A | |
| IP Rating | IP65 | |
| Mount Type | Surface | |
| Number of Poles | 3 | |
| Overall Length | 225mm | |
| Maximum Voltage | 230V ac | |
| Overall Width | 110mm | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS Compliant | |
| Hazardous Area Certification | No | |
| Overall Depth | 148mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type DOL Starter | ||
Power Rating 11kW | ||
Sub Type DOL | ||
Number of Phases 3 | ||
Current Rating 17A, 23A | ||
IP Rating IP65 | ||
Mount Type Surface | ||
Number of Poles 3 | ||
Overall Length 225mm | ||
Maximum Voltage 230V ac | ||
Overall Width 110mm | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS Compliant | ||
Hazardous Area Certification No | ||
Overall Depth 148mm | ||
- COO (Country of Origin):
- IT

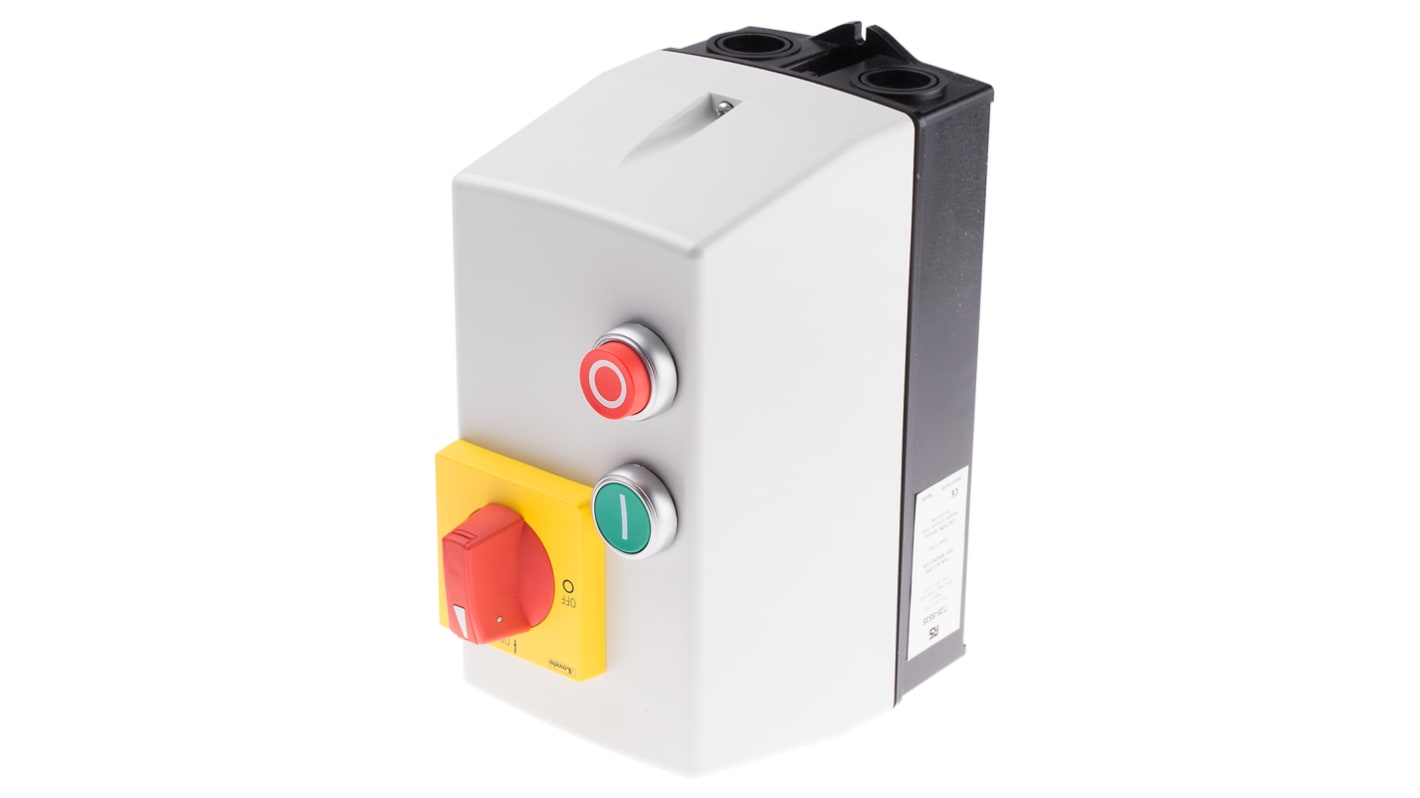

Enclosed Direct-on-line Motor Starters
A range of enclosed Direct-On-Line motor starters which combine high performance and low cost. The range includes options with and without isolator and support for motors from 5.5 kW to 11 kW.
Moulded plastic case providing IP65 ingress protection
Compliant with standards IEC/EN 60947-1 and IEC/EN 60947-4-1
Operating temperature range -25°C → +60°C
Range available with and without isolator
Options without isolator have space to mount additional 17.5mm wide module - such as a timer, level control or monitoring relay
Note
Each starter is supplied WITHOUT an overload, therefore an appropriate overload must be selected from the RF38 overload series - for example stock no. 685-1309 - to match the motor FLC.
