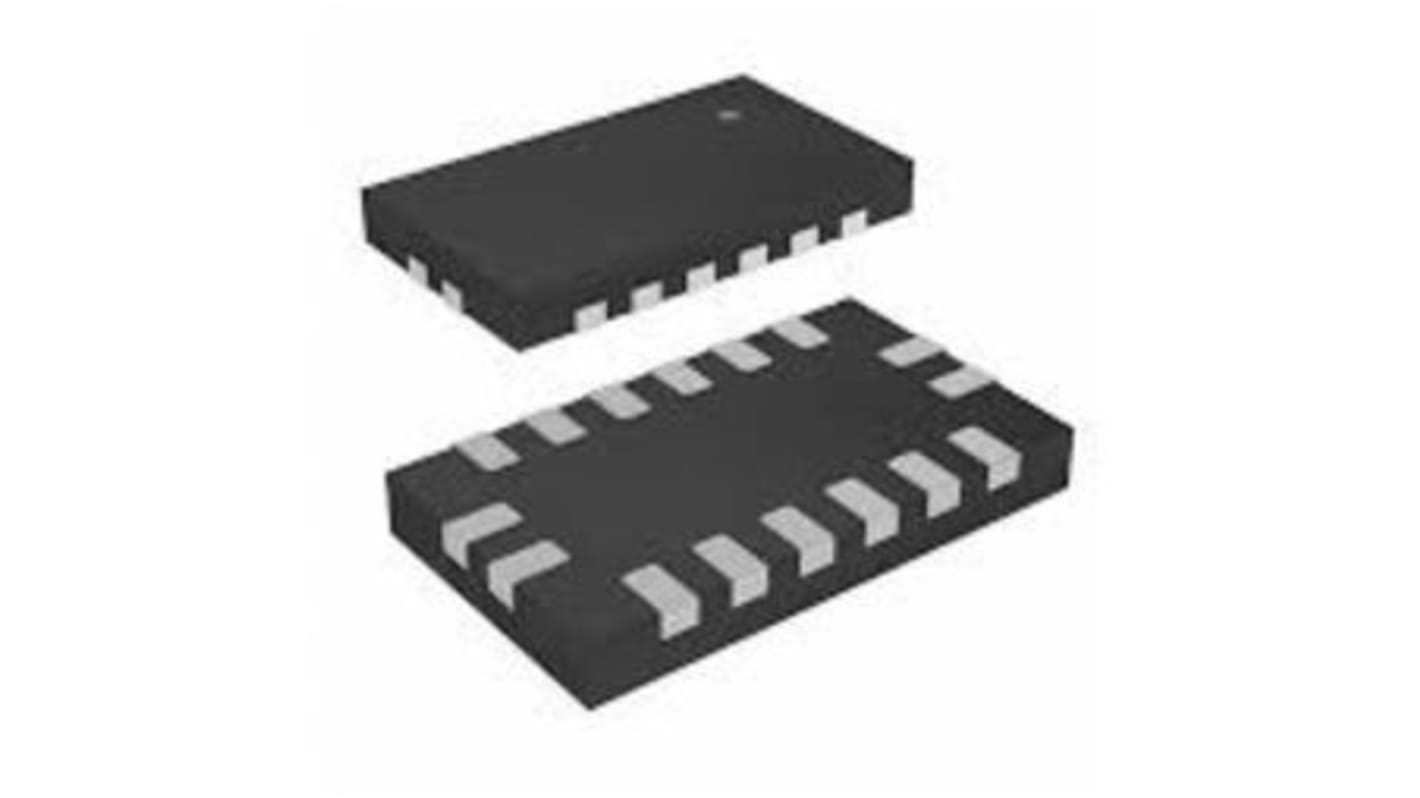

STMicroelectronics 2-Axis Motion Sensor 1.71 V 3.6 V, I2C/SPI, LGA16, 16-Pin
- RS庫存編號:
- 204-9945
- 製造零件編號:
- IIS2ICLXTR
- 製造商:
- STMicroelectronics
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 3000 件）*
TWD2,717,700.00
(不含稅)
TWD2,853,600.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年9月30日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3000 - 12000 | TWD905.90 | TWD2,717,700.00 |
| 15000 + | TWD887.80 | TWD2,663,400.00 |
* 參考價格
- RS庫存編號:
- 204-9945
- 製造零件編號:
- IIS2ICLXTR
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Sensor Type | Inclinometer Sensors | |
| Product Type | Motion Sensor | |
| Number of Axis | 2 | |
| Technology | Digital | |
| Interface Type | I2C/SPI | |
| Minimum Supply Voltage | 1.71V | |
| Package Type | LGA16 | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 0.122mg/LSB | |
| Pin Count | 16 | |
| Maximum Operating Temperature | 85°C | |
| Series | IIS2ICLX | |
| Standards/Approvals | RoHS | |
| Height | 1.7mm | |
| Length | 5mm | |
| Width | 5 mm | |
| Supply Current | 4.2μA | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Sensor Type Inclinometer Sensors | ||
Product Type Motion Sensor | ||
Number of Axis 2 | ||
Technology Digital | ||
Interface Type I2C/SPI | ||
Minimum Supply Voltage 1.71V | ||
Package Type LGA16 | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 0.122mg/LSB | ||
Pin Count 16 | ||
Maximum Operating Temperature 85°C | ||
Series IIS2ICLX | ||
Standards/Approvals RoHS | ||
Height 1.7mm | ||
Length 5mm | ||
Width 5 mm | ||
Supply Current 4.2μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MT
The STMicroelectronics IIS2ICLX is a high-accuracy (ultra-low noise, high stability and repeatability) and low-power two-axis linear accelerometer with digital output. It has a selectable full scale of ±0.5/±1/±2/±3 g and is capable of providing the measured accelerations to the application over an I²C or SPI digital interface.
2-axis linear accelerometer
Selectable full scale: ±0.5/±1/±2/±3 g
Ultra-low noise performance: 15 μg/vHz
Superior stability over temperature (<0.075 mg/°C) and repeatability
Embedded compensation for high stability over temperature
I²C/SPI digital output interface
