選取全部	屬性	值
	品牌	onsemi
	Channel Type	P
	Maximum Continuous Drain Current	24 A
	Maximum Drain Source Voltage	20 V
	Package Type	TO-220
	Mounting Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance	80 mΩ
	Channel Mode	Enhancement
	Minimum Gate Threshold Voltage	0.4V
	Maximum Power Dissipation	60 W
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-8 V, +8 V
	Typical Gate Charge @ Vgs	25 nC @ 5 V
	Number of Elements per Chip	1
	Maximum Operating Temperature	+175 °C
	Transistor Material	Si
	Width	4.7mm
	Length	10.67mm
	Height	16.3mm
	Minimum Operating Temperature	-65 °C

	選取全部
	品牌 onsemi
	Channel Type P
	Maximum Continuous Drain Current 24 A
	Maximum Drain Source Voltage 20 V
	Package Type TO-220
	Mounting Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance 80 mΩ
	Channel Mode Enhancement
	Minimum Gate Threshold Voltage 0.4V
	Maximum Power Dissipation 60 W
	Transistor Configuration Single
	Maximum Gate Source Voltage -8 V, +8 V
	Typical Gate Charge @ Vgs 25 nC @ 5 V
	Number of Elements per Chip 1
	Maximum Operating Temperature +175 °C
	Transistor Material Si
	Width 4.7mm
	Length 10.67mm
	Height 16.3mm
	Minimum Operating Temperature -65 °C

Enhancement Mode P-Channel MOSFET, ON Semiconductor

ON Semiconductors range of P-Channel MOSFETS are produced using ON Semi’s proprietary, high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance to provide a rugged and reliable performance for fast switching.

Features and Benefits:

• Voltage controlled P-Channel small signal switch
• High-Density cell design
• High saturation current
• Superior switching
• Great rugged and reliable performance
• DMOS technology

Applications:

• Load Switching
• DC/DC converter
• Battery protection
• Power management control
• DC motor control

MOSFET Transistors, ON Semi

ON Semi offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V) types. The advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.
ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.

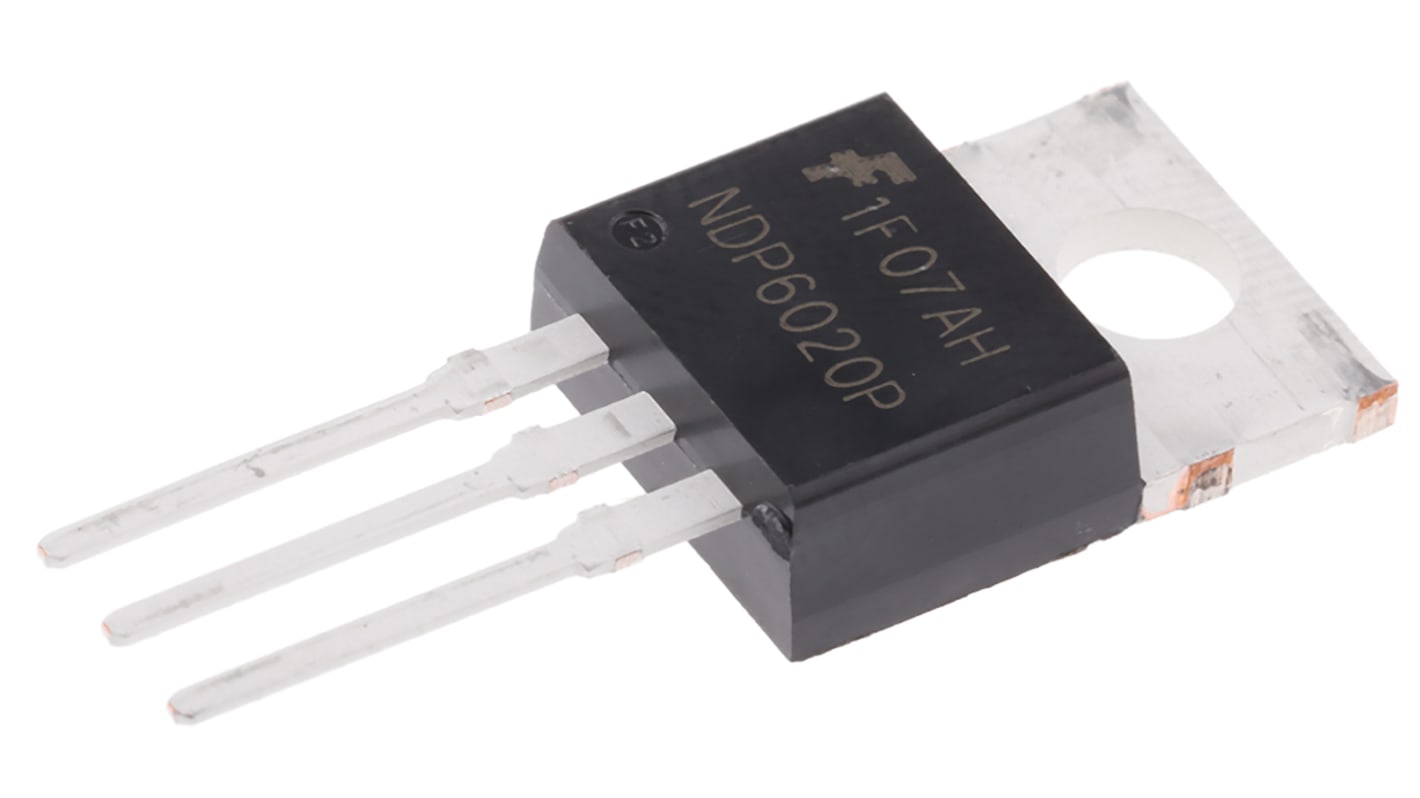

onsemi P-Channel MOSFET, 24 A, 20 V, 3-Pin TO-220 NDP6020P
