Infineon CoolMOS C3 Type N-Channel MOSFET, 20.7 A, 650 V Enhancement, 3-Pin TO-247 SPW20N60C3FKSA1

RS庫存編號:: 462-3449
製造零件編號:: SPW20N60C3FKSA1
製造商:: Infineon

Infineon CoolMOS C3 Type N-Channel MOSFET, 20.7 A, 650 V Enhancement, 3-Pin TO-247 SPW20N60C3FKSA1

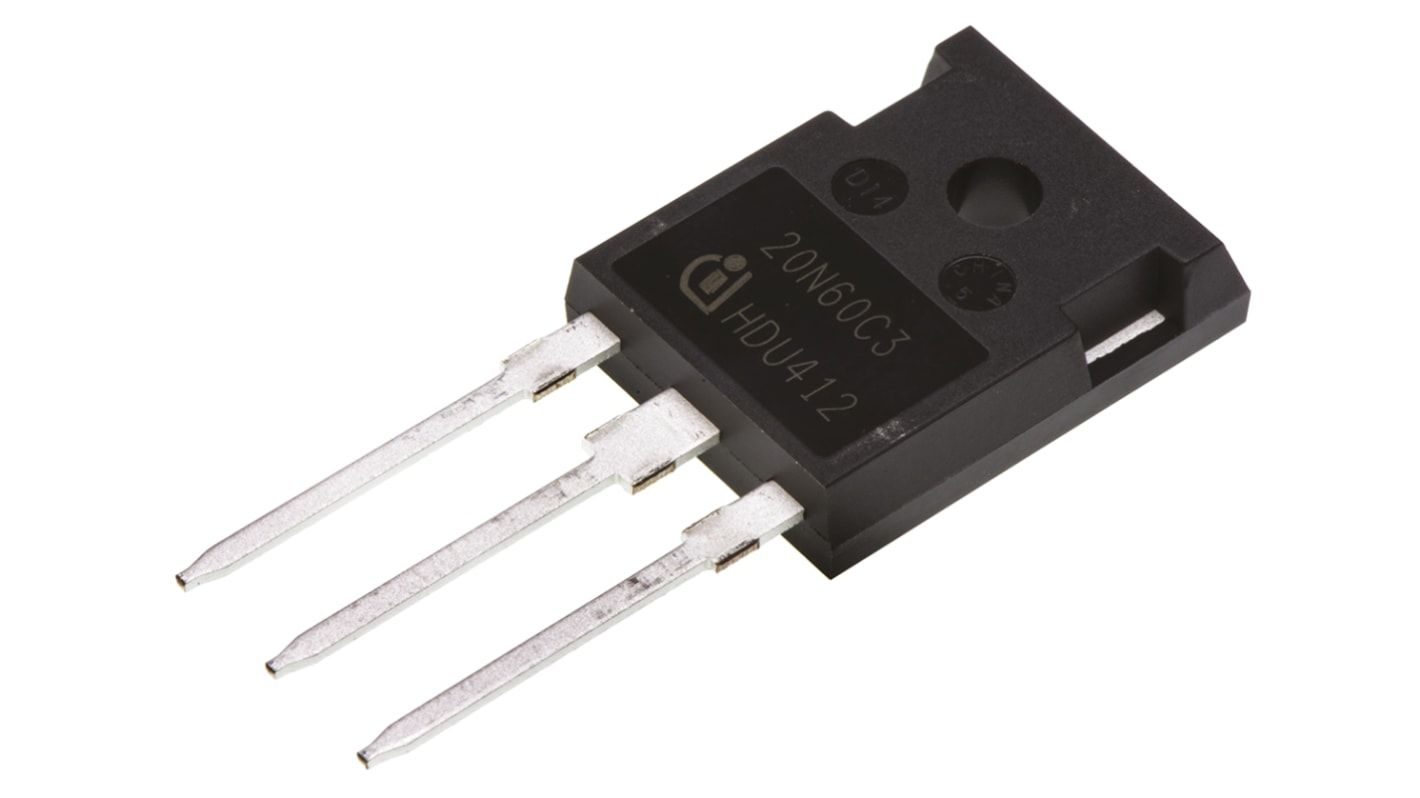

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 件）*

TWD151.00

(不含稅)

TWD158.55

訂單超過 $1,300.00 免費送貨

有庫存

28 件準備從其他地點送貨
加上 247 件從 2026年1月07日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 7	TWD151.00
8 - 39	TWD116.00
40 +	TWD114.00

* 參考價格

RS庫存編號:: 462-3449
製造零件編號:: SPW20N60C3FKSA1
製造商:: Infineon

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	20.7A
	Maximum Drain Source Voltage Vds	650V
	Series	CoolMOS C3
	Package Type	TO-247
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	190mΩ
	Channel Mode	Enhancement
	Maximum Power Dissipation Pd	208W
	Maximum Gate Source Voltage Vgs	20 V
	Typical Gate Charge Qg @ Vgs	87nC
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	150°C
	Standards/Approvals	No
	Length	15.9mm
	Height	20.95mm
	Width	5.3 mm
	Automotive Standard	AEC-Q101

	選取全部
	品牌 Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 20.7A
	Maximum Drain Source Voltage Vds 650V
	Series CoolMOS C3
	Package Type TO-247
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 190mΩ
	Channel Mode Enhancement
	Maximum Power Dissipation Pd 208W
	Maximum Gate Source Voltage Vgs 20 V
	Typical Gate Charge Qg @ Vgs 87nC
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 150°C
	Standards/Approvals No
	Length 15.9mm
	Height 20.95mm
	Width 5.3 mm
	Automotive Standard AEC-Q101

Infineon CoolMOS™ C3 Series MOSFET, 21A Maximum Continuous Drain Current, 208W Maximum Power Dissipation - SPW20N60C3FKSA1

This MOSFET is vital for numerous electronic applications, engineered to enhance efficiency across various tasks. It performs well in high-power environments, serving the automation, electrical, and mechanical sectors. With durable specifications, it ensures stable performance while managing substantial power loads and optimising energy usage.

Features & Benefits

• N-channel configuration enhances conduction capabilities

• Maximum continuous drain current of 21A supports intensive applications

• High voltage rating of 650V provides reliability in challenging conditions

• Low gate charge facilitates efficient switching, reducing energy losses

• Excellent thermal performance allows operation at elevated temperatures

• Designed for through-hole mounting, simplifying assembly procedures

Applications

• Power supply regulation and management in industrial systems

• Motor control systems for efficient power delivery

• Utilised in DC-DC converters for high voltage

• Integrated into renewable energy systems for effective energy conversion

• Employed in power electronics for improved device performance

What is the maximum operating temperature for this component?

It operates efficiently at a maximum temperature of +150°C, suited for high-temperature environments without compromising performance.

How does the low gate charge benefit device operation?

A low gate charge enables faster switching speeds, significantly reducing switching losses and enhancing overall efficiency during operation.

Can this MOSFET handle repeated high-temperature cycling?

Yes, it is designed to maintain its electrical characteristics over numerous thermal cycles, ensuring longevity in variable temperature environments.

Is there a specific mounting style recommended for this device?

This device is intended for through-hole mounting, facilitating easier PCB assembly and providing stable mechanical connections.

What safety precautions should be taken during installation?

Ensure the gate-source voltage does not exceed specified limits (-20V to +20V) to prevent device damage, and follow standard ESD precautions to avoid static damage.
