Infineon IPD068N10N3 G Type N-Channel MOSFET, 90 A, 100 V Enhancement, 5-Pin TO-252 IPD068N10N3GATMA1

RS庫存編號:: 171-1939
製造零件編號:: IPD068N10N3GATMA1
製造商:: Infineon

Infineon IPD068N10N3 G Type N-Channel MOSFET, 90 A, 100 V Enhancement, 5-Pin TO-252 IPD068N10N3GATMA1

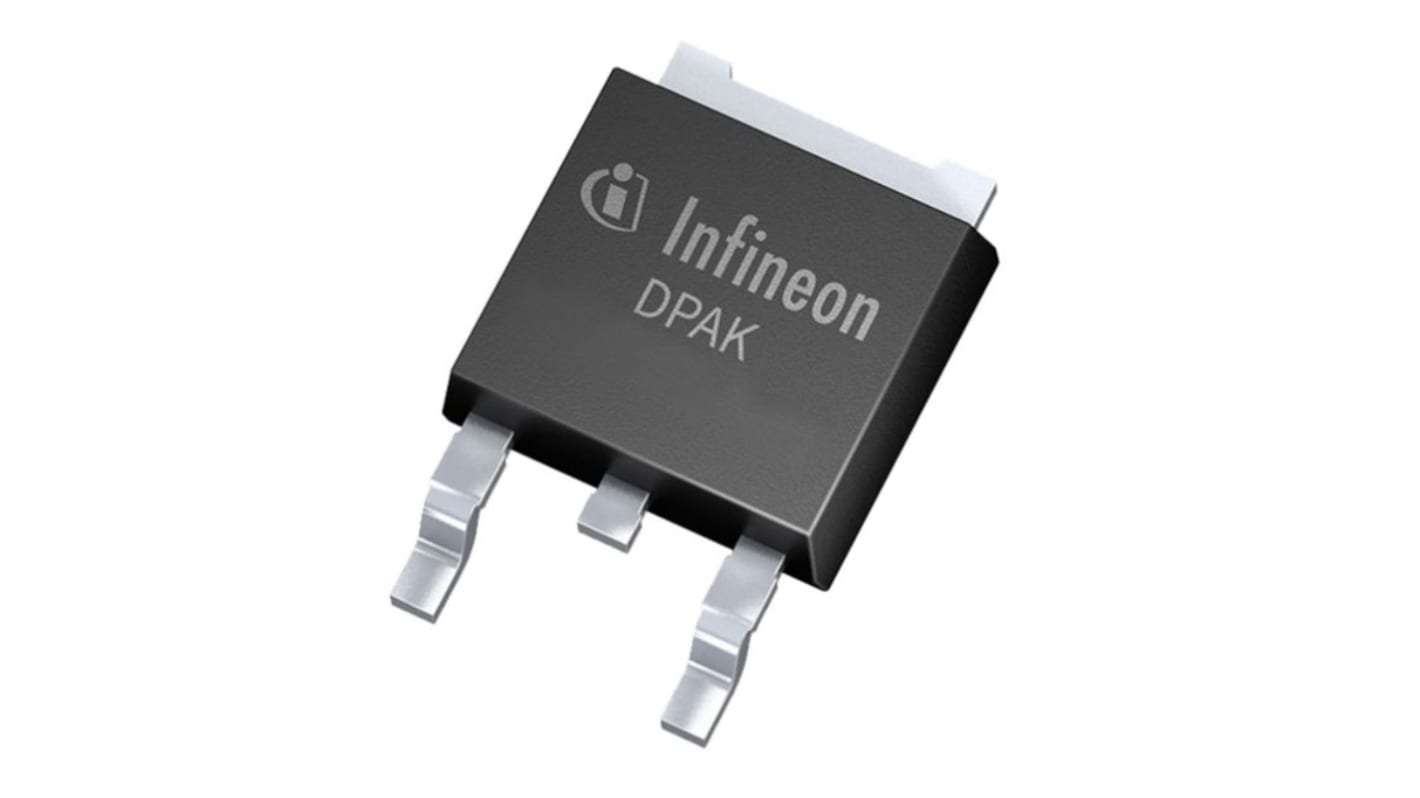

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 包，共 10 件）*

TWD335.00

(不含稅)

TWD351.80

訂單超過 $1,300.00 免費送貨

有庫存

加上 17,840 件從 2026年1月05日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
10 - 620	TWD33.50	TWD335.00
630 - 1240	TWD32.60	TWD326.00
1250 +	TWD32.00	TWD320.00

* 參考價格

RS庫存編號:: 171-1939
製造零件編號:: IPD068N10N3GATMA1
製造商:: Infineon

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	90A
	Maximum Drain Source Voltage Vds	100V
	Series	IPD068N10N3 G
	Package Type	TO-252
	Mount Type	Surface
	Pin Count	5
	Maximum Drain Source Resistance Rds	12.3mΩ
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	51nC
	Maximum Power Dissipation Pd	150W
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	20 V
	Forward Voltage Vf	1V
	Maximum Operating Temperature	175°C
	Standards/Approvals	No
	Height	2.41mm
	Width	7.47 mm
	Length	6.73mm
	Automotive Standard	No

	選取全部
	品牌 Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 90A
	Maximum Drain Source Voltage Vds 100V
	Series IPD068N10N3 G
	Package Type TO-252
	Mount Type Surface
	Pin Count 5
	Maximum Drain Source Resistance Rds 12.3mΩ
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 51nC
	Maximum Power Dissipation Pd 150W
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 20 V
	Forward Voltage Vf 1V
	Maximum Operating Temperature 175°C
	Standards/Approvals No
	Height 2.41mm
	Width 7.47 mm
	Length 6.73mm
	Automotive Standard No

不適用

Infineon MOSFET

The Infineon PG-TO-252-3 surface mount N-channel MOSFET is a new age product with a drain-source resistance of 6.8mohm at a gate-source voltage of 10V. The MOSFET has continuous drain current of 90A. It has a maximum gate-source voltage of 20V and drain-source voltage of 100V. It has a maximum power dissipation of 71W. The MOSFET has a minimum and a maximum driving voltage of 6V and 10V respectively. It has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits

• Easy to design products

• Environmentally friendly

• Excellent gate charge x RDS (on) product (FOM)

• Excellent switching performance

• Halogen free

• Highest power density

• Increased efficiency

• Lead (Pb) free plating

• Less paralleling required

• Operating temperature ranges between -55°C and 175°C

• Smallest board space consumption

• Very low Qg and Qgd

• World's lowest RDS (on)

Applications

• Class D audio amplifiers

• Isolated DC-DC converters (telecom and data communication systems

• Motor control for 48V-80V systems (domestic vehicles, power tools, trucks)

• O-ring switches and circuit breakers in 48V systems

• Synchronous rectifier

Certifications

• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007

• IEC61249-2-21

• JEDEC
