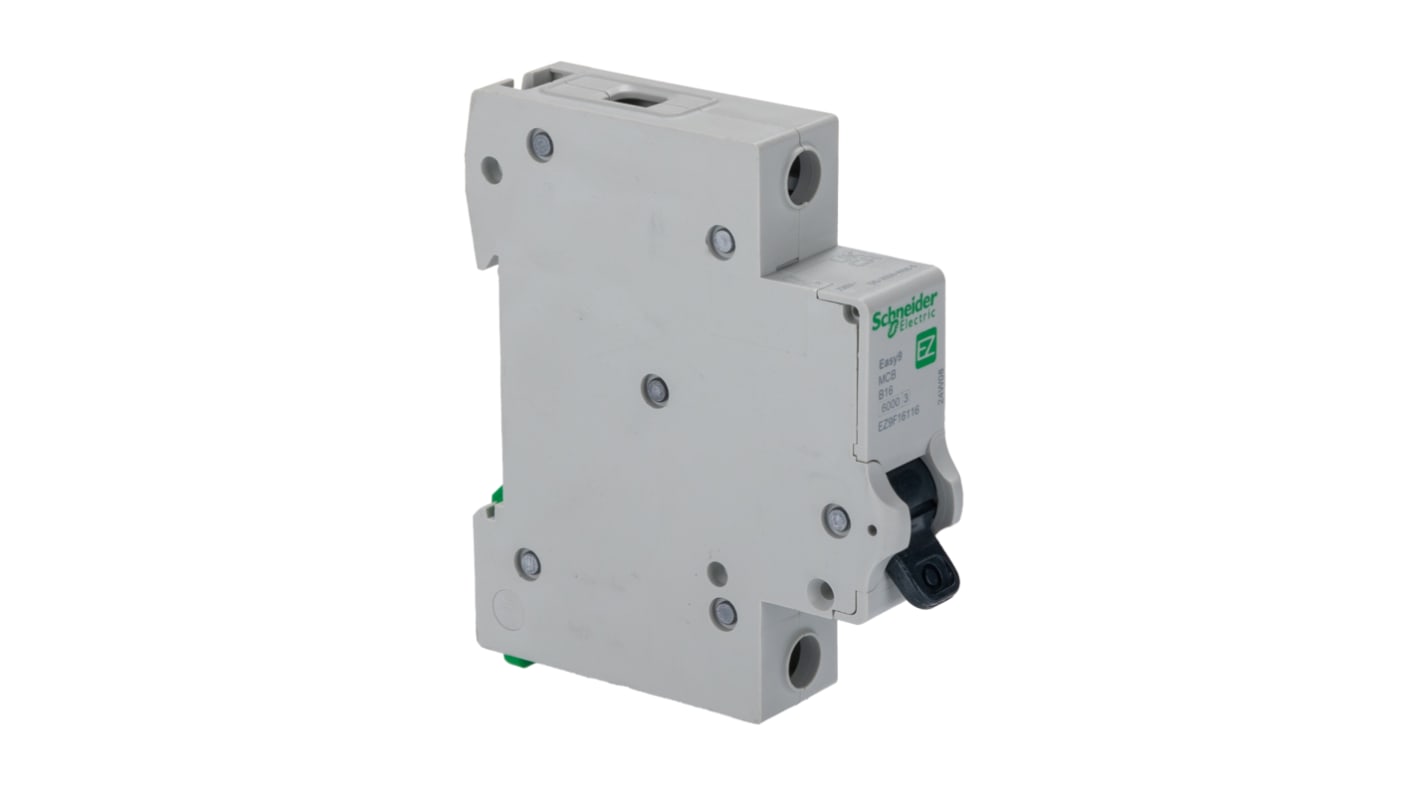

Schneider Electric Easy9 EZ9 Miniature Circuit Breaker, 1-Pole, 16 A, Type B, 230 V ac AC, 6 kA Breaking Capacity

RS庫存編號:: 850-8603
製造零件編號:: EZ9F16116
製造商:: Schneider Electric

Schneider Electric Easy9 EZ9 Miniature Circuit Breaker, 1-Pole, 16 A, Type B, 230 V ac AC, 6 kA Breaking Capacity

小計（1 件）*

TWD157.00

(不含稅)

TWD164.85

訂單超過 $1,300.00 免費送貨

有庫存

19 件準備發貨
加上 146 件準備從其他倉庫發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD157.00

* 參考價格

RS庫存編號:: 850-8603
製造零件編號:: EZ9F16116
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Product Type	Miniature Circuit Breaker
	Number of Poles	1
	Current Rating	16 A
	Tripping Characteristics	Type B
	Rated AC Voltage	230 V ac
	Breaking Capacity	6kA
	Mount Type	DIN Rail
	Range	Easy9
	Series	EZ9
	Terminal Type	Tunnel
	IP Rating	IP20
	Depth	72mm
	Width	18 mm
	Standards/Approvals	BS EN 60898-1, CE
	Height	82mm
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Toggle Switch

	選取全部
	品牌 Schneider Electric
	Product Type Miniature Circuit Breaker
	Number of Poles 1
	Current Rating 16 A
	Tripping Characteristics Type B
	Rated AC Voltage 230 V ac
	Breaking Capacity 6kA
	Mount Type DIN Rail
	Range Easy9
	Series EZ9
	Terminal Type Tunnel
	IP Rating IP20
	Depth 72mm
	Width 18 mm
	Standards/Approvals BS EN 60898-1, CE
	Height 82mm
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Toggle Switch

登入下載 CAD 模型

不適用

COO (Country of Origin):: IN

Schneider Electric MCB, For AC Networks, 6kA Breaking Capacity - Easy9 Series - EZ9F16116

If power spikes are tripping you up, turn to this MCB from Schneider Electric. It automatically cuts off your electrical supply if there's a surge, which helps to protect equipment against damage. The unit also acts as a safety barrier by reducing the chance of power spikes giving you a shock. For snappy installation, simply clip it onto a DIN rail. A visible indicator on its front panel makes it easy to see if the device has tripped. Thanks to its breaking capacity of 6kA, you can count on this MCB to swiftly block the path of powerful currents.

Features & Benefits

• IP20-rated enclosure is protected against finger touch and tools larger than 12mm

• Product information is clearly visible, no matter what position the toggle is in

• Electrical endurance of up to 4,000 cycles for longevity

• Light weight of 100g puts minimal strain on your setup

Applications

• Power distribution centres

• Automotive manufacturing

• Oil and gas industries

• Aerospace technology

Is this MCB environmentally-friendly?

Yes, the miniature breaker is end-of-life-optimised, which allows for the recovery of some of its materials. This reduces the amount of waste that ends up in landfill.

Easy EZ9 Series MCB's, RCBO's, RCCB's and Accessories

The Easy9 product range is an affordable circuit protection solution that you can depend on. Schneider Electric work closely with worldwide electricians to make sure they bring you an excellent choice of user-friendly products designed to better support your business needs.

High Quality (100% designed by Schneider Electric)

User Friendly Design

Full Compliance with International IEC Standards 3rd Party Certification

Robust and Reliable Circuit Protection

Range Consists of Insulated Enclosures, Metal Enclosures, Switch-Disconnectors, RCCB's, MCB's, RCBO's and Accessories
