Telemecanique Sensors OsiSense XC Series Plunger Limit Switch Contact Block, 1 NO/1 NC, IP66, IP67, Plastic Housing,

RS庫存編號:: 221-2929
製造零件編號:: XE2NP2161
製造商:: Telemecanique Sensors

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch Contact Block, 1 NO/1 NC, IP66, IP67, Plastic Housing,

小計（1 件）*

TWD3,338.00

(不含稅)

TWD3,504.90

訂單超過 $1,300.00 免費送貨

有庫存

67 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD3,338.00

* 參考價格

RS庫存編號:: 221-2929
製造零件編號:: XE2NP2161
製造商:: Telemecanique Sensors

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Telemecanique Sensors
	Actuator Type	Plunger
	Product Type	Limit Switch Contact Block
	IP Rating	IP66, IP67
	Contact Configuration	1 NO/1 NC
	Housing Material	Plastic
	Contact Type	Slow Break
	Switching Current	3A
	Terminal Type	Screw Clamp
	Series	OsiSense XC
	Switching DC Voltage	250V dc
	Switching AC Voltage	240V ac
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	80°C
	Width	40mm
	Standards/Approvals	IEC 60255-7 Category 3, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60664, EN/IEC 60947-5-1 appendix A
	Length	84mm
	Depth	40mm
	Hazardous Area Certification	No
	Mechanical Life	10000000Cycles
	Mounting Orientation	Side
	Conduit Entry	20 mm

	選取全部
	品牌 Telemecanique Sensors
	Actuator Type Plunger
	Product Type Limit Switch Contact Block
	IP Rating IP66, IP67
	Contact Configuration 1 NO/1 NC
	Housing Material Plastic
	Contact Type Slow Break
	Switching Current 3A
	Terminal Type Screw Clamp
	Series OsiSense XC
	Switching DC Voltage 250V dc
	Switching AC Voltage 240V ac
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 80°C
	Width 40mm
	Standards/Approvals IEC 60255-7 Category 3, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60664, EN/IEC 60947-5-1 appendix A
	Length 84mm
	Depth 40mm
	Hazardous Area Certification No
	Mechanical Life 10000000Cycles
	Mounting Orientation Side
	Conduit Entry 20 mm

COO (Country of Origin):: ID

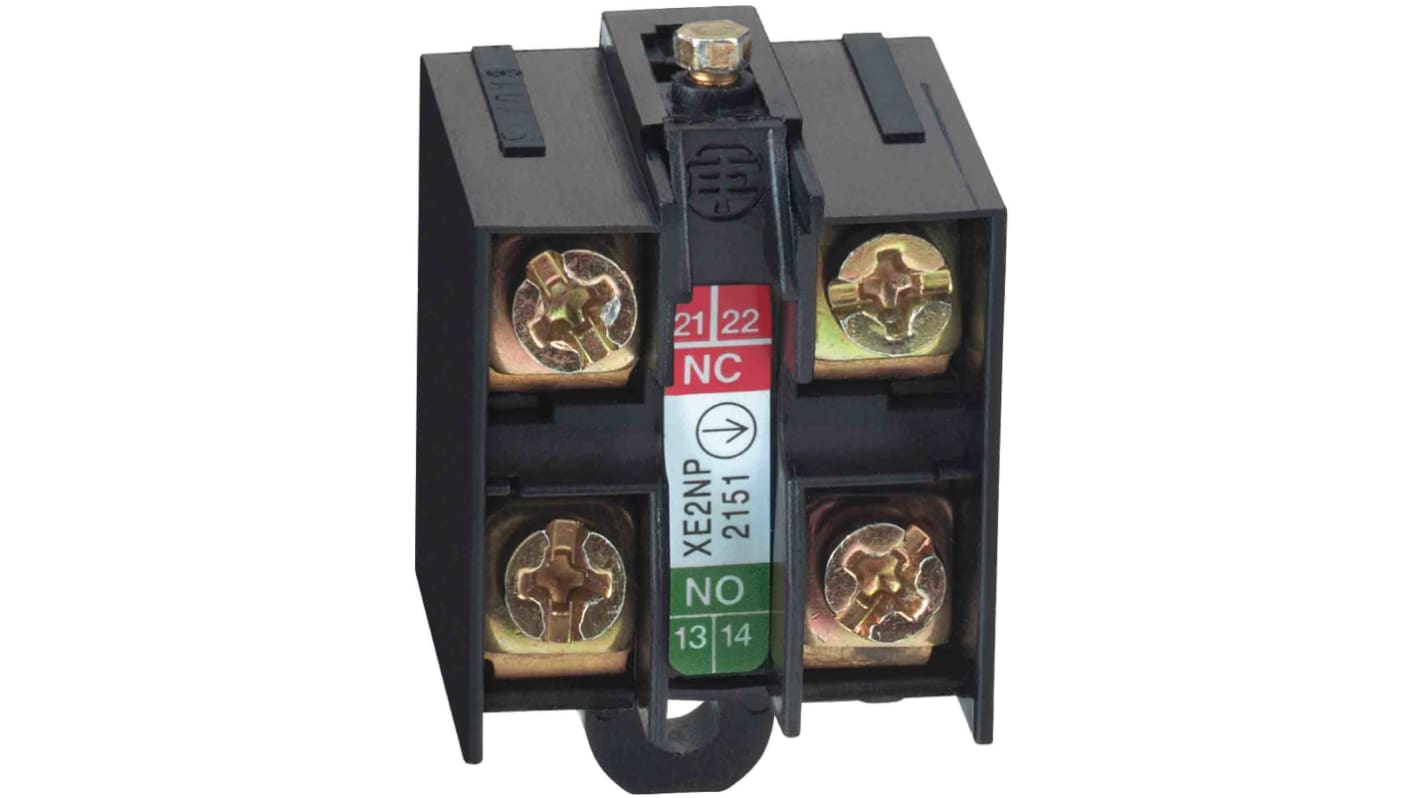

Telemecanique Sensors Osizense XC Series Limit Switch Contact Block, IP66/IP67, 1 NO/1 NC Contact Configuration - XE2NP2161

This limit switch contact Block is a Compact electrical actuator accessory designed to provide controlled switching in industrial automation and machinery. It operates as a plunger-actuated contact element suitable for side mounting and offers a sealed enclosure for use in harsh environments. The unit is intended for integration into control circuits where discrete open/closed signalling and mechanical endurance are required.

Features and Benefits:

• 1 NO and 1 NC contacts for versatile circuit configurations
• Slow-break contact action reduces arcing and contact wear
• Screw clamp terminals for secure conductor connections
• Rated for 250V DC switching at 3 A to handle DC control loads
• Mechanical endurance up to 10 000 000 cycles for long service life
• IP66 and IP67 protection levels for wet and dusty locations

Applications

• Suitable for actuator position sensing in conveyor systems
• Ideal for machine safety interlocks in manufacturing cells
• Used with panel-mounted indicators requiring discrete switching
• Can be used for door and guard monitoring in automation lines

What Terminal arrangement is provided for wiring?

Terminals employ screw-clamp connections that accept standard conductors and offer firm clamping for reliable electrical contact.

How is the unit mounted within assemblies?

It is designed for side-orientation mounting to fit alongside actuators or within confined switch housings.

What temperature conditions can it endure during operation?

The device functions across a range from -10 °C up to 80 °C, suitable for most indoor industrial environments.

Which conduit entry size is available for cable routing?

A 20mm conduit entry accommodates common conduit and gland sizes used in control cabinets.

What material is the housing constructed from?

The enclosure is formed from a Durable plastic material to provide electrical insulation and weight savings.
